SKU: 890003780

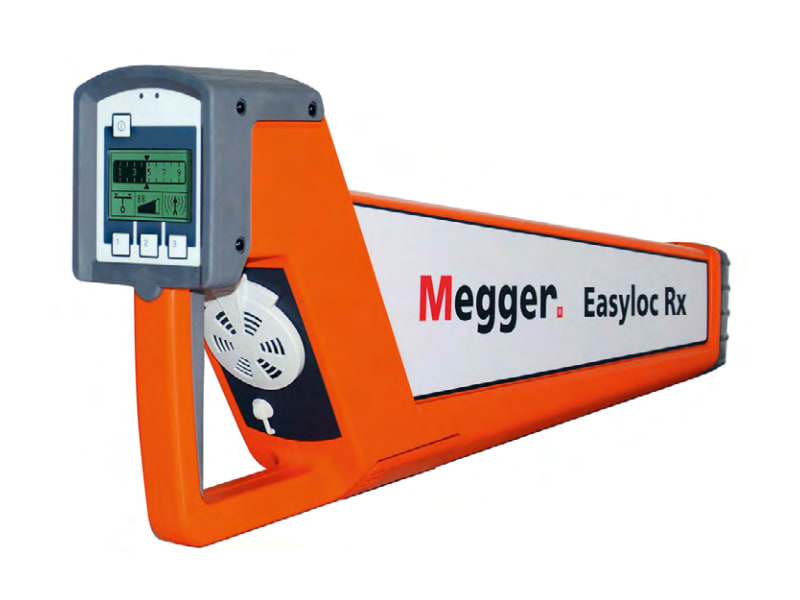

Megger Easyloc RX Standard receiver — 33 kHz active-mode cable locator with semi-automatic sensitivity control and push-button depth measurement (0.3–5 m for cables, 0.3–7 m for sondes). Pairs with the Easyloc TX transmitter (P/N 890005586) or compatible 33 kHz sondes (e.g. MLS 55-3 / 810696). IP56 (IP67 to battery case), >40 hr operation on 10× AA cells. Ships with English user manual.
List price. Volume pricing available.
Receiver Set 50 Hz/R/33 kHz with Depth Measurement
The Easyloc is fast and simple to operate, with features designed to avoid potentially dangerous power cables and other services as efficiently as possible. The Easyloc receiver shows the signal level received and marks the maximum with a marker. This means operators work with both an audio signal and visual confirmation at all times. Depth measurement is possible at the push of a button, even when using the power mode, but only with Easyloc Standard. Easyloc is suitable for water, rail, gas, power, highways and telecommunication utilities, as well as contractors, ground-works, building, local authorities, civil engineering, street lighting and fencing, gardening and landscaping companies.
The Megger Easyloc Rx Standard # 890003780 is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681This product is part of a family with 2 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
1015109 | Request Quote | View Details → |
890008854 | Request Quote | View Details → |
Accessories, replacement sensors, and parts for this product family.
| Model | Price | |
|---|---|---|
2010176 | Request Quote | View Details → |
890005586 | Request Quote | View Details → |
890003780Current | Request Quote | Viewing |
890008650 | Request Quote | View Details → |
AccuTrace transmitter/receiver pair for tracing buried pipes and cables. Transmitter applies a low-frequency signal to the cable; receiver tracks the signal above ground to follow the route and estimate burial depth. For de-energized cables and pipes; pairs with the 656626 ring clamp for inductive coupling on cables that cannot be opened for direct connection.
Battery 9.6V NiMH 1.5AH (X8)
CFL510G Time Domain Reflectometer
Compact dual-channel time domain reflectometer for locating high- and low-impedance faults on paired metallic telecom cables. 0.1 m resolution, up to 20 km range, velocity factor 0.2–0.99, five output impedances (25–125 Ω) with auto-match. Xpert mode auto-positions the cursor on fault events; stores up to 100 traces. IP54 ingress protection, CAT IV 150 V / CAT III 300 V; ships with TraceXpert PC software.
