SKU: 1015109

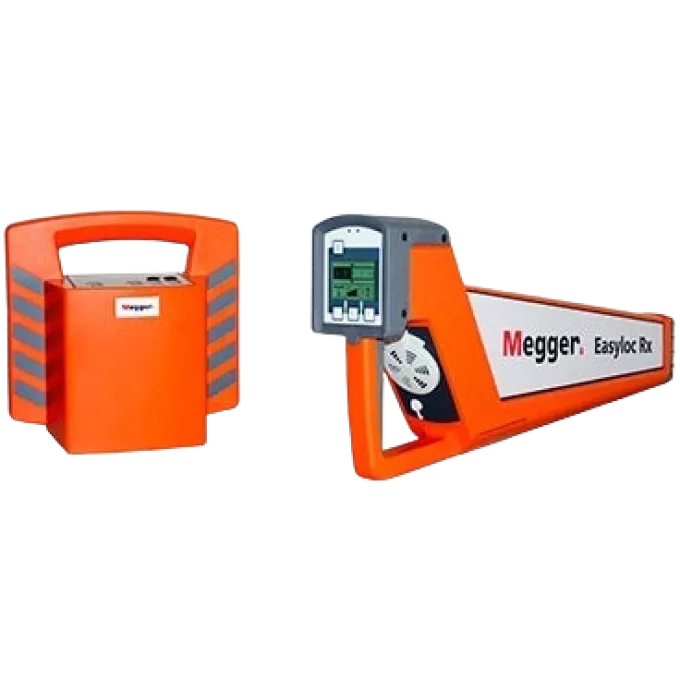

Megger Easyloc Standard System — complete cable-location kit with the Easyloc RX Standard receiver and Easyloc TX transmitter. 33 kHz active mode plus passive radio (15–23 kHz) and power (50–250 Hz) frequencies for tracing cable runs and pipe networks. Push-button depth measurement: 0.3–5 m for cables, 0.3–7 m for sondes. Includes grounding set, ground stake, carry bag, and English user manual. IP56 receiver, IP54 transmitter, >40 hr battery operation.
List price. Volume pricing available.
Easyloc Standard System — Cable Location Kit.
The Megger Easyloc Standard is a fast, simple-to-operate utility-locating system designed to detect and trace cable runs and pipe networks ahead of excavation work. It pairs the Easyloc RX Standard receiver with the Easyloc TX transmitter to give operators both audio signal and visual confirmation of buried services at all times — minimizing the risk of striking power cables or other utilities.
Active-mode tracing operates at 33 kHz with selectable 0.1 W or 0.5 W transmitter power (continuous or pulsed). Passive-mode detection covers radio frequencies (15–23 kHz) and power frequencies (50–250 Hz) so cables radiating from in-service distribution can be located without a transmitter at all. Push-button depth measurement is available even in passive mode: 0.3–5 m for energized cables, 0.3–7 m for sondes such as the Megger MLS 55-3.
A semi-automatic sensitivity control simplifies operation in noisy electromagnetic environments, and the receiver's big backlit display walks operators through the menu structure. The mains-voltage-proof transmitter output means no separating filter is required when injecting signal directly onto live cables (use the optional Easyclamp 100 mm transmitter clamp, P/N 2010176, for non-intrusive coupling without breaking power).
Suitable for water, rail, gas, power, highways, and telecommunication utilities — plus contractors, groundworks, building, civil engineering, street lighting, and landscaping companies. The complete sales-set bundle (P/N 1015109) ships with the RX Standard receiver, TX transmitter, grounding set, ground stake, carry bag, and English-language user manual.
Receiver: 10× AA cells, >40 hr operation, IP56 (IP67 to bottom of battery case), 2.5 kg, –20 °C to +55 °C operating range. Transmitter: 6× D cells, >40 hr operation, IP54, 2.6 kg.
The Megger Easyloc-S Cable Locator (US Standard Sales Set) # 1015109 is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681This product is part of a family with 2 models. Select a model below to view details.
