SKU: 230951
List price. Volume pricing available.
From the initial weighment on the scale to the final numeric value on the indicator, efficient communication is key to the success of the entire operation. Whether it’s overhead, livestock, tank, or heavy capacity weighing, once your traditional conduit is damaged or needs to be replaced, communication is halted and so is your operation. The MSI-7000 and 7001 TranSend not only solves issues resulting from traditional conduit, it also exceeds communication application expectations.From the brand you know and trust for expert integrated solutions, MSI has designed both the 7000 and 7001 TranSend to transform the signal of one or more load cells and transmits that data wirelessly to a receiving unit. TranSend is fully compatible with a broad range of receiving devices including MSI-8000, MSI-8000HD, any other digital weight indicator, PC, PLC, or other industrial device. Housed in a rugged IP-66 NEMA Type 4 enclosure, TranSend is suitable for most indoor and outdoor environments with an operating distance of up to 300 feet.Select from the basic functionality of single-channel models, or upgrade to the expanded capabilities of multi-channel models. Multi-channel devices offer up to three optional relay contacts, audible alarm, and can function as a smart junction box. In the event of a load cell failure, TranSend can automatically compensate and transmit a service warning, and compensate for that load cell until it is repaired.The MSI 7000 and 7001 TranSend transforms the way your devices communicate between one another. Upgrade your current communication process by eliminating expensive conduit and replacing it with TranSend.
The MSI (Measurement Systems International) Indicator, Receiver, MSI-7001 Gen 2, 85-265 VAC, mV/V Output # 230951 is manufactured by MSI (Measurement Systems International). Valley Instrument Service is an authorized MSI (Measurement Systems International) dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681This product is part of a family with 5 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
227550 | Request Quote | View Details → |
230951Current | $1,325.00 | Viewing |
230952 | $1,100.00 | View Details → |
227549 | Request Quote | View Details → |
230905 | $1,175.00 | View Details → |
Accessories, replacement sensors, and parts for this product family.
| Model | Price | |
|---|---|---|
144400 | Request Quote | View Details → |
145085 | $145.00 | View Details → |
145084 | Request Quote | View Details → |
143533 | Request Quote | View Details → |
143531 | Request Quote | View Details → |
143534 | Request Quote | View Details → |

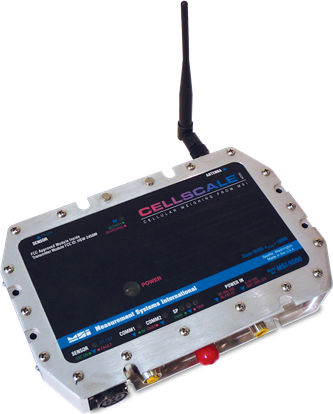

The MSI-9000 CellScale is MSI’s most innovative and technologically advanced product for wireless weighing and networked system solutions for industrial plant applications.The MSI-9000 CellScale simultaneously processes, monitors and controls single or multiple load sensor inputs and outputs along with real-time communications over a secure FHSS 2.4GHz RF network. Up to 64 selectable license-free RF networks are available ensuring reliable non-interfering transmissions across nearly all industrial environments.The MSI-9000 functions as the central controller in a CellScale networked weighing system combining advanced analog-to-digital (A/D) processing with superior RF communications packaged in a NEMA 4 /IP65 industrial grade enclosure. A standard CellScale can process two load sensor inputs or with an optional second A/D module, up to four inputs simultaneously with real-time data collection and communication throughout a network of peripheral CellScale weighing components.Other CellScale weighing components providing versatile wireless weighing system solutions include: MSI-9750A & MSI-9850 RF remote indicators, MSI-6260CS, MSI- 9300 & MSI-9300HT RF industrial crane scales, and MSI RF remote scoreboards. The MSI-9020 cell modem also provides simple network connectivity with existing plant information systems and equipment, including: printers, computers and PLCs. • 2.4 GHz frequency hopping spread spectrum • Two scale inputs and excitation with remote sensing (see formatting connector accessory) • Power/switch cable, 13 ft (4 m) for 9 to 30 VDC input with two programmable switch inputs • RS-232, RS-422 and RS-485 I/O with 13 ft (4 m) interface cable • Three internal solid state relays for setpoint control • Real-time clock • NEMA Type 4, IP65 enclosure (NEMA Type 6, IP67 with long-range antenna)
The MSI-3460 Challenger 3 digital crane scale has a capacity of 15,000 pounds with a ±0.1% accuracy. A large multicolored LED digital display can show up to five digits and includes brightness control, zero, tare, auto-off and auto-sleep functions. Able to withstand extreme conditions, the MSI-3460 features a 360-degree non-bearing swivel hook for optimal operation. • Multi-color LED display • Top lifting eye and bottom swivel hook • Crosby or equivalent with 360° non-bearing swivel hook • Lb/kg switch selectable • Six volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard) • Meets or exceeds OSHA, ANSI, ASME and other safety design standards (5:1 Ultimate Safety Factor) • NTEP Certified (250 to 10,000 lb capacities)
The MSI-4260 Port-A-Weigh features ScaleCore technology and has a capacity of 500 to 100,000 pounds (250 to 50,000 kilograms). The IP66 marine-grade cast aluminum enclosure protects and secures sensitive electronics from harsh conditions. • Multi-color LED display • Top lifting eye or shackle with Crosby (or equivalent) 360° thrust-bearing swivel hook • 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard)
The MSI-6360 Trans-Weigh is an industrial crane scale designed to withstand high temperatures. The IP66 cast aluminum enclosure protects sensitive components to ensure safety and accurate weights. Able to meet or exceed industrial safety requirements, the MSI-6360 features a 200% Safe and 500% Ultimate Safety Factor that minimizes accidents from overloading. • 12-volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard) • Top lifting eye or shackle with Crosby (or equivalent) 360° thrust-bearing swivel hook • RF modem install for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF remote display, TranSend and LaserLight2 remote display. Typically, 100 to 300 ft, line of sight;for longer range consult factory. • Meets or exceeds OSHA, ANSI, ASME and other safety design standards (5:1 Ultimate Safety Factor)
