Family Owned & Operated Since 1971• Bakersfield, CA
US manufacturer of crane scales and wireless weighing solutions — CellScale, Port-A-Weigh series.
105 products across 4 product lines
Popular instruments and equipment
The MSI-4260 Port-A-Weigh features ScaleCore technology and has a capacity of 500 to 100,000 pounds (250 to 50,000 kilograms). The IP66 marine-grade cast aluminum enclosure protects and secures sensitive electronics from harsh conditions. • Multi-color LED display • Top lifting eye or shackle with Crosby (or equivalent) 360° thrust-bearing swivel hook • 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard)
The MSI-6360 Trans-Weigh is an industrial crane scale designed to withstand high temperatures. The IP66 cast aluminum enclosure protects sensitive components to ensure safety and accurate weights. Able to meet or exceed industrial safety requirements, the MSI-6360 features a 200% Safe and 500% Ultimate Safety Factor that minimizes accidents from overloading. • 12-volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard) • Top lifting eye or shackle with Crosby (or equivalent) 360° thrust-bearing swivel hook • RF modem install for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF remote display, TranSend and LaserLight2 remote display. Typically, 100 to 300 ft, line of sight;for longer range consult factory. • Meets or exceeds OSHA, ANSI, ASME and other safety design standards (5:1 Ultimate Safety Factor)
The MSI-3460 Challenger 3 digital crane scale has a capacity of 15,000 pounds with a ±0.1% accuracy. A large multicolored LED digital display can show up to five digits and includes brightness control, zero, tare, auto-off and auto-sleep functions. Able to withstand extreme conditions, the MSI-3460 features a 360-degree non-bearing swivel hook for optimal operation. • Multi-color LED display • Top lifting eye and bottom swivel hook • Crosby or equivalent with 360° non-bearing swivel hook • Lb/kg switch selectable • Six volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard) • Meets or exceeds OSHA, ANSI, ASME and other safety design standards (5:1 Ultimate Safety Factor) • NTEP Certified (250 to 10,000 lb capacities)
The MSI Dyna-Clamp tension meter has a wire rope engagement site window to help ensure accurate tension readings. The MSI Dyna-Clamp features an easy-turn power screw, to make measuring wire rope tension simple and effortless, even in difficult environments. • Dual line LCD display • Two user-programmable function keys • IP65 anodized aluminum frame • RS-232 port • Up to eight factory calibrations included at no additional cost

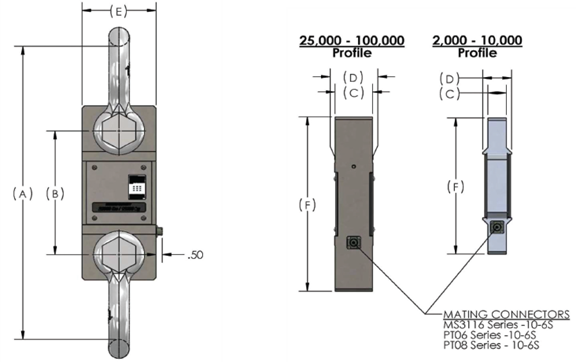

Dyna-Link 2 is lighter and more portable than its predecessor. It interfaces with industry-standard Crosby shackles and a variety of accessories and options, including wireless connectivity with the MSI-8000 and 8000HD RF remote display. Long-range viewing is enhanced by a large six-digit, 1 inch (25.4 mm) LCD display with resolution settings up to 5,000 divisions and precision accuracy over a wide range of capacities.Dyna-Link 2 is constructed of high-grade, aircraft-quality aluminum with an anodized finish and gasket sealing to ensure NEMA 4/IP65 rated environmental protection. Peak digital processing with low power consumption provides up to 300 hours of operation from standard common batteries during typical use. The optional MSI-8000 RF remote display provides full-function remote control of Dyna-Link 2 features up to distances of 100 feet (30m). An integrated serial port offers interface capabilities with data collection devices. • LCD display • Two C-cell alkaline batteries for capacities up to 10,000 lb (5,000 kg) • Two D-cell alkaline batteries for capacities 25,000 lb (12,500 kg) and above

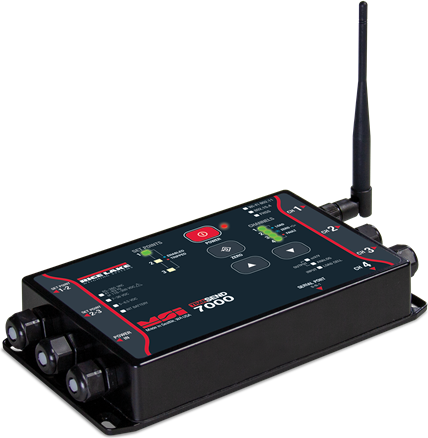

From the initial weighment on the scale to the final numeric value on the indicator, efficient communication is key to the success of the entire operation. Whether it’s overhead, livestock, tank, or heavy capacity weighing, once your traditional conduit is damaged or needs to be replaced, communication is halted and so is your operation. The MSI-7000 and 7001 TranSend not only solves issues resulting from traditional conduit, it also exceeds communication application expectations.From the brand you know and trust for expert integrated solutions, MSI has designed both the 7000 and 7001 TranSend to transform the signal of one or more load cells and transmits that data wirelessly to a receiving unit. TranSend is fully compatible with a broad range of receiving devices including MSI-8000, MSI-8000HD, any other digital weight indicator, PC, PLC, or other industrial device. Housed in a rugged IP-66 NEMA Type 4 enclosure, TranSend is suitable for most indoor and outdoor environments with an operating distance of up to 300 feet.Select from the basic functionality of single-channel models, or upgrade to the expanded capabilities of multi-channel models. Multi-channel devices offer up to three optional relay contacts, audible alarm, and can function as a smart junction box. In the event of a load cell failure, TranSend can automatically compensate and transmit a service warning, and compensate for that load cell until it is repaired.The MSI 7000 and 7001 TranSend transforms the way your devices communicate between one another. Upgrade your current communication process by eliminating expensive conduit and replacing it with TranSend. • Works with any basic digital weight indicator • Excitation to load cell(s) provided by the transmitter, not the indicator • Each transmitter/receiver set is individually paired • Serial communication cable included
Our team is factory-trained and ready to help you select, configure, and maintain MSI (Measurement Systems International) instruments.
Get Expert Help
