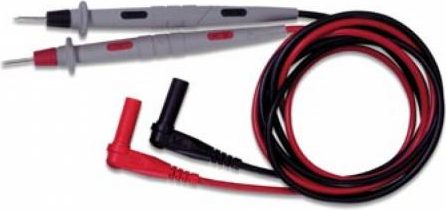

Pomona Electronics 5672A: Basic Electronic DMM Test Lead Kit.
Key Features
- Fits Fluke, H-P, Tektronix and Wavetek meters configured with non-sheathed standard and 4 mm banana jacks. Test probe body & banana plug body are molded directly to 48" (122 cm), high strand count/high temperature silicone leads for added pull strength and flexibility. Wear indication with double insulated (dual extruded) silicone leads shows white inner layer for increased safety. Medium alligators are insulated for added safety and can quickly attach to the 0.080" (2.03 mm) O.D. probe tip. Medium alligators have an overall length of 2.25" (5.7 cm) and grip up to 0.30" (7.62 mm) O.D. terminals. Slide-on extended tips have an overall length of 4" (10.16 cm) & attaches to the probe tip to allow access to hard to reach test points. Slide-on Extended Tip is insulated to the point to prevent accidental shorting.
- Kit Accessories
- USA: Sales: 800-490-2361 All dimensions are in inches. Tolerances (except noted): .xx = .02" (,51 mm), Technical Support: technicalsupport@pomonatest.com .xxx = .005" (,127 mm). All specifications are to the latest revisions. Fax: 425-446-5844 Specifications are subject to change without notice. Registered trademarks are the property of their respective companies.
- Europe: 31-(0) 40 2675 150 International: 425-446-5500
- Where to Buy: www.pomonaelectronics.com Copyright 2012 D1094606 Rev. 101 Page 1 of 2 Model 5672A Basic Electronic DMM Test Lead Kit
The Pomona Electronics Basic Electronic Test Lead Kit # 5672A is manufactured by Pomona Electronics. Valley Instrument Service is an authorized Pomona Electronics dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
