SKU: RPM33-NIST

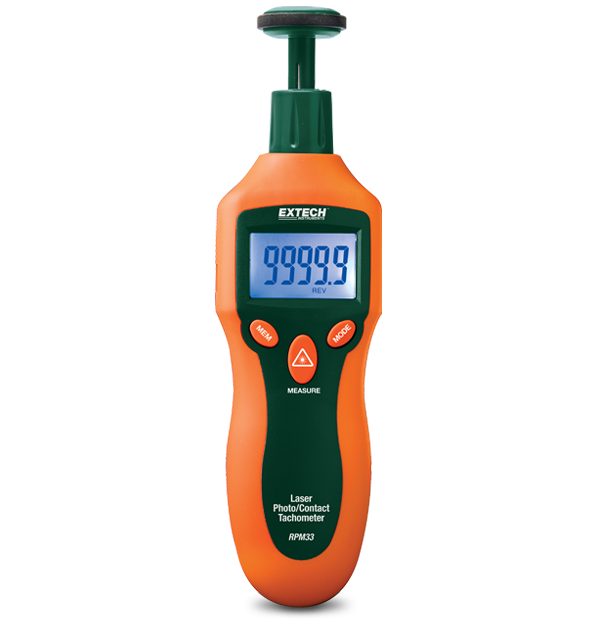

The Extech RPM33 provides both contact (2 to 19,999 rpm) and non-contact (2 to 99,999 rpm) revolutions per minute measurements for enhanced versatility. Safely record laser-guided non-contact RPM measurements from up to 500 mm (1.6 feet) away. The RPM33 displays on the large five-digit backlit LCD. Store and recall 10 data sets in memory with four parameters (measurement, max, min and average). The unit comes with contact wheel for linear surface speed 0 to 1999.9 meters/minute; 0.2 to 6560 feet/minute) or RPM measurements, 9-volt battery, reflective tape, carrying case, and user manual.
List price. Volume pricing available.
The Extech RPM33 provides both contact (2 to 19,999 rpm) and non-contact (2 to 99,999 rpm) revolutions per minute measurements for enhanced versatility. Safely record laser-guided non-contact RPM measurements from up to 500 mm (1.6 feet) away. The RPM33 displays on the large five-digit backlit LCD. Store and recall 10 data sets in memory with four parameters (measurement, max, min and average). The unit comes with contact wheel for linear surface speed 0 to 1999.9 meters/minute; 0.2 to 6560 feet/minute) or RPM measurements, 9-volt battery, reflective tape, carrying case, and user manual.
The Extech RPM33-NIST Mini Laser Photo/Contact Tachometer w/NIST # RPM33-NIST is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| NIST Calibration | Yes |
| Rotation Speed (Contact) | 2 to 20,000rpm |
| Rotation Speed (Contact) Basic Accuracy | 0.05% of reading +1 digit |
| Rotation Speed (Contact) Max Resolution | 0.1rpm ( 10,000 rpm) |
| Rotation Speed (Strobe) | 2 to 99,999rpm |
| Rotation Speed (Strobe) Basic Accuracy | 0.05% of reading +1 digit |
| Rotation Speed (Strobe) Max Resolution | 0.1rpm ( 10,000 rpm) |
| Sampling Time (Photo) | 0.5 Sec > 120rpm |
| Surface Length (Contact) | 3.9 to 39370 in, 0.3 to 3280 ft, 0.1 to 1093 yards, 0.1 to 1000 m |
| Surface Length (Contact) Basic Accuracy | 0.05% of reading +1 digit |
| Surface Speed (Contact) | 0 to 78,720 in/min, 0 to 6560 ft/min, 0 to 2186 yards/min, 0 to 2000 m/min |
| Surface Speed (Contact) Basic Accuracy | 0.05% of reading +1 digit |
| Certifications | RPM33-NIST_S: CE, NIST / RPM33_S: CE |
| Dimensions | 6.2 × 2.3 × 1.6" (160 × 60 × 42 mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 5.3oz (151g) |
This product is part of a family with 2 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
RPM33 | Request Quote | View Details → |
RPM33-NISTCurrent | Request Quote | Viewing |
