SKU: 461825

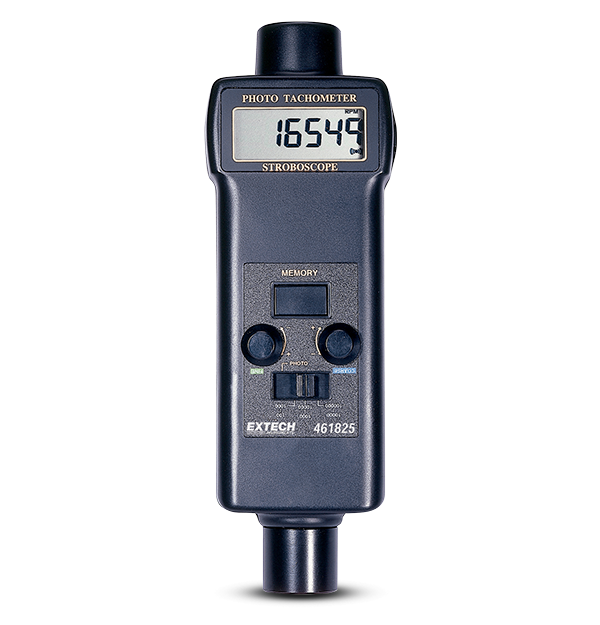

Perform tachometer RPM measurement, stroboscopic speed and motion analysis with the Extech 461825 Combination Photo Tachometer and Stroboscope. The unique display reverses character direction depending on which measurement mode you are using. The tachometer memory stores last, max, and min readings for recall. The strobe features course and fine flash rate adjustments in 3 ranges. It is complete with 4 AA batteries, reflective tape, and carrying case.
List price. Volume pricing available.
Perform tachometer RPM measurement, stroboscopic speed and motion analysis with the Extech 461825 Combination Photo Tachometer and Stroboscope. The unique display reverses character direction depending on which measurement mode you are using. The tachometer memory stores last, max, and min readings for recall. The strobe features course and fine flash rate adjustments in 3 ranges. It is complete with 4 AA batteries, reflective tape, and carrying case.
The Extech 461825 Stroboscope/Tachometer # 461825 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Rotation Speed (Strobe) | 5 to 99,999rpm |
| Rotation Speed (Strobe) Basic Accuracy | ±0.1% of reading |
| Rotation Speed (Strobe) Max Resolution | 0.1rpm (<1,000rpm), 1rpm (≥1,000rpm) |
| Rotation Speed [Photo] | 100 to 100,000 |
| Rotation Speed [Photo] Basic Accuracy | ±0.1% of reading |
| Rotation Speed [Photo] Max Resolution | 0.1fpm (<1,000fpm), 1fpm (≥1,000fpm) |
| Sampling Time (Photo) | 1 sec ≥ 60rpm; |
| Certifications | CE |
| Dimensions | 8.5 × 2.6 × 1.5" (215 × 65 × 38mm) |
| Power | 4 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 10.6oz (300g) |

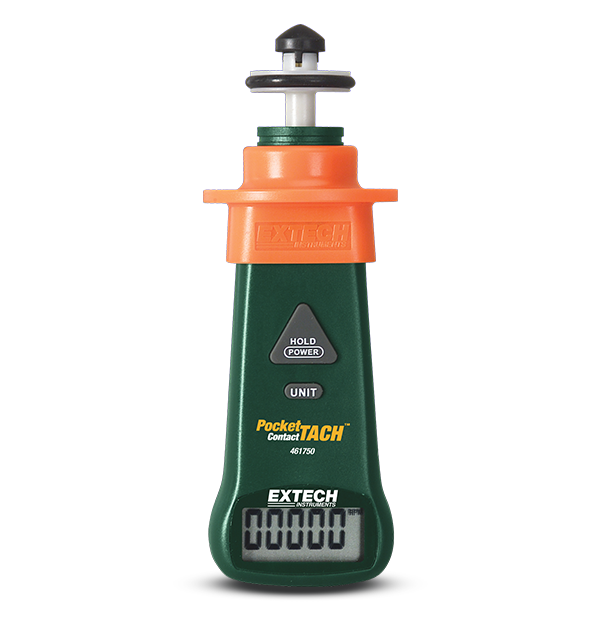

A tachometer is a device that measures the angular speed of a rotating shaft in terms of revolutions per minute (RPM). The Extech 461750 Tachometer features surface wheels that measure contact surface speeds of rotating (10 to 19,999 RPM) and moving (3 to 6,560 ft./minute; 1 to 1999. 9 m/min) objects. Complete with 9V battery and surface wheels.

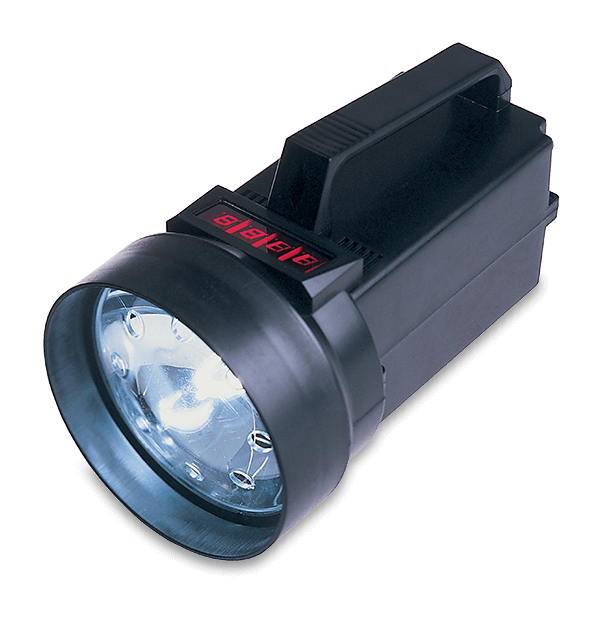

The Extech 461830 is a digital StroboTach tachometer. Freeze motion and analyze rotating objects without contact. Checks and analyzes motion and speed by simply aiming and synchronizing its flash rate (FPM) with a rotating object. Ideal for measuring the speed of moving gears, fans, pumps, motors and other equipment used in general maintenance, production, quality control, or laboratories. Complete with 6 ft power cord, handle and can be tripod mounted.

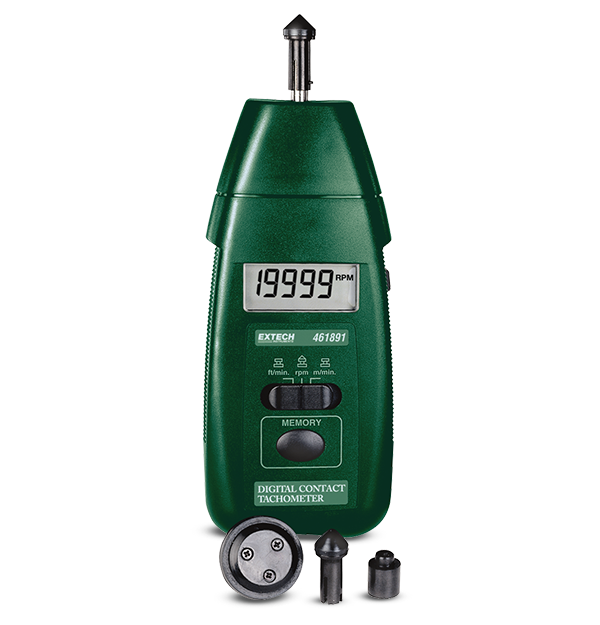

The 461891 is a contact Tachometer. Surface wheels measure contact surface speeds (10 to 9,999 rpm) of rotating objects. The memory button holds last reading and recalls min/max readings display. Complete with wheels for linear surface speed (0.2 to 6560 feet/minute; 0.05 to 1999.9 meters/minute) or RPM measurements. Comes with cone tip, flat tip and spare wheel for surface speed measurements, four AA batteries, carrying case, and user manual.

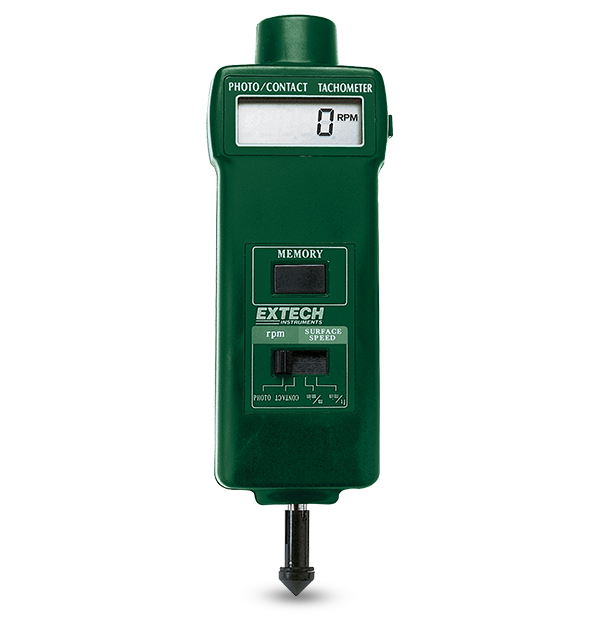

Uses visible light for non-contact measurements up to 6in. (150mm) from target. Comes with wheels for linear surface speed (0.2 to 6560 ft/m; 0.05 to 1999.9 m/m) or RPM measurements, 4 AA batteries, 23in. (0.6m) reflective tape, and carrying case.
