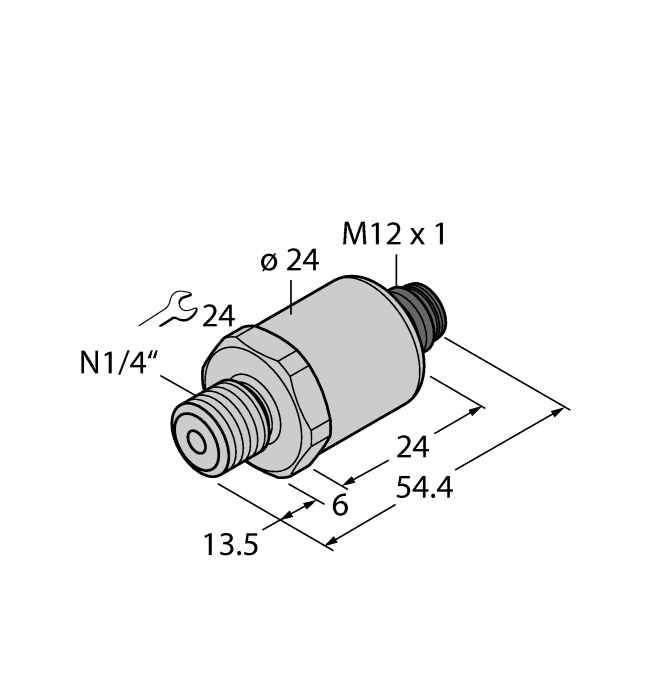

Pressure Transmitter - With Current Output (2-Wire)

Name: Valley Instrument Service
Address: 3536 Brian Way, Bakersfield, CA, 93308, US
Telephone: (661) 327-8681

SKU: PT0.25R-1003-I2-H1143

0…4 psi · 1/4″ NPT-18 male thread · Current output (2-wire) · 7…33 VDC

$194.70

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

Pressure Transmitter — With Current Output (2-Wire)

Ceramic measuring cell
Compact and robust design
Excellent EMC properties
Pressure range 0…0.25 bar rel.
7…33 VDC
Analog output 4…20 mA
Process connection 1/4"-18 NPT male thread
Plug-in device, M12 × 1

The Turck Pressure Transmitter - With Current Output (2-Wire) # PT0.25R-1003-I2-H1143 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

This product is part of a family with 126 models. Select a model below to view details.

Model	Description	EAN	Customs tariff number	Country of origin	Weight	Price
PT1VR-1001-I2-H1143	-14…0 psi · G 1/4” female thread (front sealing) · Current output (2-wire) · 7…33 VDC	4047101393828	9026204000	CH	101 g	Request Quote	View Details →
PT1VR-1001-U1-H1141	-14…0 psi · G 1/4” female thread (front sealing) · Voltage output (3-wire) · 12…33 VDC	4047101393712	9026204000	CH	113 g	Request Quote	View Details →
PT1VR-1001-U1-H1143	-14…0 psi · G 1/4” female thread (front sealing) · Voltage output (3-wire) · 12…33 VDC	4047101393668	9026204000	CH	117 g	Request Quote	View Details →
PT1VR-1121-U6-DT043P	-14…0 psi · 9/16″-18 UNF male thread · Voltage output (3-wire) · 4.5…5.5 VDC	4047101584066	9026204000	CH	90 g	Request Quote	View Details →
PT1VR-1001-IOL-H1141	-14…0 psi · G 1/4” female thread (front sealing) · 2 × switching output · 18…33 VDC	4047101522556	9026204000	CH	103 g	Request Quote	View Details →
PT1VR-1013-IOL-H1141	-14…0 psi · G1/8″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring · 2 × switching output · 18…33 VDC	4047101540833	9026204000	CH	77 g	Request Quote	View Details →
PT1VR-1003-IOL-H1141	-14…0 psi · 1/4″ NPT-18 male thread · 2 × switching output · 18…33 VDC	4047101522587	9026204000	CH	83 g	Request Quote	View Details →
PT0.05V-1503-I2-H1143/D840	1/4″ NPT-18 male thread · 10…30 VDC	4047101502442	9026204000	CH	89 g	Request Quote	View Details →
PT0.2V-1003-I2-H1143	Ceramic relative-pressure sensor	—	—	—	—	Request Quote	View Details →
PT0.2V-1004-I2-H1143	Ceramic relative-pressure sensor	—	—	—	—	Request Quote	View Details →

Pressure Transmitter - With Current Output (2-Wire)

SKU: PT0.25R-1003-I2-H1143

0…4 psi · 1/4″ NPT-18 male thread · Current output (2-wire) · 7…33 VDC

$194.70

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

Pressure Transmitter — With Current Output (2-Wire)

Ceramic measuring cell
Compact and robust design
Excellent EMC properties
Pressure range 0…0.25 bar rel.
7…33 VDC
Analog output 4…20 mA
Process connection 1/4"-18 NPT male thread
Plug-in device, M12 × 1

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

This product is part of a family with 126 models. Select a model below to view details.

Model	Description	EAN	Customs tariff number	Country of origin	Weight	Price
PT1VR-1001-I2-H1143	-14…0 psi · G 1/4” female thread (front sealing) · Current output (2-wire) · 7…33 VDC	4047101393828	9026204000	CH	101 g	Request Quote	View Details →
PT1VR-1001-U1-H1141	-14…0 psi · G 1/4” female thread (front sealing) · Voltage output (3-wire) · 12…33 VDC	4047101393712	9026204000	CH	113 g	Request Quote	View Details →
PT1VR-1001-U1-H1143	-14…0 psi · G 1/4” female thread (front sealing) · Voltage output (3-wire) · 12…33 VDC	4047101393668	9026204000	CH	117 g	Request Quote	View Details →
PT1VR-1121-U6-DT043P	-14…0 psi · 9/16″-18 UNF male thread · Voltage output (3-wire) · 4.5…5.5 VDC	4047101584066	9026204000	CH	90 g	Request Quote	View Details →
PT1VR-1001-IOL-H1141	-14…0 psi · G 1/4” female thread (front sealing) · 2 × switching output · 18…33 VDC	4047101522556	9026204000	CH	103 g	Request Quote	View Details →
PT1VR-1013-IOL-H1141	-14…0 psi · G1/8″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring · 2 × switching output · 18…33 VDC	4047101540833	9026204000	CH	77 g	Request Quote	View Details →
PT1VR-1003-IOL-H1141	-14…0 psi · 1/4″ NPT-18 male thread · 2 × switching output · 18…33 VDC	4047101522587	9026204000	CH	83 g	Request Quote	View Details →
PT0.05V-1503-I2-H1143/D840	1/4″ NPT-18 male thread · 10…30 VDC	4047101502442	9026204000	CH	89 g	Request Quote	View Details →
PT0.2V-1003-I2-H1143	Ceramic relative-pressure sensor	—	—	—	—	Request Quote	View Details →
PT0.2V-1004-I2-H1143	Ceramic relative-pressure sensor	—	—	—	—	Request Quote	View Details →

EAN	4047101447323
eCl@ss-Code (V5.1.4)	27200614 -/- Piezoresistive sensor (absolute and relative pressure)
Customs tariff number	9026204000
Country of origin	CH
Weight	83 g
Design	Without display
Process connection	1/4″ NPT-18 male thread
Pressure type	Relative pressure
Pressure range bar	0…0.25 bar
Pressure range psi	0…4 psi
Operating voltage	7…33 VDC
Electrical output	Current output (2-wire)
Current output	4…20 mA
Electrical connection	Connector, M12 × 1
Housing material	Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Material pressure transducer	Ceramic Al₂O₃
Medium temperature	-40…+125 °C
Ambient temperature	-30…+85 °C
Protection class	IP67
Approvals	CE, Metrological certification (RUS), cULus

EAN	4047101447323
eCl@ss-Code (V5.1.4)	27200614 -/- Piezoresistive sensor (absolute and relative pressure)
Customs tariff number	9026204000
Country of origin	CH
Weight	83 g
Design	Without display
Process connection	1/4″ NPT-18 male thread
Pressure type	Relative pressure
Pressure range bar	0…0.25 bar
Pressure range psi	0…4 psi
Operating voltage	7…33 VDC
Electrical output	Current output (2-wire)
Current output	4…20 mA
Electrical connection	Connector, M12 × 1
Housing material	Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Material pressure transducer	Ceramic Al₂O₃
Medium temperature	-40…+125 °C
Ambient temperature	-30…+85 °C
Protection class	IP67
Approvals	CE, Metrological certification (RUS), cULus
