SKU: 656

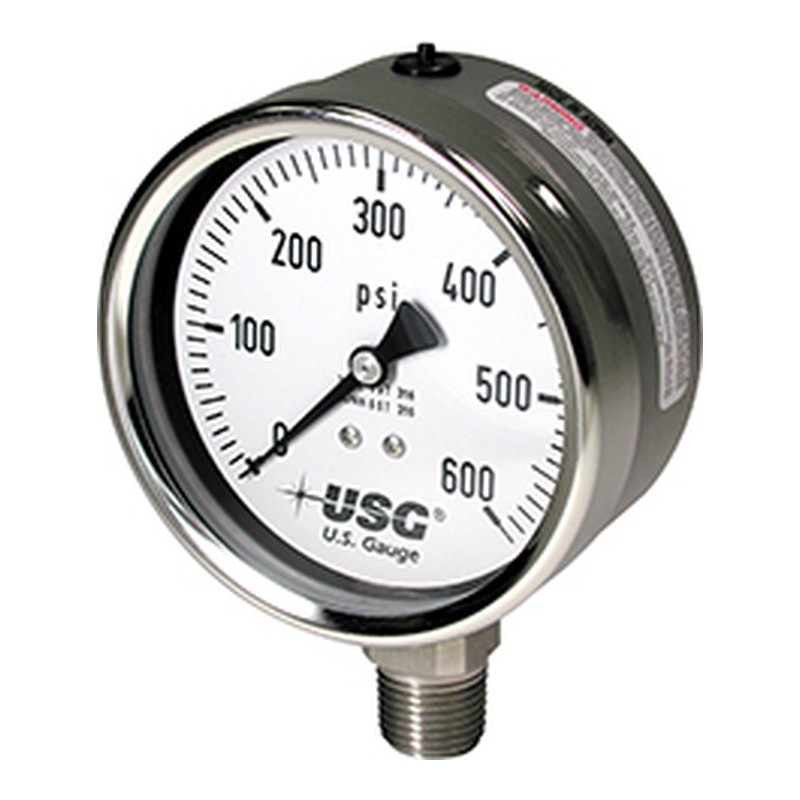

Open-front all-stainless liquid-filled / fillable process gauge in 2-1/2 in (63 mm), 4 in (100 mm), and 6 in (160 mm) — 304 stainless case, seamless 316L stainless Bourdon tube, accuracy to ±1% of span (100/160 mm). Pressure ranges from full vacuum to 0–23,000 PSI, with stem, center-back, front-flange, and U-clamp mounting. Factory glycerin, silicone, or mineral-oil fill. Configured to order — contact us for your exact build.
List price. Volume pricing available.
Open-front all-stainless liquid-filled / fillable process gauge in 2-1/2 in (63 mm), 4 in (100 mm), and 6 in (160 mm) — 304 stainless case, seamless 316L stainless Bourdon tube, accuracy to ±1% of span (100/160 mm). Pressure ranges from full vacuum to 0–23,000 PSI, with stem, center-back, front-flange, and U-clamp mounting. Factory glycerin, silicone, or mineral-oil fill. Configured to order — contact us for your exact build.
The Ametek U.S. Gauge Model 656 All-Stainless Liquid-Filled Gauge # 656 is manufactured by Ametek U.S. Gauge. Valley Instrument Service is an authorized Ametek U.S. Gauge dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681
