Ametek U.S. Gauge

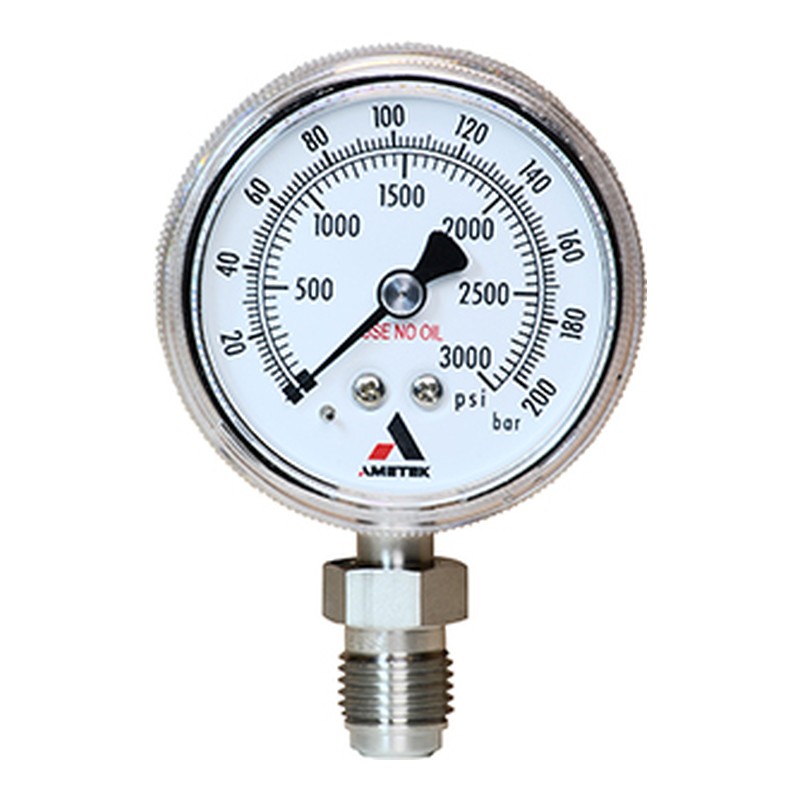

General Equipment Gauges

11 products

Starting at $51.60

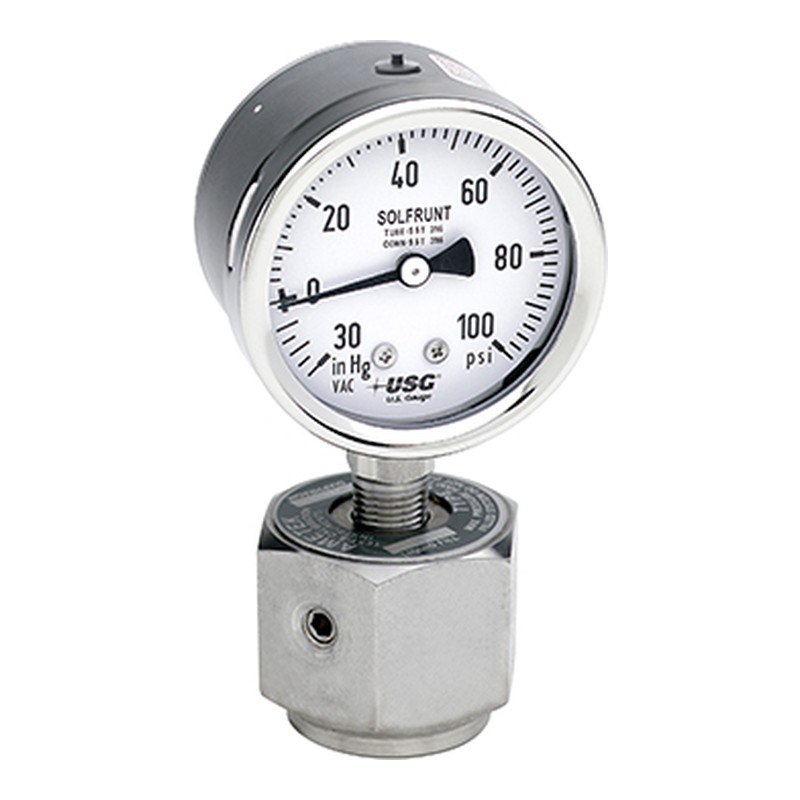

Liquid-Filled & Fillable Gauges

7 products

Starting at $57.60

SOLFRUNT Process Gauges

4 products

Starting at $193

Specialty Equipment Gauges

13 products

Starting at $52.00

Temperature Instruments

3 products

Starting at $146

Featured Ametek U.S. Gauge Products

Popular instruments and equipment

Model DT-8300EX Explosion-Proof Digital Thermometer

NEMA 4X explosion-proof (FM) digital thermometer — accepts any Type J or K thermocouple or Pt100 RTD (not included) for −58 to 1832 °F, 4-digit LCD, ±1%. Battery-powered (2-year typical) or 4–20 mA loop-powered; epoxy-coated aluminum housing, 1/2 in NPT, remote-mountable. Configured to order.

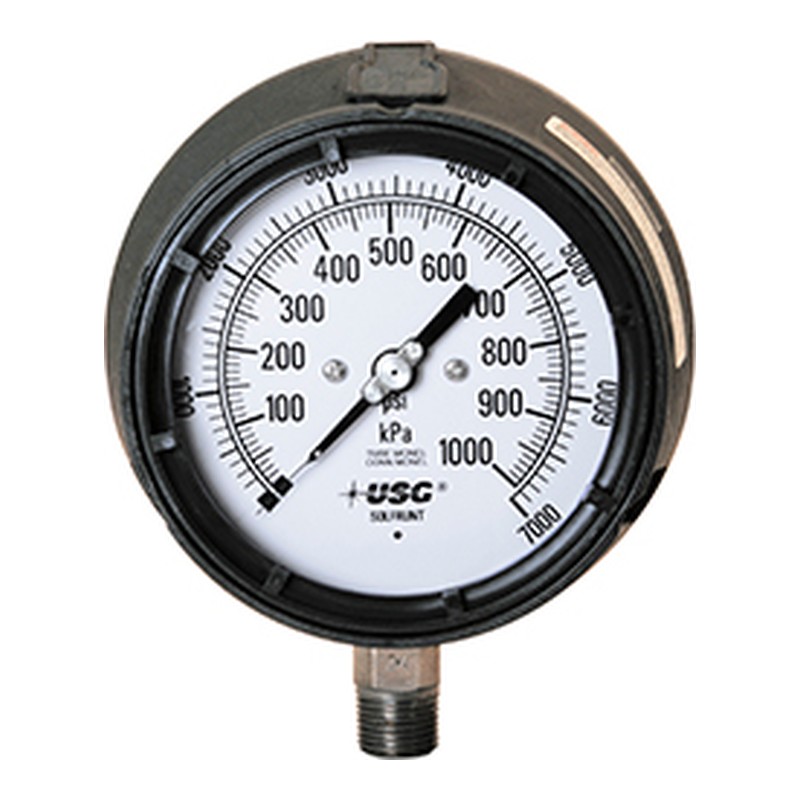

SOLFRUNT 4-1/2 in Monel Process Gauge Model 1986 (Configurable)

Corrosion-resistant SOLFRUNT process gauge with a Monel Bourdon tube and Monel process connection for aggressive and marine media — 4-1/2 in dial, ±0.5% of span accuracy (ASME B40.100 Grade 2A), EZ-Fill liquid-fillable case standard (glycerin, silicone, or mineral oil). Ranges from full vacuum to 0–10,000 PSI, ½ or ¼ in NPT low-mount connection. Configure connection, range, fill, and options to build your Spec Number.

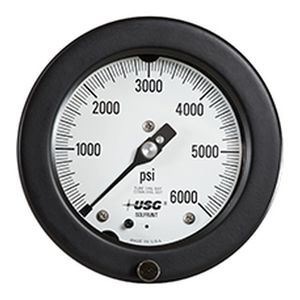

SOLFRUNT 4-1/2 in Back-Mount Process Gauge Model 1933 (Configurable)

Low-back-mount (LBM) version of the SOLFRUNT 1931 — a 4-1/2 in 316L stainless steel process gauge with ±0.5% of span accuracy (ASME B40.100 Grade 2A) for panel and surface mounting where the connection enters from the back. Ranges from full vacuum to 0–6,000 PSI, ½ or ¼ in NPT. Configure connection, range, and options to build your Spec Number.

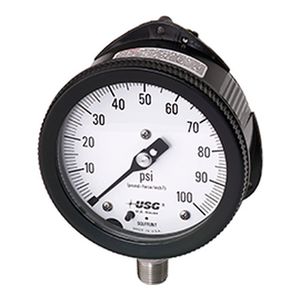

SOLFRUNT 4-1/2 in Process Gauge Model 1931 (Configurable)

AMETEK U.S. Gauge 4-1/2 in SOLFRUNT process gauge with 316L stainless steel wetted parts and a low-mount connection — ±0.5% of span accuracy (ASME B40.100 Grade 2A), micro-adjustable pointer, and a corrosion-resistant 300 Series stainless movement. Supplied dry or EZ-Fill liquid-fillable (glycerin, silicone, or mineral oil) for vibration and pulsation service. Ranges from full vacuum to 0–6,000 PSI, ½ or ¼ in NPT. Configure connection, range, fill, and options to build your Spec Number.

Model ADJ Adjustable-Angle Bimetallic Thermometer

Adjustable-angle bimetallic thermometer in 3 in and 5 in — 300 Series stainless case and stem, external-reset movement, ±1% of span (ASME B40.3). The head rotates and tilts for reading from any angle. Stem lengths 2-1/2 to 12 in; ranges from 0–200 °F to 200–1000 °F. Configured to order.

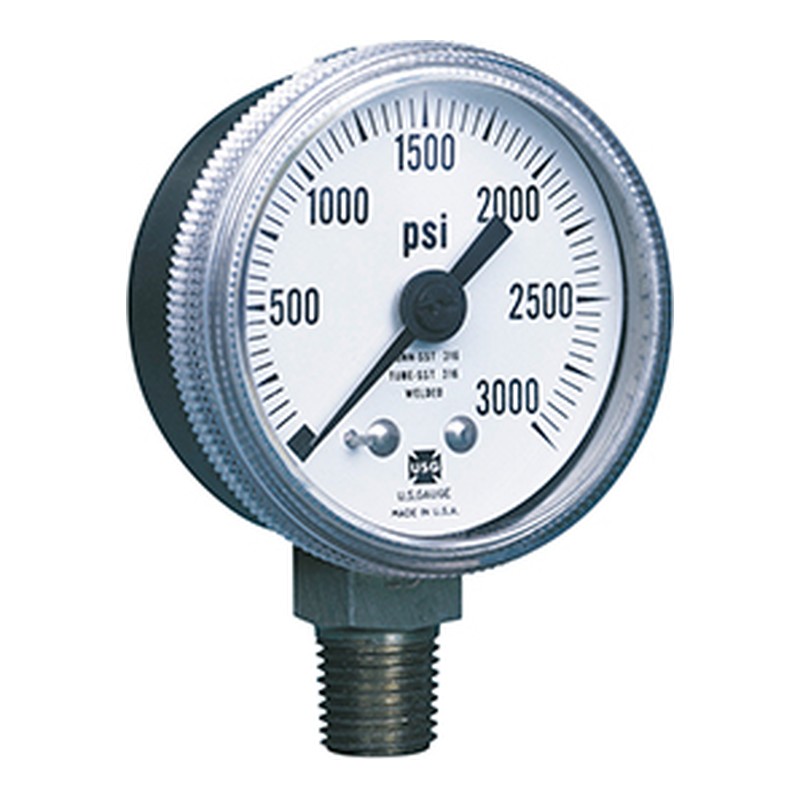

Model 1535 High-Accuracy Stainless Gauge

Corrosion- and weather-resistant high-accuracy gauge in 2 in and 2-1/2 in — 316L stainless steel wetted parts, ±1% of span (ASME Grade A), 300 Series stainless case, 1/4 in NPT low mount. For test and calibration-grade field measurement. Configured to order.
