SKU: EZT4V3-50T9WK
Portable cable fault location system for low-voltage shielded and unshielded power cables. Combines TDR pre-location, 500 J / 4 kV surge pinpointing, DC breakdown testing, insulation resistance measurement and sheath fault testing in one battery- or mains-powered unit. Easy Go guided workflow; compact enough to fit in a car trunk for rapid response.
List price. Volume pricing available.
EZ-Thump 4 kV V3 Cable Fault Location System.
The integrated safety system continuously monitors grounding conditions and prevents operation if unsafe conditions are detected, keeping operators protected at all times.
The EZ-THUMP Series features the E-Tray automation system that guides you through each step of the fault-finding process. It automatically adjusts during testing, so you spend less time making manual changes. The system offers two modes: Quick-step for occasional users and Expert mode for more advanced work. The clear seven-inch color display is easy to read, even in bright sunlight.
The EZ-THUMP series combine Hipot, TDR, Pre-location and pinpointing (surge testing) all in one simple to use unit. The products also incorporate multiple advanced features that provide both simple operations reduced fault locating time. Multi-shot Technology when performing ARM pre-location increases accuracy and greatly reduces the likelihood of a false return.
The Megger EZ-Thump 4 kV V3 Cable Fault Location System # EZT4V3-50T9WK is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681

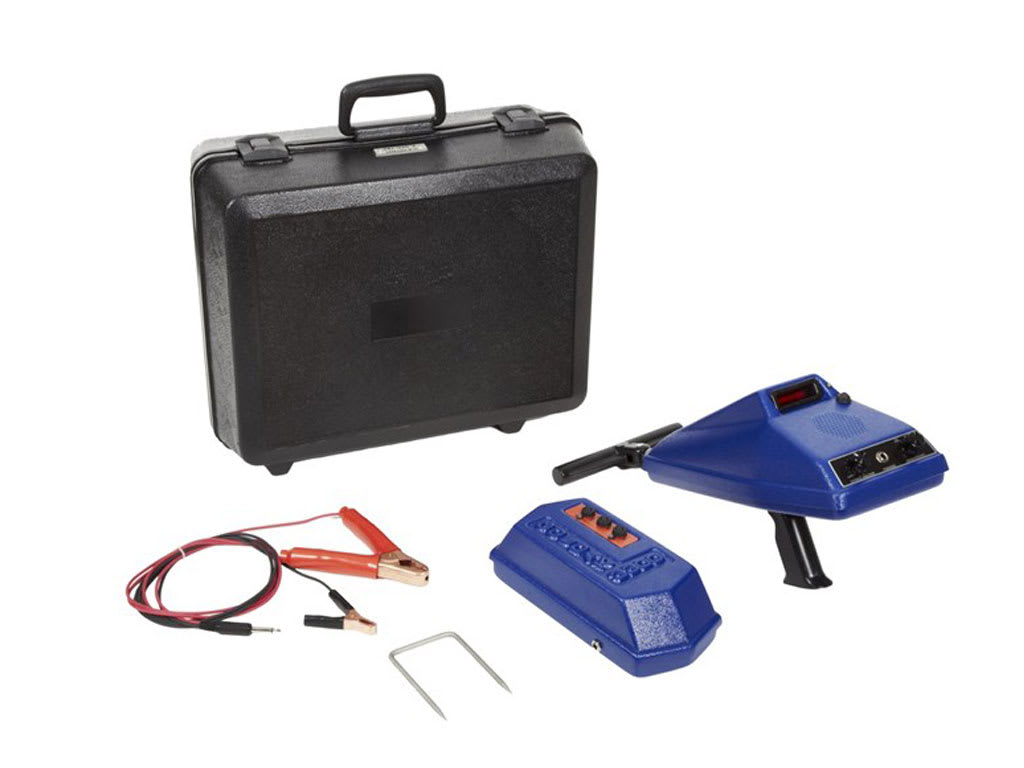

AccuTrace transmitter/receiver pair for tracing buried pipes and cables. Transmitter applies a low-frequency signal to the cable; receiver tracks the signal above ground to follow the route and estimate burial depth. For de-energized cables and pipes; pairs with the 656626 ring clamp for inductive coupling on cables that cannot be opened for direct connection.
Battery 9.6V NiMH 1.5AH (X8)

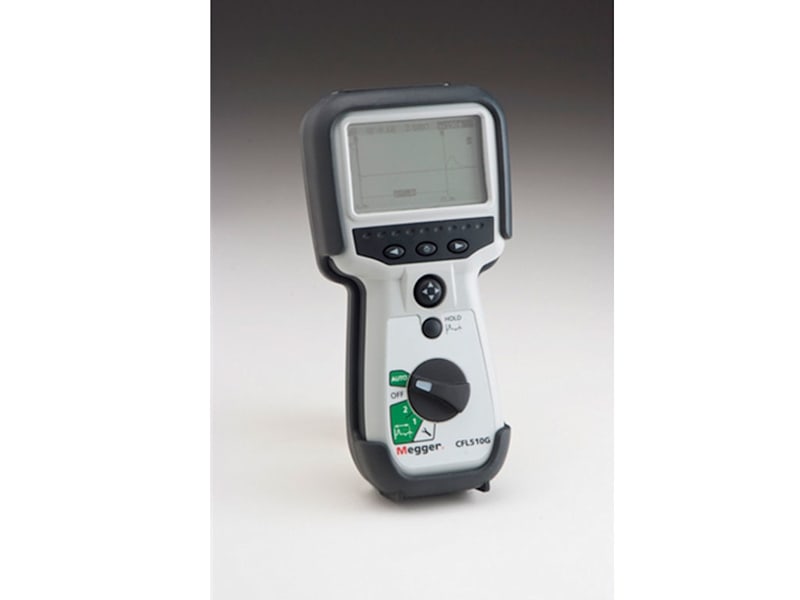

CFL510G Time Domain Reflectometer
Compact dual-channel time domain reflectometer for locating high- and low-impedance faults on paired metallic telecom cables. 0.1 m resolution, up to 20 km range, velocity factor 0.2–0.99, five output impedances (25–125 Ω) with auto-match. Xpert mode auto-positions the cursor on fault events; stores up to 100 traces. IP54 ingress protection, CAT IV 150 V / CAT III 300 V; ships with TraceXpert PC software.
