SKU: FLK-V3001FC
A fully functional DC voltage meter that wirelessly relays DC voltage measurements to other Fluke Connect enabled master units
List price. Volume pricing available.
A fully functional DC voltage meter that wirelessly relays DC voltage measurements to other Fluke Connect enabled master units

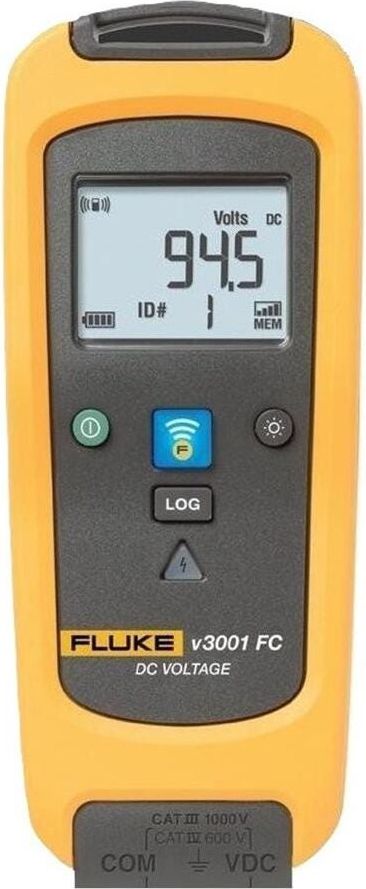

The Fluke V3001FC Wireless DC Voltage Module FC # FLK-V3001FC is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Voltage Specifications |
| Range¹ / resolution | 600.0 mV / 0.1 mV |
| Accuracy | 0.09% + 3 |
| VDC | General Specifications |
| LCD w/ backlight | 3 ½ digits, 6000 counts, 4/sec update rate |
| Battery type | 2 AA Alkaline batteries, NEDA 15A, IEC LR6 |
| Log rate/interval | Adjustable by PC from 1 sec to 1 hr, default 1 min |
| Battery life | 400 hours minimum |
| Memory | Record up to 65,000 readings |
| RF communications | 2.4 GHz ISM Band |
| Open air, unobstructed | Up to 20 m |
| Obstructed, sheetrock wall | Up to 6.5 m |
| Obstructed, concrete wall or steel electrical enclosure | Up to 3.5 m |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -40°C to +60°C |
| Temperature coefficient | 0.1 x (specified accuracy) / °C ( 28°C) |
| Relative humidity | 0% to 90% (0°C to 35°C), 0% to 75% (35°C to 40°C),0% to 45% (40°C to 50°C) |
| EMC | IEC 61236–1, Portable |
| Safety compliance | IEC 61010–1, 600 V CAT IV / 1000 V CAT III, 3rd edition, Pollution Degree 2 |
| Certifications | CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE |
| Ingress Protection (IP) rating | IP42 |
| Size (H x W x D) | 160 x 66 x 38 mm (6.3 x 2.6 x 1.5 in) |
| Weight | 0.255 kg (9 oz) |
| Warranty | Three years |
| RF communication range | Not compatible with Fluke CNX test tools |
