SKU: FLK-V3000FC

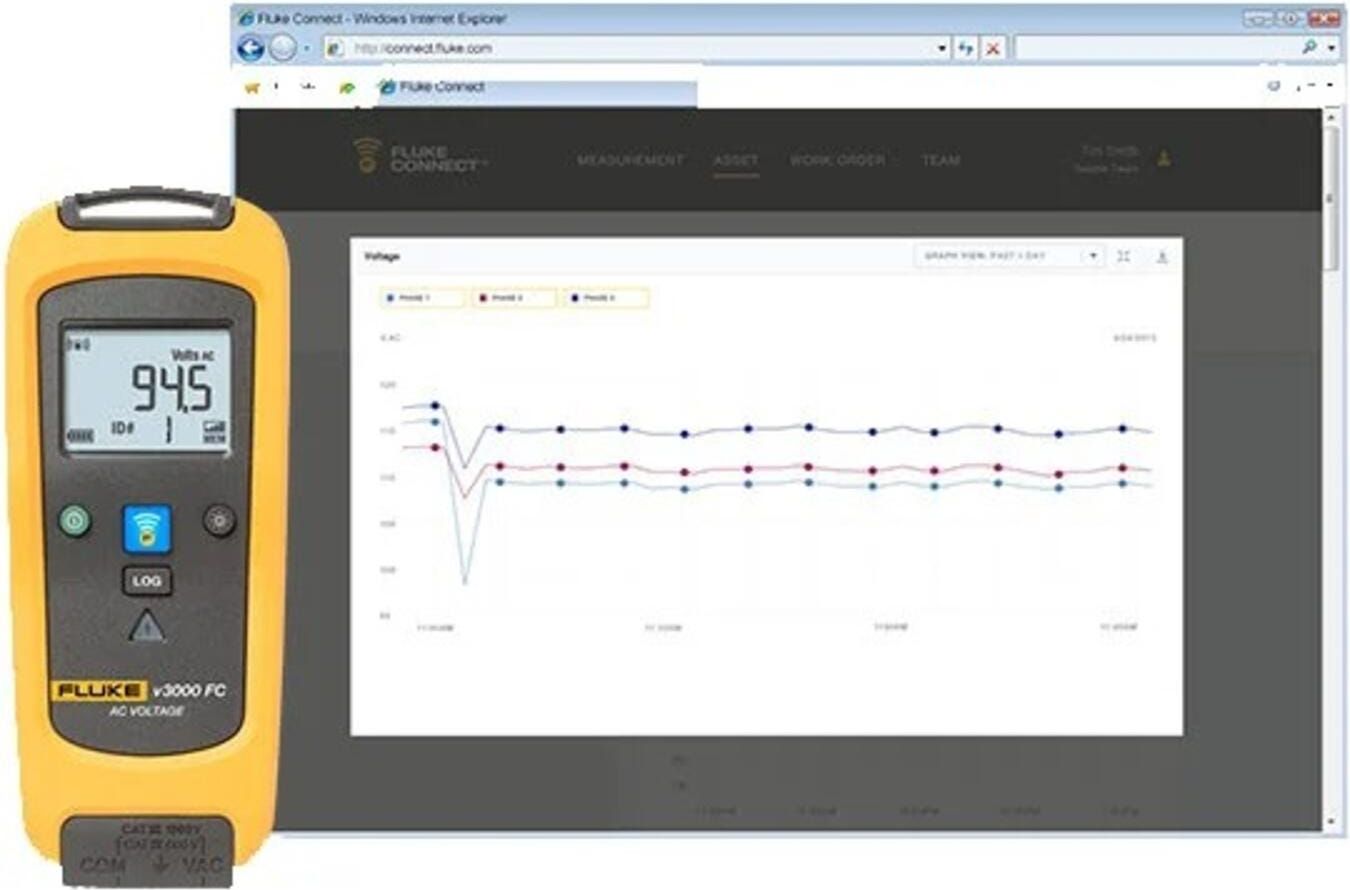

A fully functional AC voltage meter that wirelessly relays AC voltage measurements to other Fluke Connect enabled master units
List price. Volume pricing available.
A fully functional AC voltage meter that wirelessly relays AC voltage measurements to other Fluke Connect enabled master units
The Fluke V3000FC Wireless AC Voltage Module FC # FLK-V3000FC is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Specifications |
| Range¹ / Resolution | 6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 V1000 V / 1 V |
| 45 Hz to 500 Hz | 1.0% + 3 |
| 500 Hz to 1 kHz | 2.0% + 3 |
| Accuracy234 | General Specifications |
| LCD w/backlight | 3½ digits, 6000 counts, updates 4/sec |
| Battery type | 2 AA, NEDA 15 A, IEC LR6 |
| Battery life | 400 Hours |
| Memory | Record up to 65000 readings |
| RF communications | 2.4 GHZ ISM Band |
| Open air, unobstructed | Up to 20 m |
| Obstructed, sheetrock wall | Up to 6.5 m |
| Obstructed, concrete wall or steel electrical enclosure | Up to 3.5 m |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -40°C to +60°C |
| Temperature coefficient | 0.1 X (specified accuracy)/°C ( 28°C) |
| Operating humidity | 90% at 35°C, 45% at 40°C, 45% at 50°C |
| Operating | 2,000 m |
| Storage | 12,000 m |
| EMC | EN 61326–1:2006 |
| ANSI/ISA 61010–1 / (82.02.01) | 3rd edition |
| CAN / CSA–C22.2 No 61010–1–12 | 3rd edition |
| UL 61010–1 | 3rd edition |
| IEC/EN 61010–1 | 2010 |
| Safety rating | CAT IV 600 V, CAT III 1000 V |
| Certifications | CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE |
| Ingress Protection (IP) rating | IP42 |
| Pollution Degree | 2 |
| Size (HxWxD) | 16.5 x 6.35 x 1.4 cm (6.5 x 2.5 x 1.4 in) |
| Weight | .22 kg (8 oz) |
| Warranty | Three years |
| Safety compliance | Note: Not compatible with Fluke CNX test tools |
The 1662, one of our multifunction testers, tests to all local regulations & provides test results for complete documentation. Learn more today!
Multifunction installation tester with RCD Type B testing. Tests to local regulations and provides results for complete documentation. US (NEMA) plug.
Replacement main test cord for Fluke 1660 series multifunction installation testers. North America version.

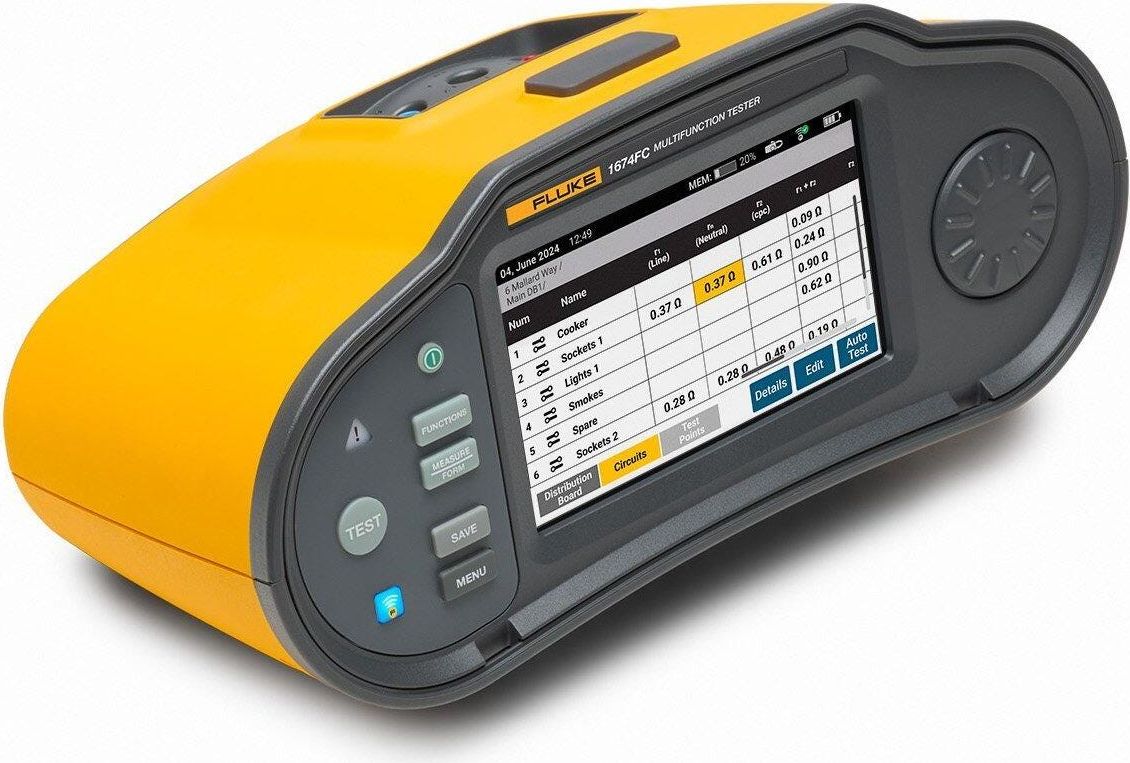

Multifunction installation tester with TruTest reporting software. Insulation resistance, loop/line resistance, voltage, frequency, and polarity testing. Schuko (CEE 7/7) plug.
