SKU: EV45-NACS

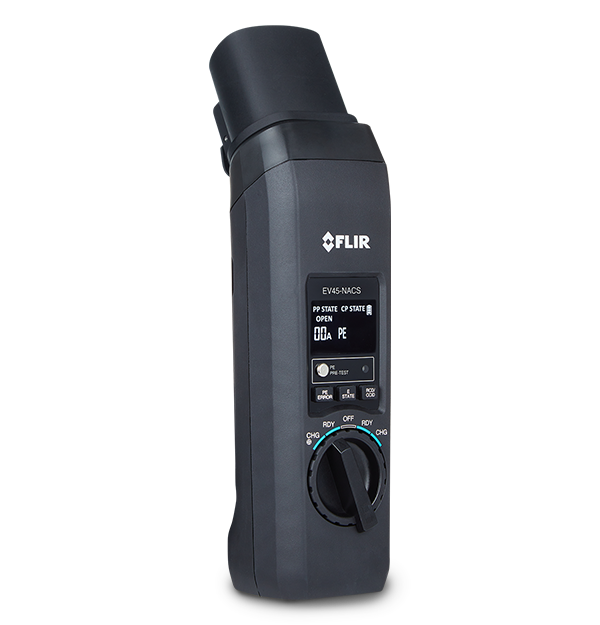

The FLIR EV45-NACS is equipped with a built-in NACS plug for NACS charging stations or AC wall connectors and is compatible with SAE J1772 Type 1 stations, with a compact adapter included. It is designed for level 1 or level 2 electric vehicle AC charging stations (EVSEs) at both residential and commercial destinations. Maintain EV charging station safety by checking Protective Earth (PE) and electrical wiring, Test charge current interrupt device (CCID) to ensure electrical safety, Verify EV Charger maximum current output, Output charging voltages and frequency for further performance and safety checks, with the option to use the FLIR DM286 IGM multimeter for a comprehensive kit solution. The Bluetooth FLIR METERLiNK technology in the DM286 allows you to connect wirelessly to the METERLiNK app on mobile devices, enabling instantaneous documentation, reporting, and sharing of results.
List price. Volume pricing available.
The FLIR EV45-NACS is equipped with a built-in NACS plug for NACS charging stations or AC wall connectors and is compatible with SAE J1772 Type 1 stations, with a compact adapter included. It is designed for level 1 or level 2 electric vehicle AC charging stations (EVSEs) at both residential and commercial destinations. Maintain EV charging station safety by checking Protective Earth (PE) and electrical wiring, Test charge current interrupt device (CCID) to ensure electrical safety, Verify EV Charger maximum current output, Output charging voltages and frequency for further performance and safety checks, with the option to use the FLIR DM286 IGM multimeter for a comprehensive kit solution. The Bluetooth FLIR METERLiNK technology in the DM286 allows you to connect wirelessly to the METERLiNK app on mobile devices, enabling instantaneous documentation, reporting, and sharing of results.
The FLIR EV45-NACS EV Charger Test Adapter with Nacs Plug and Type 1 Converter # EV45-NACS is manufactured by FLIR. Valley Instrument Service is an authorized FLIR dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Safety Category | CAT II-300 V, IEC 61010-1 |
| CP Error (E state) Simulation | Pass/Fault (CP signal short-circuited to PE) |
| CP State Simulation | A (Disconnected), B (Connected), C (Charging), D (Charging w/ ventilation), E (Error) |
| Input Type | Measuring Terminals: L1, L2/N, PE / Output for test purposes only: Max. 250 V (Single Phase), 50 / 60 Hz, CAT II 300 V, Max. 10 A |
| PE Error Simulation | Pass/Fault (Interruption of PE conductor) |
| PE Pre-Test | Pass/Fault (>50 V AC/DC between PE conductor and touch sensor) |
| PP State Simulation | Open, 13 A, 20 A, 32 A, 63 A |
| RCD/CCID Trip Test | Pass/Fault (Test RCD/CCID activation once tripped) |
| Voltage Phase Indication | L1, L2 |
| Connector Types | NACS (Built-in), Type 1 (converter included) |
| Battery Life | Approx. 100 hours, with alkaline batteries |
| Battery Type | 4 × AA Alkaline batteries |

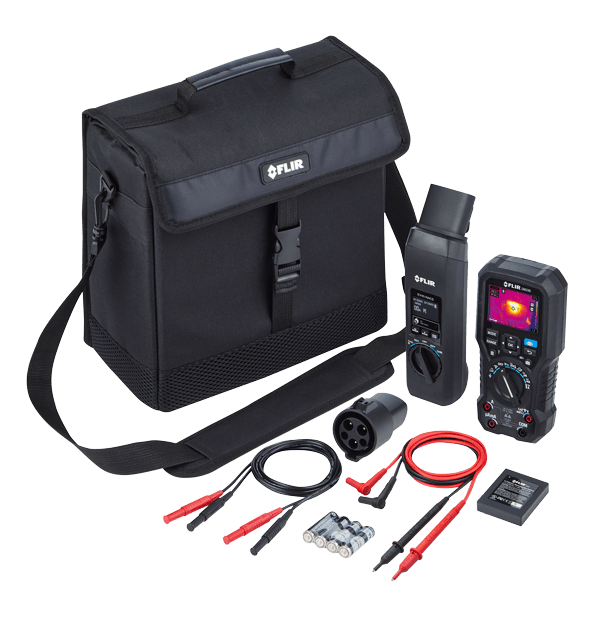

| Box Contents | EV45-NACS / Converter for Type 1 / Carrying Pouch / Test Leads / 4 × AA batteries / User Manual |
| Size (L x W x H) | 237 mm × 65 mm × 56 mm / (9.33 in × 2.56 in × 2.20 in) |
| Weight | 600 g (1.32 lbs) |
| Certifications | ETL, CE |
| EMC | EN61326-1 |
| Operating Altitude | 2000 m (6560 ft) |
| Operating Ambient Temperature and Relative Humidity (RH) | −10°C to 30°C (14°F to 86°F), <85% RH / 30°C to 40°C (86°F to 104°F), <75% RH / 40°C to 50°C (104°F to 122°F), <45% RH |
| Storage temperature and relative humidity [RH] | −20°C to 60°C (−4°F to 140°F), 0 to 80% RH (without batteries) |
The FLIR EV45-NACS is equipped with a built-in NACS plug for NACS charging stations or AC wall connectors and is compatible with SAE J1772 Type 1 stations. It is designed for level 1 or level 2 electric vehicle AC charging stations (EVSEs) at both residential and commercial destinations. Test charge current interrupt device (CCID) to ensure electrical safety and verify EV Charger maximum current output charging voltages and frequency for further performance and safety checks with the included FLIR DM286 IGM multimeter for a comprehensive kit solution. The Bluetooth FLIR METERLiNKtechnology in the DM286 allows you to connect wirelessly to the METERLiNK app on mobile devices, enabling instantaneous documentation, reporting, and sharing of results.
Explore the Flir CM276 clamp meter – a versatile tool integrating thermal imaging and electrical measurement for effective inspection of electrical systems, solar panels, and more. Its Infrared Guided Measurement (IGM) feature ensures safe identification of hot spots and overloaded circuits. With Meterlink app compatibility, enjoy efficient data capture and sharing of readings, images, and videos for comprehensive analysis and trending.
The FLIR CM57 is an ergonomic tool designed to simplify difficult current measurements. Made with a narrow, 18-inch (45.72 cm) flexible coil clamp, the CM57 lets you easily take measurements in tight or awkward spots. It is ideal for multiple-conductor measurements and double-wrap requirements. With Bluetooth communication for remote viewing and data transfer to iOS and Android devices via the FLIR Tools Mobile app, you can analyze and share data fast right from the jobsite.
The FLIR CM78-PV is designed for both commercial and industrial electrical inspections. It supports solar photovoltaic (PV) DC measurements up to 1,500 V using test leads, and handles up to 1,000 A DC or AC via the clamp jaw for DC Power measurements. The device is equipped with features such as Inrush AC current, variable frequency drive (VFD) mode, True RMS, and Low Impedance (LoZ) mode to meet advanced electrical testing and measurement needs. The built-in non-contact infrared thermometer aids in troubleshooting panels, conduits, and motors allowing for issue diagnosis and confirmation through contact measurements or by capturing intermittent faults with its datalogging function. Additionally, the Bluetooth FLIR METERLiNK technology enables wireless connection to the METERLiNK app on mobile devices, facilitating instant documentation, reporting, and sharing of results from the field.
