SKU: CM276
Explore the Flir CM276 clamp meter – a versatile tool integrating thermal imaging and electrical measurement for effective inspection of electrical systems, solar panels, and more. Its Infrared Guided Measurement (IGM) feature ensures safe identification of hot spots and overloaded circuits. With Meterlink app compatibility, enjoy efficient data capture and sharing of readings, images, and videos for comprehensive analysis and trending.
List price. Volume pricing available.
Explore the FLIR CM276 clamp meter – a versatile tool integrating thermal imaging and electrical measurement for effective inspection of electrical systems, solar panels, and more. Its Infrared Guided Measurement (IGM) feature ensures safe identification of hot spots and overloaded circuits. With Meterlink app compatibility, enjoy efficient data capture and sharing of readings, images, and videos for comprehensive analysis and trending.
The FLIR CM276 Clamp Meter and Thermal Imaging Camera with METERLiNK # CM276 is manufactured by FLIR. Valley Instrument Service is an authorized FLIR dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| IR Resolution | 160 × 120 (19,200 pixels) |
| Display Size | 2.4 in, TFT screen |
| Jaw Opening | 35 mm (1.37 in) |
| AC/DC Voltage | Range 1000 V / Basic accuracy ±1.0% |
| Data Logging & Storage | 10 sets of 30K scalar measurements, 100 images |
| Connectivity | Bluetooth® |
| Color Palettes | Iron, rainbow, arctic, white hot, and black hot |
| Field of View [V x H] | 44° × 57° |
| Focus | Fixed |
| Image Modes | Thermal MSX (Multi Spectral Dynamic Imaging) / Thermal camera only / Digital camera only |
| Sensitivity | 150 mK |
| Spectral Response | 8µm to 14 µm |
| Thermal Imaging Detector | FLIR Lepton® microbolometer |
| AC/DC Current | Range 600.0 A / Basic accuracy ±2.0% |
| Auto Range | Yes, with manual range option |
| Capacitance | Range 1000 µF / Basic accuracy ±1.0% |
| Continuity check threshold | ≤30 Ω beeper on, ≥150 Ω beeper off |
| Diode | Range 1.5 V / Basic accuracy ±1.5% |
| Flex Input AC A | Range 3000 A / Basic accuracy ±1.0% |
| Flex Input Frequency Counter | Range: 10.00 kHz / Basic accuracy: ±0.1% |
| Inrush AC Current | Range 600.0 A / Basic accuracy ±3.0% |
| LoZ Mode AC Voltage | Range 60.00 V, 600.0 V, 1000 V / Basic accuracy ±1.0% |
| LoZ Mode DC Voltage | Range 60.00 V, 600.0 V, 1000 V / Basic accuracy ±1.0% |
| Measuring Rate | 3 samples per second |
| PV DC Power | 900 kVA / Basic accuracy ±2.0% |
| PV DC Voltage | Range 1000 V / Basic accuracy ±2.0% with TA82 / Range 1500 V / Basic accuracy ±2.0% with TA85/TA86 (optional accessories) |
| Resistance | Range 60 KΩ / Basic accuracy ±1.0% |
| Temperature Accuracy | ±3°C (5.4°F) or ±3% of the reading; whichever is greater |
| Temperature [IR] | -10°C to 300°C (14°F to 572°F) |
| True RMS | Yes |
| VFD AC Current | Range 600.0 A / Basic accuracy ±2.0% |
| VFD AC Voltage | Range 1000 V / Basic accuracy ±1.0% |
| Storage Media | eMMC 8 GB |
| Auto Power Off | For device: option to OFF, 2, 5, or 10 minutes / For worklight only: option to OFF, 5, 15, or 30 minutes |
| Battery | Rechargeable 3.7 V, 5400 mAh LiPo |
| Laser Pointer | Type: Class 1 / Power: ≤0.39 mW / Wavelength: 640 nm to 660 nm |
| Size [L × W × H] | 272 mm × 100 mm × 51.5 mm (10.7 in × 3.94 in × 2.0 in) |
| Weight | 560 g (19.8 oz) |
| Worklights | 2 × white LED |
| Drop test | 2 m (6.5 ft) |
| Emissivity Settings | 0.10 to 1.00 (default is 0.95); select from three presets or set manually |
| IP Rating | IP40 |
| Warranty | 10 year |
The FLIR CM57 is an ergonomic tool designed to simplify difficult current measurements. Made with a narrow, 18-inch (45.72 cm) flexible coil clamp, the CM57 lets you easily take measurements in tight or awkward spots. It is ideal for multiple-conductor measurements and double-wrap requirements. With Bluetooth communication for remote viewing and data transfer to iOS and Android devices via the FLIR Tools Mobile app, you can analyze and share data fast right from the jobsite.

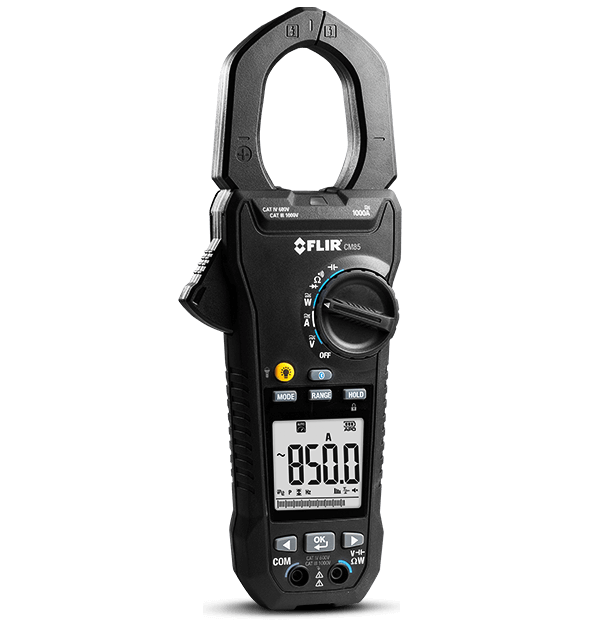

The FLIR CM85 is an industrial power clamp meter with advanced power analysis and variable frequency drive (VFD) filtering functions required by electrical troubleshooters for full-scale equipment. The CM85 helps users accurately analyze voltage in complex machinery by including harmonics, inrush, current, and phase rotation testing. The meter also features Bluetooth for remote viewing and data sharing from compatible mobile devices, and METERLiNK technology to wirelessly embed readings into infrared images on compatible FLIR cameras.
The FLIR CM78-PV is designed for both commercial and industrial electrical inspections. It supports solar photovoltaic (PV) DC measurements up to 1,500 V using test leads, and handles up to 1,000 A DC or AC via the clamp jaw for DC Power measurements. The device is equipped with features such as Inrush AC current, variable frequency drive (VFD) mode, True RMS, and Low Impedance (LoZ) mode to meet advanced electrical testing and measurement needs. The built-in non-contact infrared thermometer aids in troubleshooting panels, conduits, and motors allowing for issue diagnosis and confirmation through contact measurements or by capturing intermittent faults with its datalogging function. Additionally, the Bluetooth FLIR METERLiNK technology enables wireless connection to the METERLiNK app on mobile devices, facilitating instant documentation, reporting, and sharing of results from the field.
The Flir DM286 industrial imaging multimeter is the ultimate tool for electrical inspectors seeking a safe, accurate, and efficient way to identify, document, and share findings. With IGM (Infrared Guided Measurement) and MSX (Multi-Spectral Dynamic Imaging), you can safely identify where hazards might be before contact is ever made. The powerful multimeter can capture and store up to 30,000 images and 100 log files, with the ability to record thermal and visual video clips. Stream live data in real time from the DM286 to your mobile device. Use the Meterlink app to quickly and efficiently capture readings, images, and videos for analysis, trending, and sharing.
