SKU: VT8-1000
1000V Voltage, Continuity and Current Tester
List price. Volume pricing available.

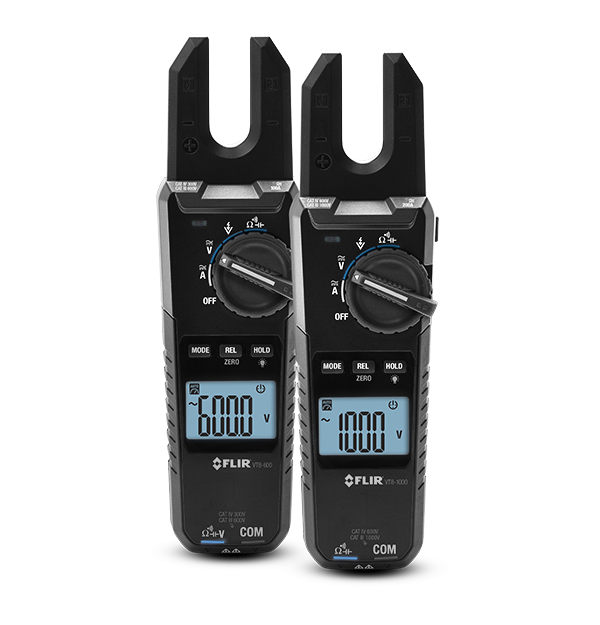

1000V Voltage, Continuity and Current Tester
The FLIR VT8-1000 1000V Voltage, Continuity and Current Tester # VT8-1000 is manufactured by FLIR. Valley Instrument Service is an authorized FLIR dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Non_Contact Voltage Detector [NCV] | >100 Vrms; <10 mm distance (LED/buzzer alerts) |
| Drop test | 2 m (6.6 ft) |
| AC/DC Current Accuracy | VT8-1000: ±2.5% (50 to 60Hz) VT8-600: ±2.5% (50 to 60 Hz) |
| AC/DC Current Range | VT8-1000: 200 A VT8-600: 100 A |
| AC/DC Current Resolution | 0.1 A |
| AC/DC Voltage Resolution | 0.1 V |
| AC/DC Volts Accuracy | VT8-1000: ±1.5%, ±1.0% (56 to 66 Hz) VT8-600: ±1.5%, ±1.0% (45 to 66Hz) |
| AC/DC Volts Range | VT8-1000: 1000 V VT8-600: 600 V |
| Additional Measurement Functions | DCA zero, relative mode (AC/DC voltage, AC current, and capacitance), data hold |
| Auto Range | Yes |
| Capacitance | 600 µF ±4.0%, 6000 µF ±10.0% |
| Continuity check threshold | 10 Ω to 100 Ω |
| Display Rate | Approximately 3 times per second |
| Over-Range Indication | "OL" or "-OL" displayed |
| Polarity | Automatic display of positive and negative polarity |
| Resistance | 60.00 MΩ ± (1.5%) |
| True RMS | Yes |
| Display | 6000-count backlit multi-function LCD |
| Agency Approvals | C-UL-US, CE, RCM |
| Operating Temperature | -10 to 50°C (14 to 122°F) |
| Relative Humidity | 95% max; 5 to 30°C (41 to 86°F) 75% max; 30 to 40°C (86 to 104°F) 45% max; 40 to 50°C (104 to 122°F) |
| Storage Temperature | –30 to 60°C (-22 to 140°F), batteries not installed |
| Dimensions (W x H x D) | 210 × 53 × 35 mm (8.27 × 2.1 × 0.67 in) |
| Jaw Opening | 15.5 mm (0.61 in) |
| Worklights | White LED |
| Auto Power Off | After 15 minutes |
| Low Battery Indication | Battery symbol is displayed when batteries need changing |
| Power Source | 2 x AA alkaline batteries |
FLIR Non-Contact Voltage Detector and Flashlight, 90-1000VAC
600V Voltage, Continuity and Current Tester

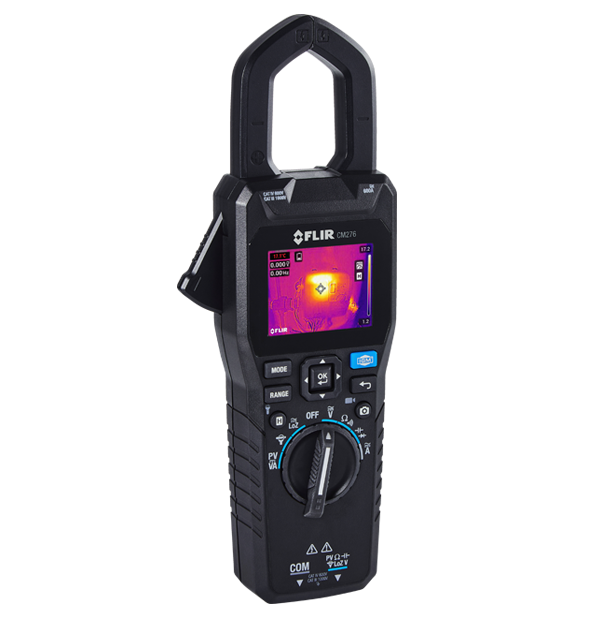

Explore the Flir CM276 clamp meter – a versatile tool integrating thermal imaging and electrical measurement for effective inspection of electrical systems, solar panels, and more. Its Infrared Guided Measurement (IGM) feature ensures safe identification of hot spots and overloaded circuits. With Meterlink app compatibility, enjoy efficient data capture and sharing of readings, images, and videos for comprehensive analysis and trending.

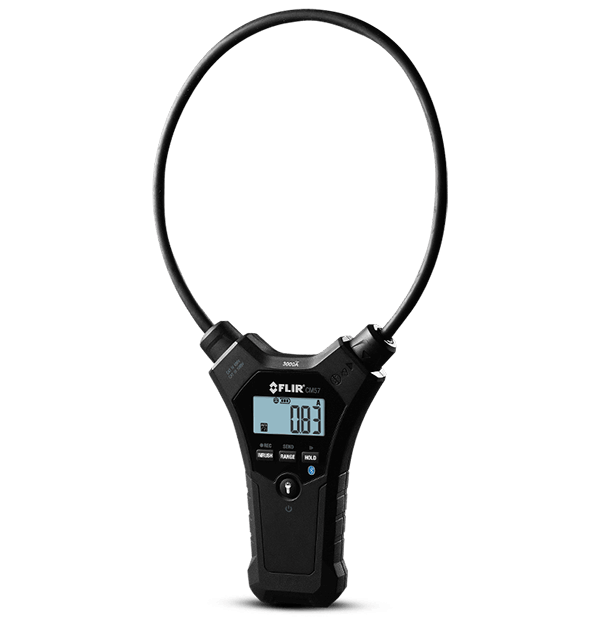

The FLIR CM57 is an ergonomic tool designed to simplify difficult current measurements. Made with a narrow, 18-inch (45.72 cm) flexible coil clamp, the CM57 lets you easily take measurements in tight or awkward spots. It is ideal for multiple-conductor measurements and double-wrap requirements. With Bluetooth communication for remote viewing and data transfer to iOS and Android devices via the FLIR Tools Mobile app, you can analyze and share data fast right from the jobsite.
