SKU: PQ3450

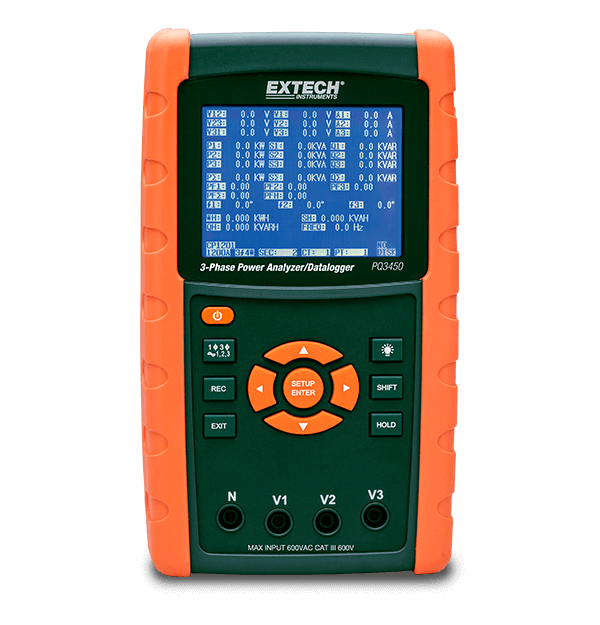

The Extech PQ3450 is a 3-phase power analyzer/data logger capable of logging up to 30,000 sets of measurements in Excel format on a removable SD memory card. The product is easy-to-hold with a rugged over molded housing. It features a built-in clock and calendar, 35 parameters, and a CAT III 600V safety rating. Complete with a year warranty, 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100-240 Volt AC adaptor and case. Clamp probes sold separately.
List price. Volume pricing available.
The Extech PQ3450 is a 3-phase power analyzer/data logger capable of logging up to 30,000 sets of measurements in Excel format on a removable SD memory card. The product is easy-to-hold with a rugged over molded housing. It features a built-in clock and calendar, 35 parameters, and a CAT III 600V safety rating. Complete with a year warranty, 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100-240 Volt AC adaptor and case. Clamp probes sold separately.
The Extech PQ3450 3-Phase Power Analyzer/Datalogger # PQ3450 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| AC Current | up to 3000A (depends on the current clamp probes used) |
| AC Current Basic Accuracy | ±(0.5% of reading) |
| AC Voltage | 600.0V |
| AC Voltage Basic Accuracy | ±(0.5% of reading) |
| Active Power | 9.999MW |
| Active Power Basic Accuracy | ±(1.0% of reading) |
| Active Power Energy | 0.0kWh to 9.999MWH |
| Active Power Energy Basic Accuracy | ±(2.0% of reading) |
| Apparent Power | 9.999MVA |
| Apparent Power Basic Accuracy | ±(1.0% of reading) |
| Apparent Power Energy | 0.0KVAh to 9.999MVAH |
| Apparent Power Energy Basic Accuracy | ±(2.0% of reading) |
| Frequency | 45Hz to 65Hz |
| Frequency Basic Accuracy | ±0.1Hz |
| Input Range | 200mV, 300mV, 500mV, 1V, 2V, 3V (user-selectable) |
| Input Range Basic Accuracy | ±(0.5% of reading) |
| Memory | 30,000 readings (2GB SD memory Card) |
| Phase | -180 ° to +180° |
| Phase Basic Accuracy | ±1° |
| Power Factor | 0.00 to 1.00 |
| Power Factor Basic Accuracy | ±0.04 |
| Reactive Power | 9.999MVAR |
| Reactive Power Basic Accuracy | ±(1.0% of reading) |
| Reactive Power Energy | 0.0kVARh to 9.999MVARH |
| Reactive Power Energy Basic Accuracy | ±(2.0% of reading) |
| True RMS | Yes |
| Certifications | CE, UL |
| Dimensions | 8.86 × 4.92 × 2.52" (225 × 125 × 64mm) |
| Power | 8 × AA (1.5V) batteries |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 2.2lbs (1010g) |
This product is part of a family with 2 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
PQ3450Current | Request Quote | Viewing |
PQ3450-NIST | Request Quote | View Details → |
