SKU: 382100

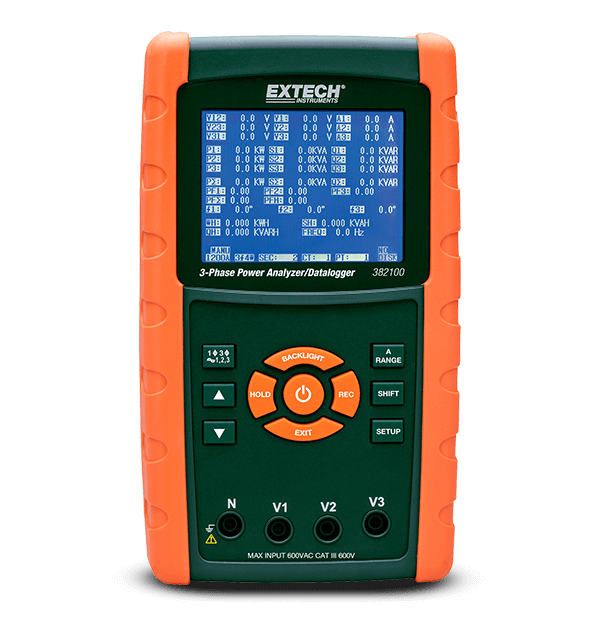

The Extech 382100 is a 3-Phase Power Analyzer/Datalogger that saves data (up to 30,000 sets of measurements) on an SD card in Excel format for easy transfer to your PC. It provides a full system analysis with up to 35 parameters including: V (phase-to-phase), V (phase-to-ground), A (phase-to-ground), KW / KVA / KVAR / PF (phase), KW / KVA / KVAR / PF (system), KWH / KVAH / KVARH / PFH (system), and Phase Angle. Readings are displayed on a large, dot matrix, sun-readable, backlit LCD. It comes with three current clamps, four voltage leads with alligator clips, eight AA batteries, SD memory card, Universal AC adapter (100 to 240 V), case, and user manual.
List price. Volume pricing available.
The Extech 382100 is a 3-Phase Power Analyzer/Datalogger that saves data (up to 30,000 sets of measurements) on an SD card in Excel format for easy transfer to your PC. It provides a full system analysis with up to 35 parameters including: V (phase-to-phase), V (phase-to-ground), A (phase-to-ground), KW / KVA / KVAR / PF (phase), KW / KVA / KVAR / PF (system), KWH / KVAH / KVARH / PFH (system), and Phase Angle. Readings are displayed on a large, dot matrix, sun-readable, backlit LCD. It comes with three current clamps, four voltage leads with alligator clips, eight AA batteries, SD memory card, Universal AC adapter (100 to 240 V), case, and user manual.
The Extech 382100 Power Analyzer # 382100 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| AC Current | 1200A |
| AC Current Basic Accuracy | ±(0.5% of reading + 0.5A) |
| AC Voltage | 600.0V |
| AC Voltage Basic Accuracy | ±(0.5% of reading + 0.5V) |
| Active Power | 9.999MW |
| Active Power Basic Accuracy | ±(1.0% of reading + 0.08KW) |
| Active Power Energy | 0.0kWh to 9.999MWHr |
| Active Power Energy Basic Accuracy | ±(2.0% of reading + 0.08KWh) |
| Apparent Power | 9.999MVA |
| Apparent Power Basic Accuracy | ±(1.0% of reading + 0.08KVA) |
| Apparent Power Energy | 0.0KVAh to 9.999MVAh |
| Apparent Power Energy Basic Accuracy | ±(2.0% of reading + 0.08KVAh) |
| Frequency | 45Hz to 65Hz |
| Frequency Basic Accuracy | ±0.1Hz |
| Memory | 60,000 readings (2GB SD memory Card) |
| Phase | -180° to +180.0° |
| Phase Basic Accuracy | ±1° |
| Power Factor | 0.00 to 1.00 |
| Power Factor Basic Accuracy | ±0.04 |
| Reactive Power | 9.999MVAR |
| Reactive Power Basic Accuracy | ±(1.0% of reading + 0.08KVAR) |
| Reactive Power Energy | 0.0kVARh to 9.999MVARh |
| Reactive Power Energy Basic Accuracy | ±(2.0% of reading + 0.08KVARh) |
| True RMS | Yes |
| Certifications | CE |
| Dimensions | 8.9 × 2.5 × 1.3 (225 × 125 × 64mm) |
| Safety Category | CAT III-600V |
| Warranty | 2 years |
| Weight | Meter: 2.3lbs (1049g); Clamp: 1.2lbs (522g) |

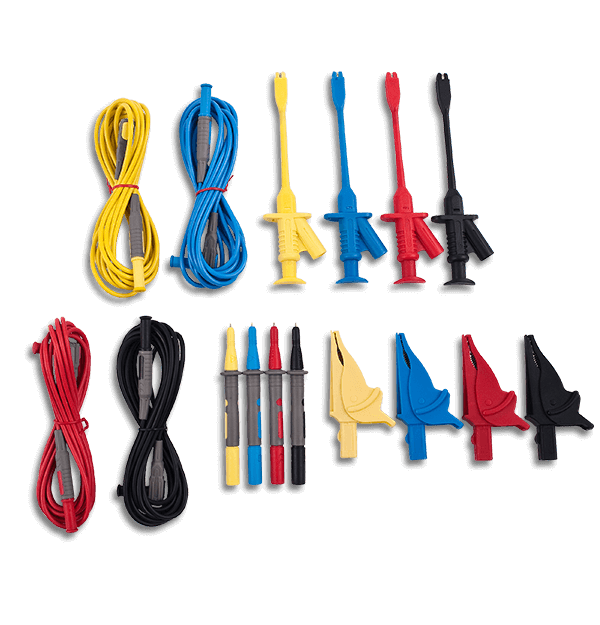

The Extech PQ1000 is a CAT IV Test Lead accessory kit For PQ3400 series power analyzers. It includes a set of 4, 3 m (10 ft) test leads (black, red, blue, yellow) with shrouded banana plugs on both ends (right angle on one end). Includes test probes, alligator clips, and long reach spring loaded clips.

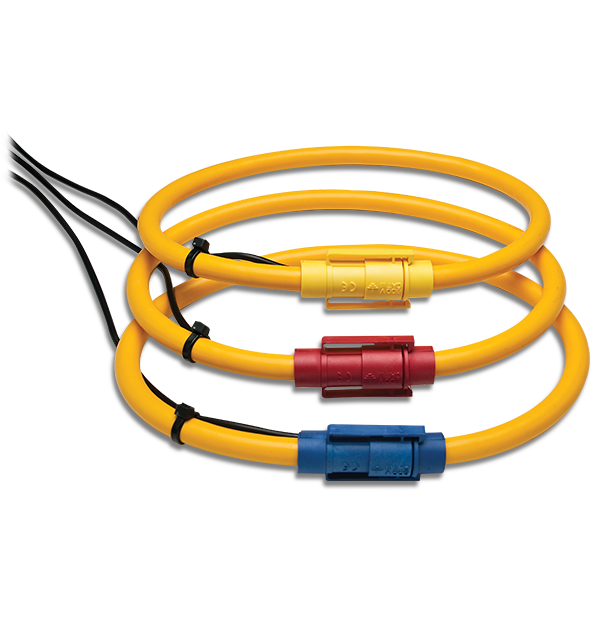

The Extech PQ3220 is a set of 3000 Amp flex clamps (set of 3) for the PQ3350 analyzer. Probes are 61 cm (24 in) for wrapping around bus bars.

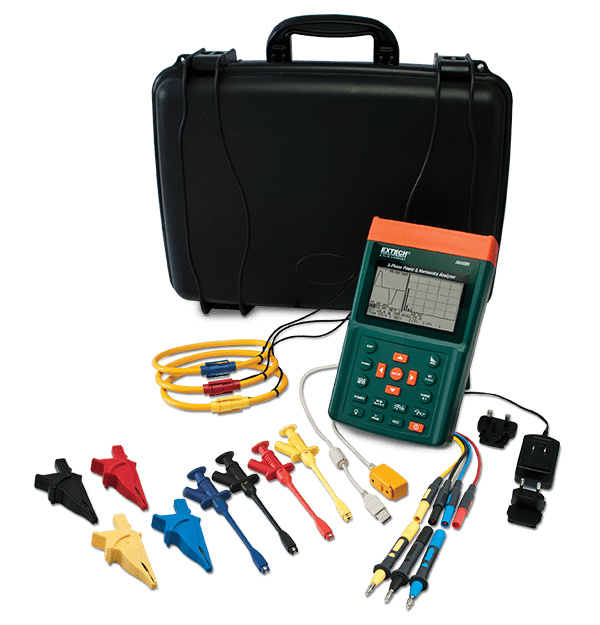

The Extech PQ3350-1 is a 3-Phase Power & Harmonics Analyzer capable of up to 52,428 single phase readings or 17,476 3-phase readings. It includes a large backlighting LCD displays up to 35 parameters in one screen, and allows for the simultanious display of harmonics and waveform. For single and 3-phase/3-wire or 3-phase/4-wire systems. Complete with 3 flexible current clamps, 4 voltage leads with alligator clips and retractable plunger clips, 8 AA batteries, universal AC adaptor, software, USB interface cable, and case.

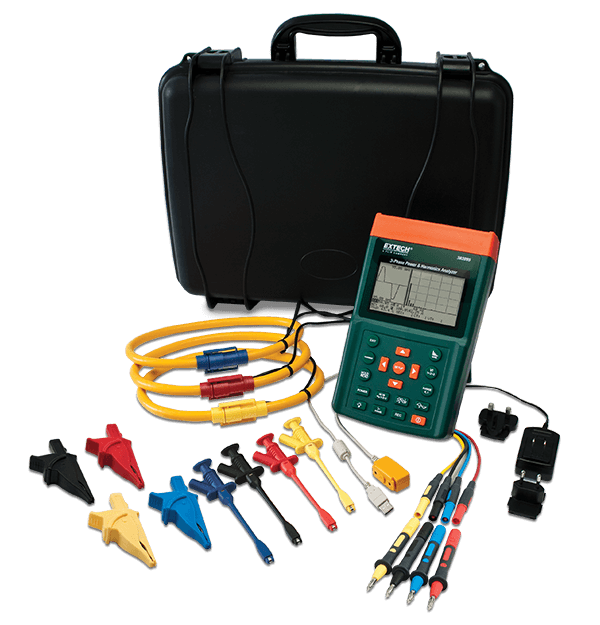

The Extech PQ3350-3 is a 3-Phase Power & Harmonics Analyzer capable of up to 52,428 single phase readings or 17,476 3-phase readings. It includes a large backlighting LCD that can display up to 35 parameters in one screen, and allows for the simultanious display of harmonics and waveform. For single and 3-phase/3-wire or 3-phase/4-wire systems. Complete with 4 voltage leads with alligator clips and retractable plunger clips, 8 AA batteries, universal AC adaptor, software, USB interface cable, and case. Current Probes sold separately.
