SKU: 107637
List price. Volume pricing available.
Maintain accuracy and accountability even in temporary site applications with the RoughDeck AX. This portable, economical option for vehicle and truck weighing is built tough, using time-tested Rice Lake construction. The RoughDeck AX provides a durable and consistent scale for monitoring overloaded and underloaded axle weight.The RoughDeck AX system includes four on/off ramps and two treaded top plate platforms. Two tandem scale platforms provide axle capacity measurement up to 60,000 pounds. Combined with the TuffSeal signal trim junction box and SURVIVOR EL147HE cable, the RoughDeck AX system is the ideal portable solution for onsite vehicle weighing.
The Rice Lake Scale, Axle Roughdeck AX Includes 2 scales (30,000lb each) and 4 ramps # 107637 is manufactured by Rice Lake. Valley Instrument Service is an authorized Rice Lake dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681

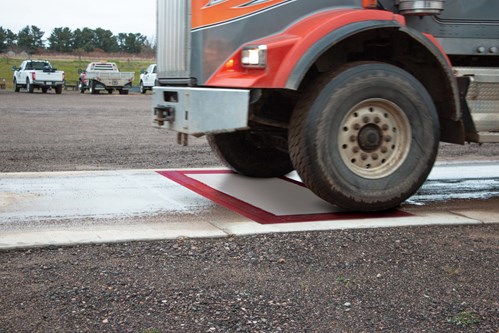

The IM-Axle scale's weighbridge is 120 inches wide and 30 inches long, constructed with SURVIVOR durability for reliable performance in the most demanding conditions. The weighbridge is installed in a shallow pit and the approach on each side must be at least the length of the longest truck being weighed. • Weigh vehicles in motion up to 2-3 mph (constant speed required) • Complete system composed of a weighbridge, 1280 Enterprise weight indicator with in-motion software, speed sensor and LaserLight2 remote display • Software records axle weights and gross weight per truck ID • Concrete deck • 11.2 in profile, pit mounted • +/- 1% total scale capacity on average with proper use and installation

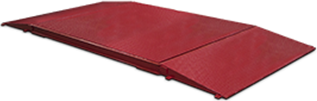

The RoughDeck AX-1 axle scale's double steel decks provide rugged durability in challenging places. • Sizes: 7.5 ft, 9.5 ft or 11.5 ft lengths • Capacity: 50,000 lb • Includes two 1-8 NC eye bolts • Contains four environmentally sealed, IP67, 20,000 lb single-ended load cells • Treaded top plate • JB4SS TuffSeal signal trim top access junction box • Top access foot adjustment holes • Carbon steel captured ball feet • 20 ft SURVIVOR EL147HE cable • Non-Legal for Trade
Rice Lake’s AX3040 is a versatile axle weighing system providing accurate vehicle weights in non-Legal for Trade applications. • Sizes: 7 ft, 12 ft and 14 ft lengths • Steel or aluminum construction • Axle capacity, tandem platforms: 60,000 or 80,000 lb (30,000 or 40,000 lb each) • Includes four 5/8-11 NC eye bolts for lifting scale during installation • Contains two load cells per platform • Treaded top plate with four lifting eyes • JB4SS TuffSeal signal trim junction box • 10 ft EL146HE Interconnect cable with MS-type connectors to go between weigh pads • 50 ft EL147HE cable to connect weigh pad to indicator • Non-Legal for Trade
Mono-metal tuning fork sensor (MMTS) provides quick response and stability • Internal adjustment weight • Anti-electrostatic 360° transparent windshield • Eight-digit, 16.5 mm high liquid crystal display (LCD) with backlight • Single-touch response setting for environment • 40-step bar graph display • RS-232 interface for connecting to printer or PC • ISO/GLP/GMP compliant printing record • Plastic housing • Underweigh hook
