SKU: SDL150

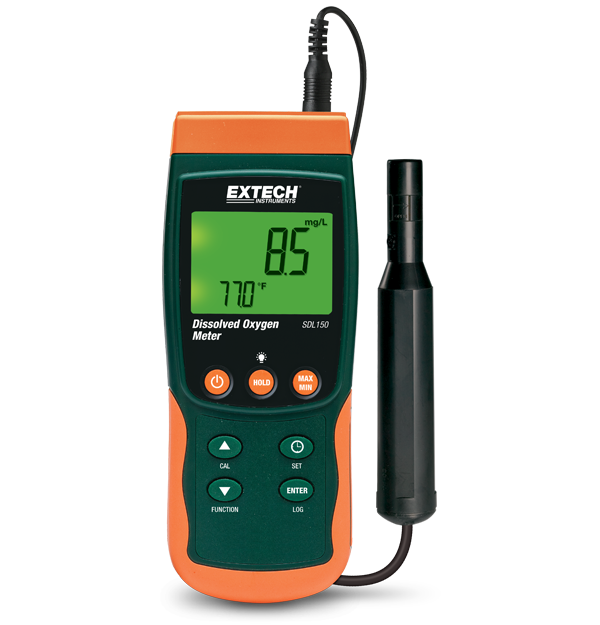

The Extech SDL150 records data on an SD card in Excel format. It has a dual backlit display of oxygen concentration and temperature. It measures dissolved oxygen from 0 mg/L to 20.0 mg/L and 0% to 100.0% oxygen, plus temperature from 0°C to 50°C (32 to 122°F). Includes automatic temperature compensation from 0°C to 50°C via temperature probe sensor built into polarographic type oxygen probe. Offset adjustment used for zero function to make relative measurements. The SDL150 stores 99 readings manually and 20M readings via a 2G SD card. User programmable sampling rate. It has a built-in PC interface, min/max and data hold functions, and an auto power off. Complete with 6 x AA batteries, SD card, probe, two spare replacement membranes, electrolyte, and hard carrying case.
List price. Volume pricing available.
The Extech SDL150 records data on an SD card in Excel format. It has a dual backlit display of oxygen concentration and temperature. It measures dissolved oxygen from 0 mg/L to 20.0 mg/L and 0% to 100.0% oxygen, plus temperature from 0°C to 50°C (32 to 122°F). Includes automatic temperature compensation from 0°C to 50°C via temperature probe sensor built into polarographic type oxygen probe. Offset adjustment used for zero function to make relative measurements. The SDL150 stores 99 readings manually and 20M readings via a 2G SD card. User programmable sampling rate. It has a built-in PC interface, min/max and data hold functions, and an auto power off. Complete with 6 x AA batteries, SD card, probe, two spare replacement membranes, electrolyte, and hard carrying case.
The Extech SDL150 Dissolved Oxygen Meter SD Logger # SDL150 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Dissolved Oxygen (Concentration) | 0 to 20.0 mg/L |
| Dissolved Oxygen (Concentration) Basic Accuracy | ±0.4 mg/L |
| Dissolved Oxygen (Concentration) Max Resolution | 0.1 mg/L |
| Dissolved Oxygen (Saturation) | 0 to 100.0% |
| Dissolved Oxygen (Saturation) Basic Accuracy | ±0.7% |
| Dissolved Oxygen (Saturation) Max Resolution | 0.10% |
| Memory | Stores 99 readings manually and 20M readings via 2G SD card (Excel format) |
| Temperature (Contact) | 32 to 122°F (0 to 50°C) |
| Temperature (Contact) Basic Accuracy | ±0.8°C/1.5°F |
| Temperature (Contact) Max Resolution | 0.1°C/°F |
| Certifications | CE |
| Dimensions | Meter: 7.2 × 2.9 × 1.9" (182 × 73 × 48mm) Probe: Probe: 0.8D × 4.9" L |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 3 years |
| Weight | 25.6oz (725g) |
Recall Min, Max and Average readings. Featuring Data Hold and a Built-in RS-232 PC serial interface with optional data acquisition software and data logger. Auto power off saves battery life. DO measurements from 0 to 20.0 mg/L. Complete with 0.8" (20mm) diameter probe on 13ft (4m) cable, 5 membranes, rubber holster, 9V battery and hard case.
The DO210 is a Dissolved Oxygen Meter which measures DO from 0 to 20.0mg/L, Oxygen Percent from 0 to 100.0% and Temperature with ATC. This meter features Adjustable Altitude and Salinity Compensation as well as min, max and data hold functions. Complete with DO probe with membrane and 39" (1m) cable, two spare replacement membranes, electrolyte, 9V battery and soft case.
The ExStik II DO600 meter displays Oxygen level as percent of Saturation from 0 to 200. 0 percent or Concentration from 0 to 20.00 ppm (mg/L). It features Adjustable Altitude Compensation (0 to 20,000 feet in 1,000 ft. increments), Adjustable Salinity Compensation from 0 to 50 ppt and an analog bargraph for indicating trends. DO600 meter includes a DO electrode, protective sensor cap, spare membrane cap, electrolyte, four 3V CR-2032 batteries, and 48" (1.2m) neck strap.
The Extech DO603 is a replacement screw-on membrane kit for the Dissolved Oxygen sensor (DO605) of a DO600 meter.
