IMT100

Industrial Multi-Tester for PV Systems, EV, Industrial Applications

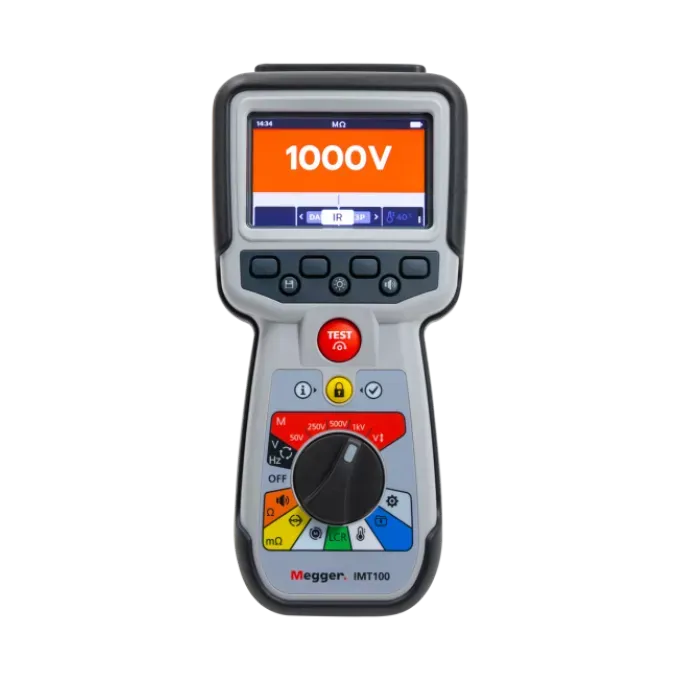

The Megger IMT100 is a versatile hand-held multi testing instrument with dedicated four wire insulation resistance, and four wire Kelvin low resistance features ideal for comprehensive industrial applications. The Megger IMT100 handheld tester has many functions and features providing the capability to accurately test residential and industrial PV systems for continuity measurements, low resistance bonding, open circuit voltage, polarity voltage, blocking diode testing, and diagnostic insulation resistance testing. Accurate testing is critical for both roof top solar panels and large PV arrays on solar farms. The instrument can test insulation resistance from 100Ω up to 200GΩ, with test voltages of 50V, 250V, 500V, 1kV, and selectable variable voltage. The instrument includes a guard terminal and supports several diagnostic insulation resistance functions including spot reading, polarization index ratio, and timed insulation testing.

The Megger IMT100 comes with a unique four-wire digital low resistance function that includes a stable power supply that can deliver 200mA in long circuits with a resistance range from 1mΩ up to 10Ω. The different test modes are selectable through a soft keypad, including bidirectional, unidirectional, automatic, and continuous. The rotary switch and soft keypads for ease-of-operation, and the full color graphic display for taking readings and selecting functions.

The supplied thermocouple (CAT III to 600V) that enables you to test temperature and insulation resistance compensation. The LRC function allows the IMT100 to automatically determine if the main element of the load is inductive, capacitive, or resistive, and displays the result. Also, it provides the ability to select each function and frequency to 120Hz or 1000Hz.

The IMT100 comes with data storage management for up to 256 test results with individual tag names and dates. These can be downloaded to a USB drive and are also accessible within the instrument via a dedicated color-guided recalling test results dashboard.

Key Features

• Versatile multi-tester for PV systems, electric vehicles and industrial applications
• Meets IEC62446 for PV testing, additional tests; UN EEC R100 Regulation for Electric Vehicle testing
• Tests continuity, open circuit, polarity, blocking diode, low resistance bonding, insulation resistance
• DC voltage with polarity test; AC voltage with phase rotation and frequency
• CAT III 600V up to 3000m; Rubber over molded housing for outer protection; Industrial case; IP54
• Data storage management for up to 256 test results
• Voltage range: AC - 10mV to 1000 V; DC - 0 to 1000V; TRMS (15Hz to 400Hz)
• Insulation resistance operation range: 0.10 MO to 1.0 GO (IEC61557-2)
• Continuity measurement 0.01 O to 1MO; Low resistance range 1mO to 10O
• Rotary dial control, soft keys and a full color graphic display; Rechargeable batteries, charger

The Megger IMT100 # 1015-518 is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
