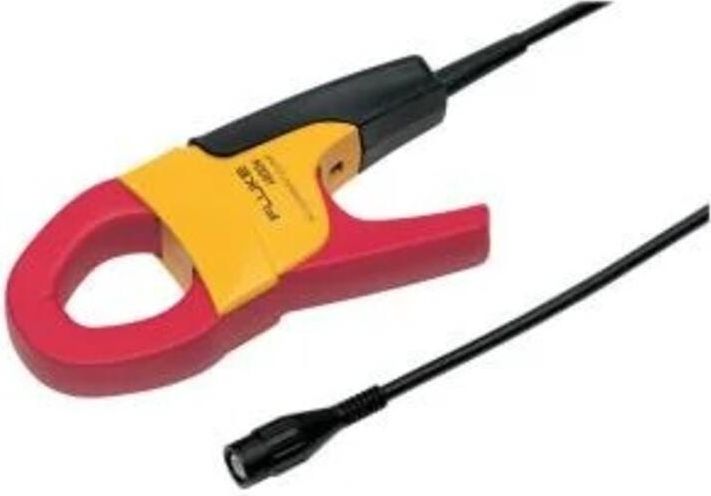

This AC current clamp with BNC output extends the functionality of portable oscilloscopes or power quality meters to measure up to 400 A AC. Buy Online Now.

Key Features

Companion to your scope or power quality meter to measure up to 400 A AC
Only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating
Specially designed to offer maximum utility in a compact shape
Take accurate current readings without breaking the circuit
Soft non-slippery overmold handle
Optional PM9081/001 BNC/Banana adapter for DMM's
Two ranges: 40 A and 400 A, 10 and 1 mV/Amp output
Max. conductor Ø 32 mm

The Fluke i400S AC Current Clamp-on Probe # I400S is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

This AC current clamp with BNC output extends the functionality of portable oscilloscopes or power quality meters to measure up to 400 A AC. Buy Online Now.

Key Features

Companion to your scope or power quality meter to measure up to 400 A AC
Only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating
Specially designed to offer maximum utility in a compact shape
Take accurate current readings without breaking the circuit
Soft non-slippery overmold handle
Optional PM9081/001 BNC/Banana adapter for DMM's
Two ranges: 40 A and 400 A, 10 and 1 mV/Amp output
Max. conductor Ø 32 mm

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

General	Specifications
40 A Range	0.5 A to 40 A
400 A Range	5 A to 400 A
0.5 to 1 A	Unspecified
1 A to 5 A	4°
5 A to 10 A	3°
10 A to 20 A	3°
20 A to 40 A	2°
40 A to 400 A	NA
Crest factor	Safety Specifications
Safety	CAT IV, 600 V, CAT III, 1000 V
Maximum non-destructive current	1000 V AC
Warranty	1 year
Maximum conductor size	32 mm (1.25 inches)
Output cable length	2.5 m (8.2 ft)
BNC adapter	Yes
Dimensions	150 x 70 x 30 mm
Weight	114 g

General	Specifications
40 A Range	0.5 A to 40 A
400 A Range	5 A to 400 A
0.5 to 1 A	Unspecified
1 A to 5 A	4°
5 A to 10 A	3°
10 A to 20 A	3°
20 A to 40 A	2°
40 A to 400 A	NA
Crest factor	Safety Specifications
Safety	CAT IV, 600 V, CAT III, 1000 V
Maximum non-destructive current	1000 V AC
Warranty	1 year
Maximum conductor size	32 mm (1.25 inches)
Output cable length	2.5 m (8.2 ft)
BNC adapter	Yes
Dimensions	150 x 70 x 30 mm
Weight	114 g
