SKU: I3000 FLEX-4PK
The i30 current clamp is based on Hall Effect technology for use in measurement of both DC and AC current.
List price. Volume pricing available.
The i30 current clamp is based on Hall Effect technology for use in measurement of both DC and AC current.

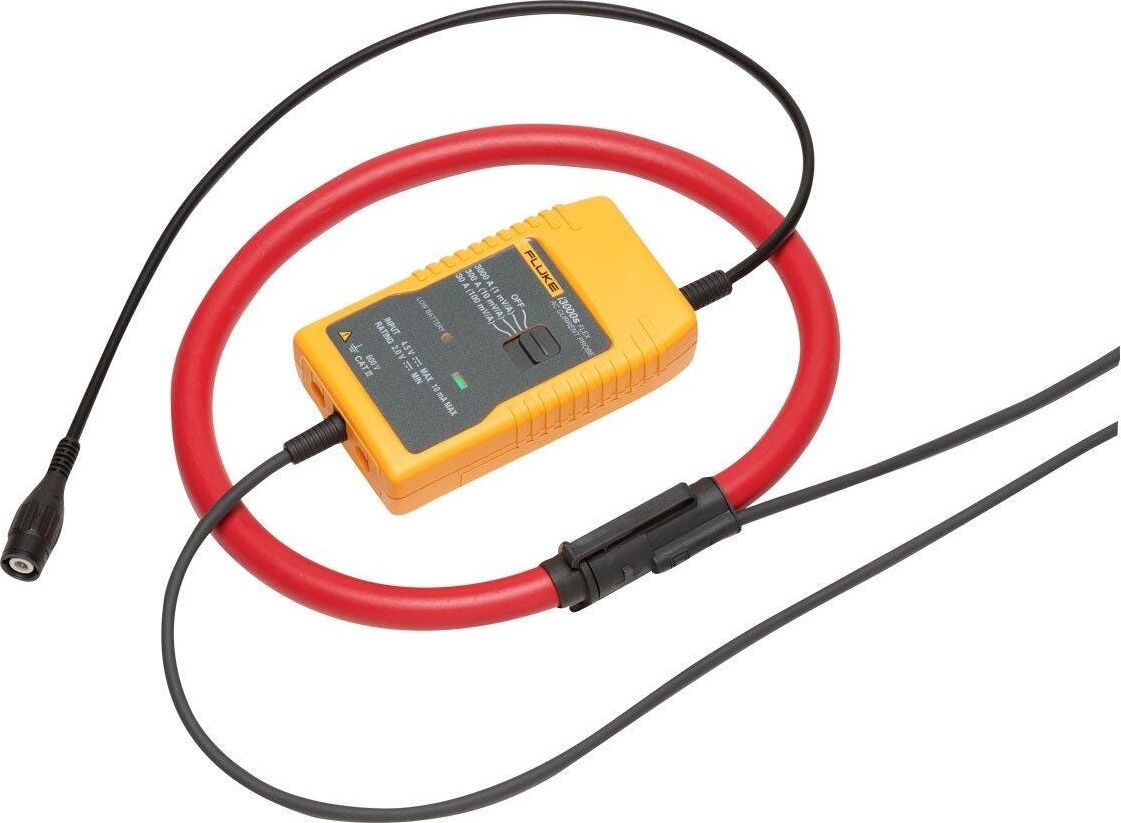

The Fluke i3000 FLEX-4PK AC Current Probe, 4 Pack # I3000 FLEX-4PK is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Electrical Specifications |
| Load impedance | 100 kΩ minimum |
| Accuracy | ±1% of range (45 Hz to 65 Hz) |
| Linearity | ±0.2% of reading |
| Noise | 2 mV AC rms (300 A, 3000 A) |
| Frequency range | 10 Hz to 50 kHz (-3 dB) |
| Phase error | ±10° (at 20 kHz) |
| Position sensitivity (with cable > 25 mm from the coupling) | ±2% of range |
| External field | ±1% of range |
| Power supply | 2 x AA/MN 1500/LR6 Alkaline, 400 hours, low battery indicator |
| Temperature coefficient | ±0.08% of reading per °C |
| Working voltage | 600 V AC rms or DC |
| Head circumference | 610 mm (24in) |
| Head cable diameter | 14.3 mm (0.56in) |
| Head bend radius | 38.1 mm (1.5in) |
| Cable length (head to electronics) | 2 m (6.56 ft) |
| Output connection | 0.5 m cable terminated with safety BNC connector. Supplied with 4mm safety plug adapter |
| Operating temperature range | -20°C to +85°C (-4°F to 185°F) (electronics) |
| Strong temperature range | -20°C to +85°C (-4°F to 185°F) (electronics) |
| Operating humidity | 15% to 85% (non-condensing) |
| Weight | 190 g (0.419 lb) (electronics) |
| Safety standards | BS EN 61010-2-032: 2002 |
| EMC standards | EN 61326: 1998 +A1, A2, and A3 |
| Head cable length (double insulated) | 610 mm or 914 mm, depending on model |
