SKU: I30S
The i30s current clamp is based on Hall Effect technology for use in measurement of both DC and AC current.
List price. Volume pricing available.
The i30s current clamp is based on Hall Effect technology for use in measurement of both DC and AC current.

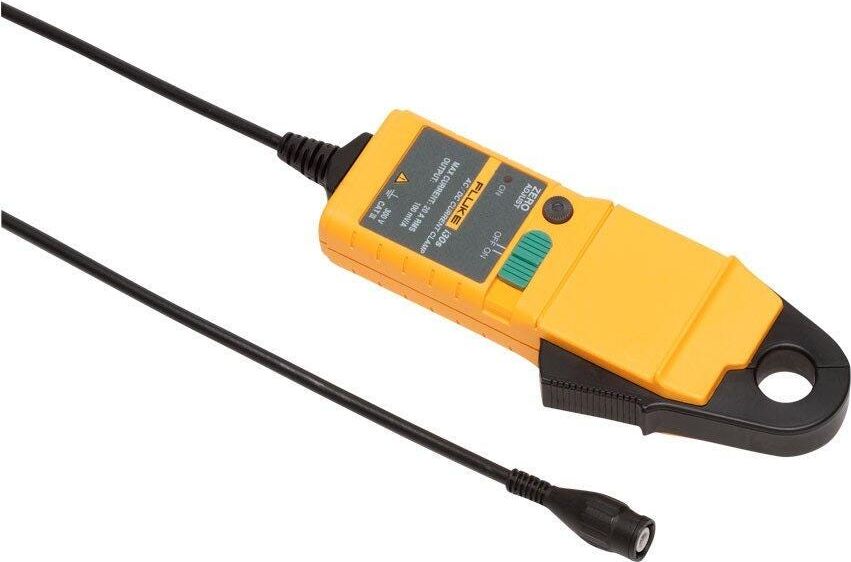

The Fluke i30S AC/DC Current Clamp # I30S is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Electrical specifications |
| Specified current range | 30 mA to 30 A DC, 30 mA to 20 A AC rms |
| Usable current range | 5 mA to 30 A DC, 30 mA to 20 A AC rms |
| Crest factor | 1.4 in |
| Output sensitivity | 100 mV/A |
| Accuracy (at +25°C) | DC ±1 % of reading ±2 mAAC ± 0.5 dB of reading ±2 mA |
| Resolution | ±1 mA |
| Load impedance | > 100 kΩ |
| Conductor position sensitivity | ±1% relative to center reading |
| Frequency range | DC to 100 kHz (-0.5 dB) |
| Phase shift below 1 kHz | < 2° |
| Temperature coefficient | ±0.01% of reading / °C |
| Power supply | 9 V Alkaline, MN1604/PP3, 30 hours, low battery indicator |
| Working voltage (see Safety Standards section) | 300 V AC rms or DC |
| Maximum conductor size | 19 mm diameter |
| Output connection | Safety BNC connector, supplied with safety 4 mm adapter |
| Output zero | Manual adjust via thumbwheel |
| Cable length | 2 m |
| Operating temperature range | 0°C to +50°C |
| Storage temperature range (with battery removed) | -20°C to +85°C |
| Operating humidity | 15% to 85% (non-condensing) |
| Weight | 250 g |
| Safety | IEC 61010-2- 032: CAT III 300V |
| EMC Compatibility | IEC 61326-1: Portable Electromagnetic Environment |
