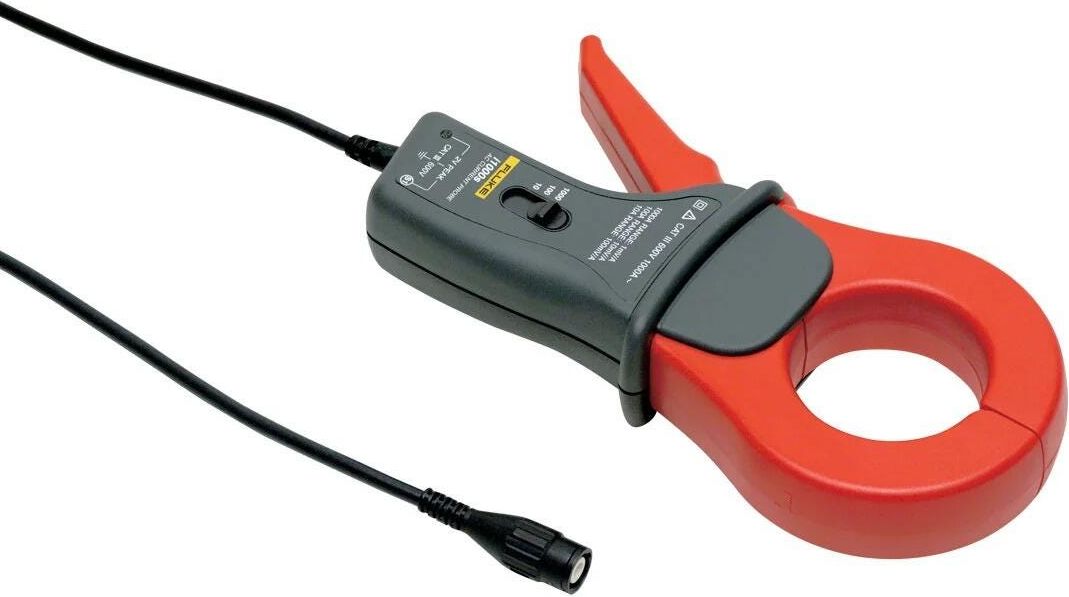

The Fluke i1000s is a clamp-on AC current probe designed to expand oscilloscope applications in industrial and power environments.
List price. Volume pricing available.
The Fluke i1000s is a clamp-on AC current probe designed to expand oscilloscope applications in industrial and power environments.
The Fluke i1000S AC Current Clamp # I1000S is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Specifications |
| Nominal current range | 10 A100 A1000 A |
| Continuous current range | 0.1 A - 10 A0.1 A - 100 A1 A - 1000 A |
| Maximum non-descructive current | 2000 A |
| Lowest measureable current | 0.1 |
| Basic accuracy | 1% + 1 A(48-65 Hz)(% reading + floorspec) |
| Useable frequency | 5 Hz - 100 kHz |
| Output level(s) | 100 mv/A10 mv/A1 mv/A |
| Safety | CAT III, 600 VCAT IV, 300V |
| Maximum voltage | 600 V AC |
| Warranty | 1 year |
| Maximum conductor diameter | 54 mm |
| Output cable length | 1.6 m |
| BNC adapter | Yes |
