SKU: FLUKE-771
Save time & money measuring 4-20 mA without bringing down the system with official Fluke 771 milliamp clamp meter. Get a free demo. Your solution awaits here.
List price. Volume pricing available.
Save time & money measuring 4-20 mA without bringing down the system with official Fluke 771 milliamp clamp meter. Get a free demo. Your solution awaits here.

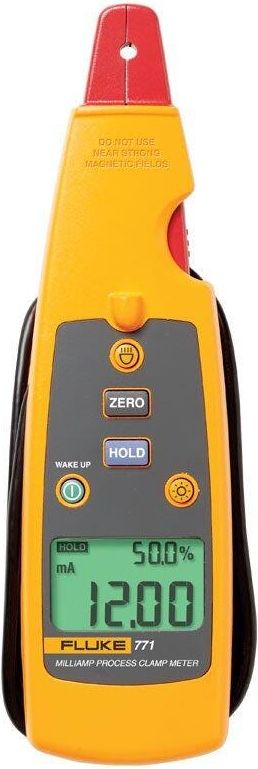

The Fluke 771 Milliamp Process Clamp Meter # FLUKE-771 is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Specifications |
| Diameter of measurable conductor | 0.177 in or 4.5 mm max |
| Operating temperature | -10 to 50°C |
| Storage temperature | -25 to 60°C |
| Operating humidity | < 90% @ < 30°C, < 75% @ 30 to 55°C |
| Operating altitude | 0 to 2000 m |
| IP rating | IP 40 |
| Size | 59 x 38 x 212 mm (2.32 x 1.5 x 8.35 in) |
| Weight | 260 G, (9.1 oz) |
| Vibration | Random 2 g, 5 to 500 Hz |
| Shock | 1 m drop test (except the jaw) |
| EMI/RFI | For current measurement w/ JAW, add 1 mA tospecification for EMC field strengths of 1 V/m up to 3 V/m. |
| Temperature coefficient | 0.01% °C( 28°C) |
| Power, battery life | (2) AA 1.5 V Alkaline, IEC LR6, 40 hours typical |
| Warranty | Three years for electronicsOne year for cable and clamp assembly |
| Resolution / range | 0 to 20.99 mA |
| Accuracy | 0.2% + 2 counts |
