SKU: FLUKE-424D
The Fluke 424D Laser Distance Meter - measures up to 100 m (330 feet). Includes tilt sensor for hard-to-reach measurements, corner angle feature and compass.
List price. Volume pricing available.
The Fluke 424D Laser Distance Meter - measures up to 100 m (330 feet). Includes tilt sensor for hard-to-reach measurements, corner angle feature and compass.
The Fluke 424D Laser Distance Meter - 100 M/330 ft MAX # FLUKE-424D is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Distance Measurement |
| Typical measuring tolerance 1 | ±1.0 mm 3 |
| Maximum measuring tolerance 2 | ±2.0 mm 3 |
| Range At Leica Target Plate GZM26 | 100 m / 330 ft |
| Typical range 1 | 80 m / 260 ft |
| Range at unfavorable condition 4 | 60 m / 195 ft |
| Smallest unit displayed | 6 / 30 / 60 mm (10 / 50 / 100 m) |
| Ø Laser point at distances | 6 / 30 / 60 mm (10 / 50 / 100 m) |
| Measuring tolerance to laser beam 5 | ±0.2° |
| Measuring tolerance to housing 5 | ±0.2° |
| Range | 360° |
| Laser cass | 2 |
| Laser type | 635 nm, < 1 mW |
| Protection class | IP54 |
| Automatic laser off | After 90 seconds |
| Automatic power off | After 180 seconds |
| Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03 | Up to 5,000 measurements |
| Size (L x W x D) | 127 x 56 x 33 mm |
| Weight (with batteries) | 158 g |
| Temperature range Storage operation | -10°C to +50°C (14°F to +122°F) |
| Calibration cycle | Tilt and compass |
| Maximum altitude | 3000 m |
| Maximum relative humidity | 85% at 20°F to 120°F (-7°C to 50°C) |
| Safety | EN60825-1:2007 (Class II) |
| EMC | EN 61000-4-3:2010 |

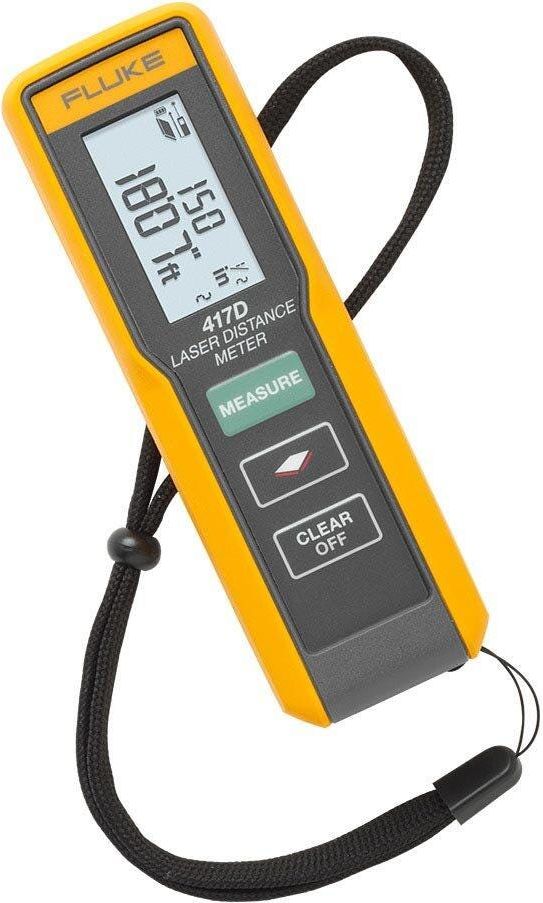

The durable Fluke 417D laser distance meter measures a range up to 40 meters. Fast and easy to use, choose the Fluke laser meter to improve accuracy and reduce measurement error.
