SKU: MS420

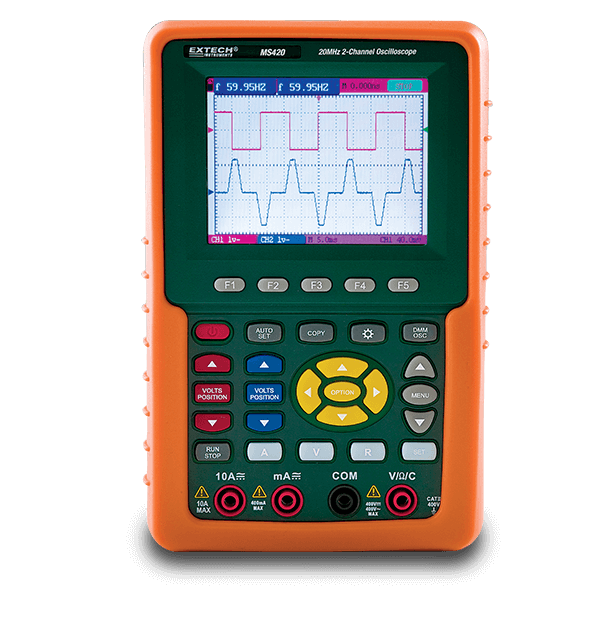

Extech's MS420 20 MHz 2-Channel Digital Oscilloscope offers a range of capabilities for effective troubleshooting of electronics and electronically controlled electrical systems. With 20 MHz bandwidth and conveniences like auto-set which optimizes the position, range, time base, and triggering to assure a stable display of virtually any waveform, the MS420 can be used in field repairs or bench duty. To identify subtle problems, Peak Detect features a fast 50 ns glitch capture. Core functions like XY Mode, FFT function, Trigger Hold off, Waveform Math, Averaging Mode and Persistence Mode all ensure you can confidently troubleshoot problems using a variety of approaches. To start up recurring testing routines, you can store and recall up to 4 waveform screens and setups to save time from job to job. This CAT II-rated oscilloscope extends its functionality with complete DMM functions that are displayed on the large 3. 8" (97mm) color LCD display. The MS420 comes with two 1X/10X oscilloscope probes, test leads, Windows XP/Vista compatible USB software and cable, capacitor measuring module, adjustment screwdriver, AC adaptor/charger, hard carrying case, user manual, and manufacturer's two-year limited warranty.
List price. Volume pricing available.
Extech's MS420 20 MHz 2-Channel Digital Oscilloscope offers a range of capabilities for effective troubleshooting of electronics and electronically controlled electrical systems. With 20 MHz bandwidth and conveniences like auto-set which optimizes the position, range, time base, and triggering to assure a stable display of virtually any waveform, the MS420 can be used in field repairs or bench duty. To identify subtle problems, Peak Detect features a fast 50 ns glitch capture. Core functions like XY Mode, FFT function, Trigger Hold off, Waveform Math, Averaging Mode and Persistence Mode all ensure you can confidently troubleshoot problems using a variety of approaches. To start up recurring testing routines, you can store and recall up to 4 waveform screens and setups to save time from job to job. This CAT II-rated oscilloscope extends its functionality with complete DMM functions that are displayed on the large 3. 8" (97mm) color LCD display. The MS420 comes with two 1X/10X oscilloscope probes, test leads, Windows XP/Vista compatible USB software and cable, capacitor measuring module, adjustment screwdriver, AC adaptor/charger, hard carrying case, user manual, and manufacturer's two-year limited warranty.
The Extech MS420 Oscilloscope, 20 MHz # MS420 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| AC Current | 40mA, 300mA, 20A |
| AC Voltage | 400mV, 4V, 40V, 400V |
| Capacitance | 51.2nF to 100µF |
| Continuity | Yes |
| Cursor Measurement | Voltage and time |
| DC Current | 40mA, 300mA, 20A |
| DC Voltage | 400mV, 4V, 40V, 400V |
| Diode Test | Yes |
| Frequency Bandwidth | 20MHz |
| Glitch Capture | 50ns |
| Input Impedance | 1MΩ/20pF |
| Input Voltage | 400V (peak) |
| Memory | 6K points per channel |
| Number of Channels | 2 |
| PC Interface | USB |
| Resistance | 400Ω, 4kΩ, 40kΩ, 400kΩ, 40MΩ |
| Risetime | 17.5ns |
| Sample Mode(s) | Sample, Average, Peak Detect |
| Sampling Rate | 100MS/s |
| Timebase Range | 5ns to 5s/div |
| Trigger Coupling | AC, DC |
| Trigger Mode(s) | Free Run, Single Shot, Edge, Video |
| Trigger Source | CH1, CH2 |
| True RMS | Yes |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 5mV to 5V/div |
| Certifications | CE |
| Dimensions | 7 × 4.4 × 1.6" (180 × 113 × 40mm) |
| Display | 3.8" (96mm) color LCD (320 x 240 pixels) |
| Power | Li-ion rechargeable battery, AC/DC power adaptor/charger |
| Safety Category | CATII - 400V |
| Warranty | 2 years |
| Weight | 24.3oz (690g) |
