SKU: EMF510

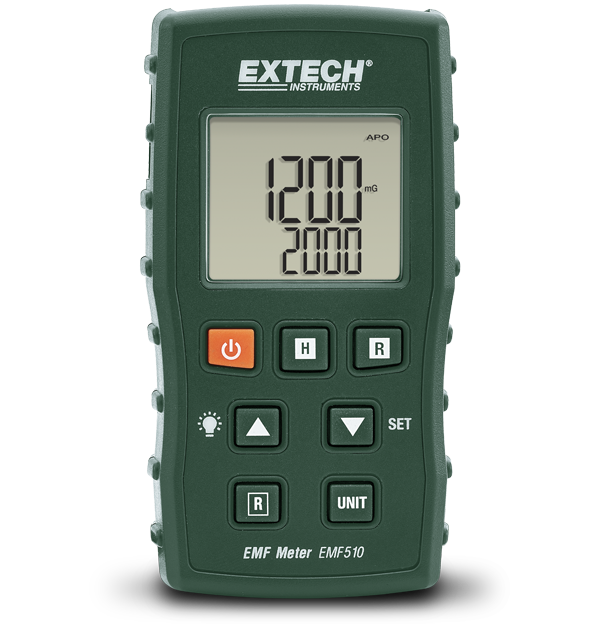

The Extech EMF510 measures energy from electromagnetic fields (EMF) and electrical signals and is sensitive to extremely low frequency levels (ELF). The built-in single-axis sensor is ideal for monitoring power lines, electrical appliances, fans and blowers, and electrical circuits in two ranges with milli-Gauss and micro-Tesla units. The EMF510 features a large backlit LCD for viewing in dimly lit areas, an ergonomic compact design with wrist strap, auto power off, and Min/Max function.
List price. Volume pricing available.
The Extech EMF510 measures energy from electromagnetic fields (EMF) and electrical signals and is sensitive to extremely low frequency levels (ELF). The built-in single-axis sensor is ideal for monitoring power lines, electrical appliances, fans and blowers, and electrical circuits in two ranges with milli-Gauss and micro-Tesla units. The EMF510 features a large backlit LCD for viewing in dimly lit areas, an ergonomic compact design with wrist strap, auto power off, and Min/Max function.
The Extech EMF510 EMF/Elfmeter # EMF510 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Electromagnetic Field (Gauss) | 200.0/2000mG |
| Electromagnetic Field (Gauss) Basic Accuracy | ±(5% of reading + 3 digits) @ 50/60Hz |
| Electromagnetic Field (Gauss) Max Resolution | 0.1/1mG |
| Electromagnetic Field (Tesla) | 20.00/200.0µT |
| Electromagnetic Field (Tesla) Basic Accuracy | ±(5% of reading + 3 digits) @ 50/60Hz |
| Electromagnetic Field (Tesla) Max Resolution | 0.01/0.1µT |
| Frequency Bandwidth | 30 to 300Hz |
| Number of Axes | Single axis |
| Certifications | CE |
| Dimensions | 4.2 × 2.3 × 1" (107 × 58 × 25mm) |
| Power | 3 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 5.6oz (160g) |
Accessories, replacement sensors, and parts for this product family.
The Extech 380465 is a Kelvin Clip Test Lead Set for Milliohm Meter Models 380460 and 380462. The 380465 is built from compact, durable field service housing with a protective cover.

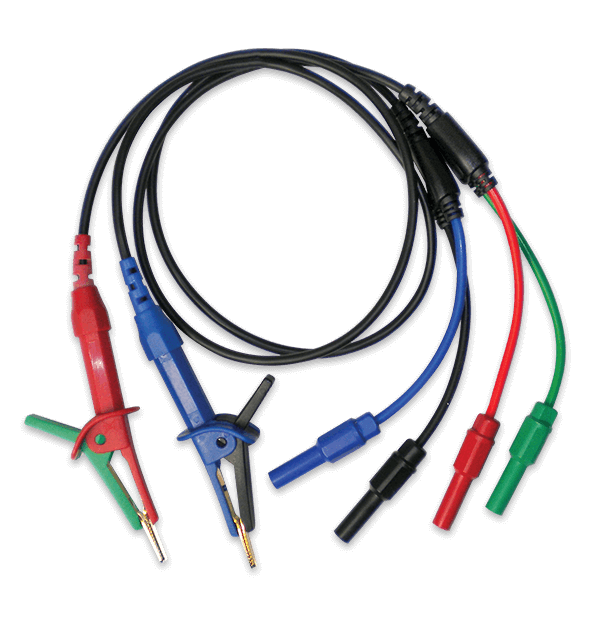

The 380565 is a set of Test Leads with Kelvin Clips for the Extech 380580 battery powered milliohm meter. Use these test leads and kelvin clips as extras or spare.

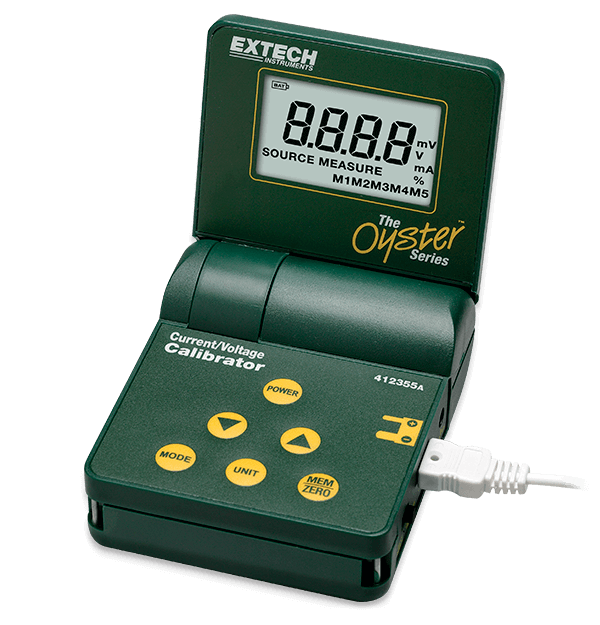

Precision source for calibrating process devices and measuring DC process signals from 0 to 24mA or as mV in voltage ranges with a super large LCD that displays readings in mA, as a percent of the 0 to 24mA range or as mV in voltage ranges. Additional features include Touch Keypad and five stored calibration values for fast calibrations. Complete with 9V Battery, calibration cable with spade lug terminals, carrying case, neck strap, and AC Power Adapter.

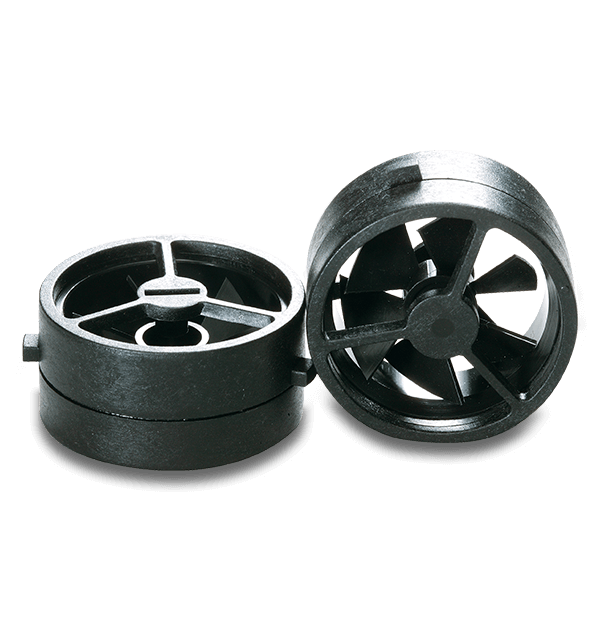

The Extech 45116 is a pair of replacement impellers for the 45118 Anemometer.
