SKU: DL160

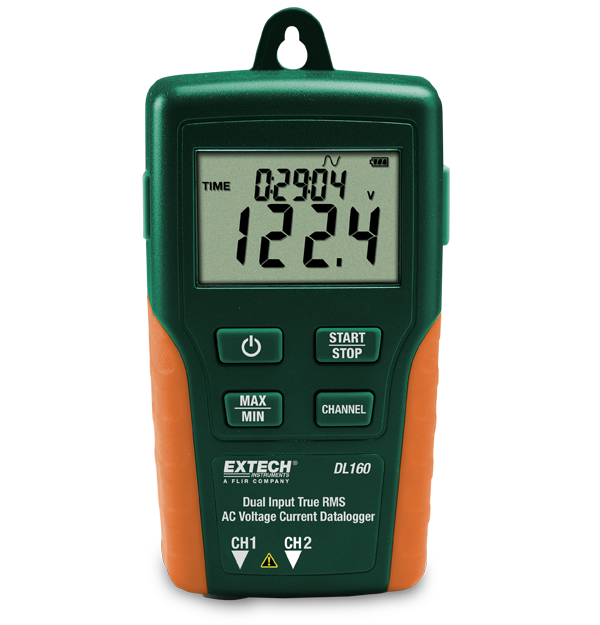

The DL160 is a Dual Input True RMS AC Voltage/Current Data logger. Simultaneously data log 2 channels of up to 256,000 readings of TRMS AC Voltage (600V) or Current (200A) or one AC Voltage and one AC Current input with a user programmable sample rate from 1 second to 24 hours. LCD displays time/date, current reading, and min/max. Readings can be downloaded to your PC via the USB interface. Featuring Normal, Peak, and Capture (user specified trigger level) recording modes. Complete with 2 current clamps, two sets of test leads, 2 sets of alligator clips, software, USB cable, Universal AC Adapter, and 4 x AAA and 2 x CR2032 Batteries.
List price. Volume pricing available.
The DL160 is a Dual Input True RMS AC Voltage/Current Data logger. Simultaneously data log 2 channels of up to 256,000 readings of TRMS AC Voltage (600V) or Current (200A) or one AC Voltage and one AC Current input with a user programmable sample rate from 1 second to 24 hours. LCD displays time/date, current reading, and min/max. Readings can be downloaded to your PC via the USB interface. Featuring Normal, Peak, and Capture (user specified trigger level) recording modes. Complete with 2 current clamps, two sets of test leads, 2 sets of alligator clips, software, USB cable, Universal AC Adapter, and 4 x AAA and 2 x CR2032 Batteries.
The Extech DL160 AC Voltage/Current Datalogger # DL160 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| AC Current | 10 to 200A |
| AC Current Basic Accuracy | ±(2% of reading ± 1A) |
| AC Current Max Resolution | 0.1A |
| AC Voltage | 10 to 600V |
| AC Voltage Basic Accuracy | ±(2% of reading ±1V) |
| AC Voltage Max Resolution | 0.1V |
| Memory | 262,000 points (single channel), 131,000 (dual channels) |
| PC Interface | USB |
| Sampling Rate | 1 second to 24 hours |
| True RMS | Yes |
| Certifications | CE |
| Dimensions | 4.5 × 2.5 × 1.3" (114 × 63 × 34mm) |
| Power | 4 × AAA (1.5V) batteries |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 8.7oz (248g) |
