SKU: TRM50

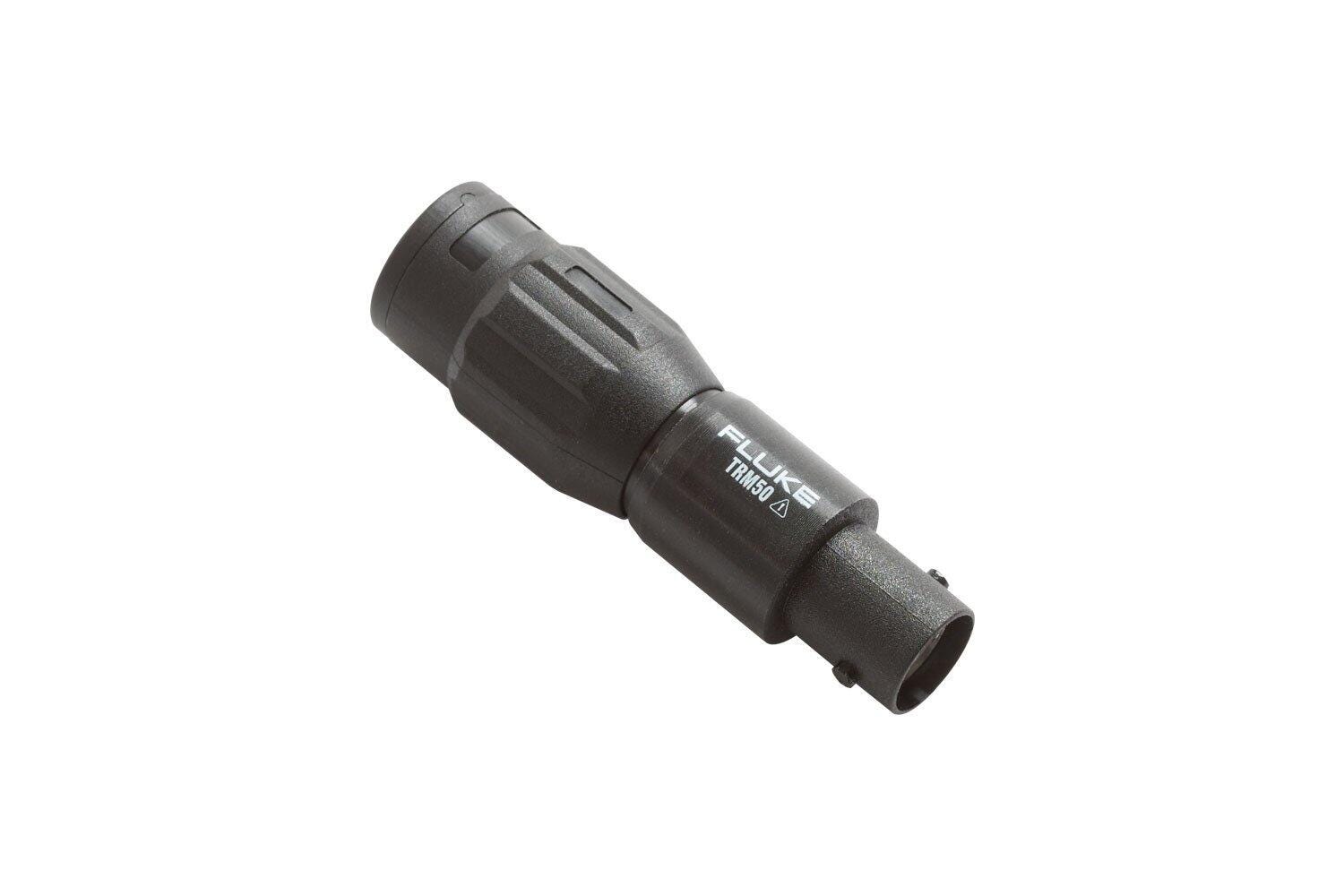

TRM50 Coaxial Feed-Through BNC Male to BNC Female Cable Terminator for ScopeMeter 190 Series Portable Oscilloscopes
List price. Volume pricing available.
TRM50 Coaxial Feed-through BNC male to BNC female Cable Terminator For ScopeMeter 190 Series Portable Oscilloscopes
The Amprobe 50 Ohm Feed-Through Terminator BNC, Set of 2 # TRM50 is manufactured by Amprobe. Valley Instrument Service is an authorized Amprobe dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Specifications |
| Connector type | BNC-male to BNC-female |
| Impedance | 50 Ohm |
| Impedance accuracy | ± 1% |
| Frequency range | up to 500 MHz |
| Voltage ratio | 1:1 (output/input) |
| Voltage Standing Wave Ratio (VSWR) | < 1:1.15 at 500 MHz |
| Max signal voltage | 7 Vrms |
| Max Voltage over ground | 1000 V CAT III |
| Max power | 1 W |
| Overall length | 53 mm (2.1 in.) |
Light-Check Adapter Kit US w/Carrying Case
Barcode Scanner 1250G Black Incl USB Cable
25-meter test lead for Amprobe AT-series Advanced Wire Tracers. Extends the standard transmitter-to-target reach for long runs.

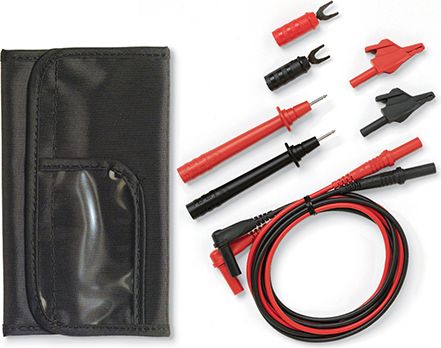

Amprobe basic deluxe test lead kit. Includes test leads, alligator clips, and replaceable probe tips for general electrical test work.
