SKU: TTMS-206A-G1/2-LI6-H1140-L300/I250-0/500
-70…500 °C · Current output (2-wire) · G 1/2″ male thread
List price. Volume pricing available.

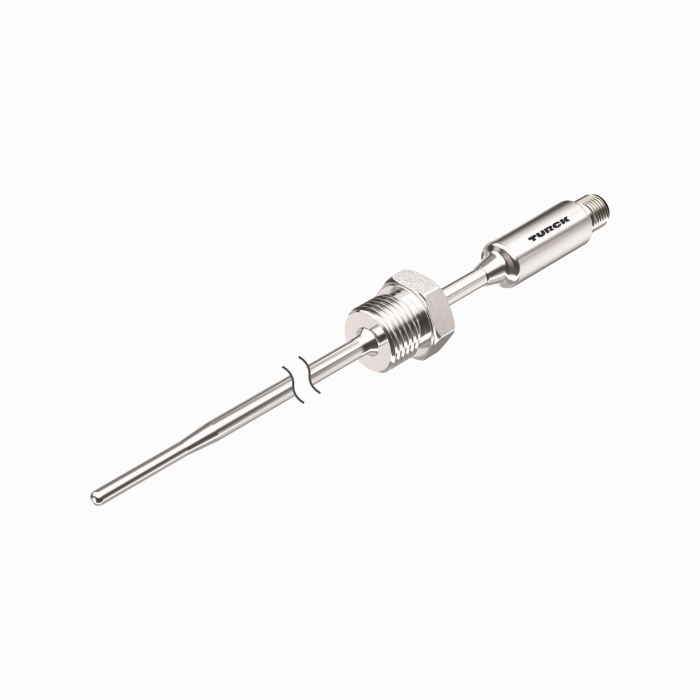

Temperature Detection — With Current Output
The Turck Temperature Detection - With Current Output # TTMS-206A-G1/2-LI6-H1140-L300/I250-0/500 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101496369 |
| eCl@ss-Code (V5.1.4) | 27200206 -/- Transducer (temperature) |
| Customs tariff number | 8536504000 |
| Country of origin | DE |
| Weight | 141 g |
| Detection type | medium contact |
| Design | Without display (integrated probe) |
| Measuring range | -70…500 °C |
| Process connection | G 1/2″ male thread |
| Operating voltage | 5…32 VDC |
| Electrical output | Current output (2-wire) |
| Current output | 4…20 mA |
| Measuring element | Pt1000 |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless steel, 1.4404 (AISI 316L) |
| Ambient temperature | -40…+80 °C |
| Protection class | IP67 |
| Approvals | CE |
