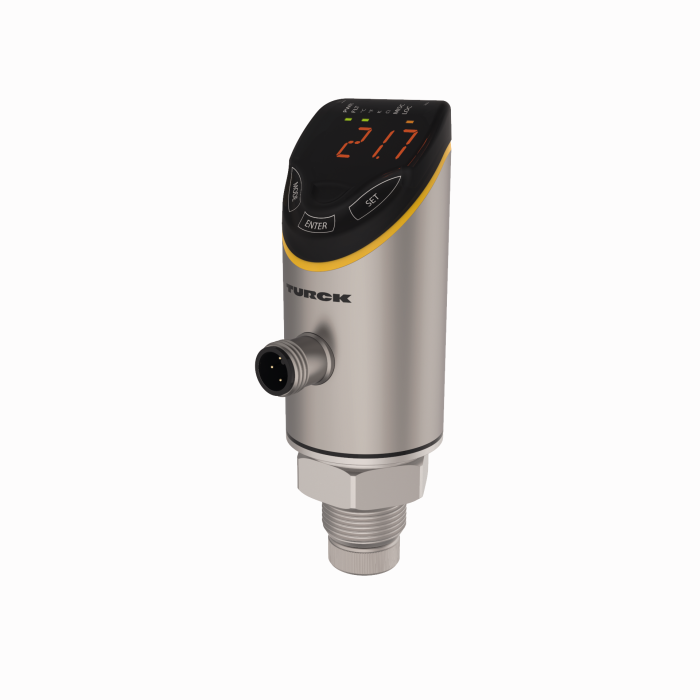

Temperature Detection — With 2 PNP/NPN Transistor Switching Outputs

Processor unit for connecting sensors from the TP product series
Automatic probe detection
4-digit, 2-color (red/green), 12-segment display, rotatable by 180°
Housing upper section rotatable by 340°
Compatible with the following temperature sensors:
Resistance Temperature Detector (RTD) — Pt100 (2-, 3-, 4-wire) — Pt1000 (2-, 3-, 4-wire)
Thermocouples (TC) — type K, B, E, J, N, R, S and T
10…33 VDC
NO/NC contact, PNP/NPN output, IO-Link
Various IO-Link mapping profiles can be selected

The Turck Temperature Detection - With 2 PNP/NPN Transistor Switching Outputs # TS720-2UPN8-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

Temperature Detection - With 2 PNP/NPN Transistor Switching Outputs

SKU: TS720-2UPN8-H1141

2 × switching output, IO-Link

$447.80

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

Temperature Detection — With 2 PNP/NPN Transistor Switching Outputs

Processor unit for connecting sensors from the TP product series
Automatic probe detection
4-digit, 2-color (red/green), 12-segment display, rotatable by 180°
Housing upper section rotatable by 340°
Compatible with the following temperature sensors:
Resistance Temperature Detector (RTD) — Pt100 (2-, 3-, 4-wire) — Pt1000 (2-, 3-, 4-wire)
Thermocouples (TC) — type K, B, E, J, N, R, S and T
10…33 VDC
NO/NC contact, PNP/NPN output, IO-Link
Various IO-Link mapping profiles can be selected

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

EAN	4047101482904
eCl@ss-Code (V5.1.4)	27200206 -/- Transducer (temperature)
Customs tariff number	9026204000
Country of origin	DE
Weight	293 g
Detection type	medium contact
Design	With display (external probe)
Operating voltage	10…33 VDC
Electrical output	2 × switching output, IO-Link
Communication protocol	IO-Link
Electrical connection	Connector, M12 × 1
Housing material	Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5
Ambient temperature	-40…+80 °C
Protection class	IP66/IP67/IP69K
Approvals	CE, cULus

EAN	4047101482904
eCl@ss-Code (V5.1.4)	27200206 -/- Transducer (temperature)
Customs tariff number	9026204000
Country of origin	DE
Weight	293 g
Detection type	medium contact
Design	With display (external probe)
Operating voltage	10…33 VDC
Electrical output	2 × switching output, IO-Link
Communication protocol	IO-Link
Electrical connection	Connector, M12 × 1
Housing material	Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5
Ambient temperature	-40…+80 °C
Protection class	IP66/IP67/IP69K
Approvals	CE, cULus
