SKU: TS700-L050-16-LI2UPN8-H1141
-50…150 °C · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 1/2″ NPT male thread
List price. Volume pricing available.

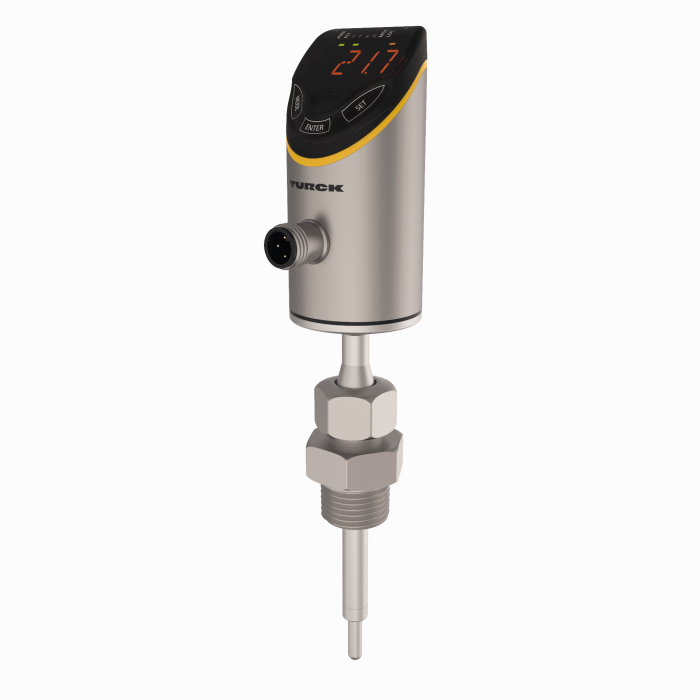

Temperature Detection — With Current or Voltage Output and PNP/NPN Transistor Switching Output
The Turck Temperature Detection - With Current or Voltage Output and PNP/NPN Transistor Switching Output # TS700-L050-16-LI2UPN8-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101498561 |
| eCl@ss-Code (V5.1.4) | 27200206 -/- Transducer (temperature) |
| Customs tariff number | 9026204000 |
| Country of origin | DE |
| Weight | 391 g |
| Detection type | medium contact |
| Design | With display (integrated probe) |
| Measuring range | -50…150 °C |
| Immersion depth L | 50 mm |
| Process connection | 1/2″ NPT male thread |
| Operating voltage | 17…33 VDC |
| Electrical output | Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link |
| Voltage output | 0…10 V |
| Current output | 4…20 mA |
| Communication protocol | IO-Link |
| Measuring element | Pt1000 |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5 |
| Ambient temperature | -40…+80 °C |
| Protection class | IP66/IP67/IP69K |
| Approvals | CE, cULus |
