SKU: TP-104A-N1/4-H1141-L005
-50…120 °C · Resistance · 1/4″ NPT
List price. Volume pricing available.

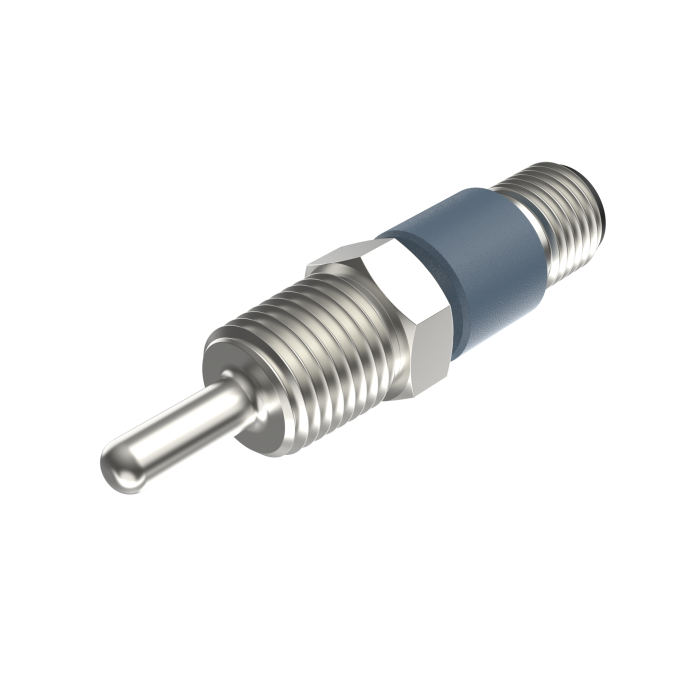

Temperature Detection — Probe
The Turck Temperature Detection - Probe # TP-104A-N1/4-H1141-L005 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101275285 |
| eCl@ss-Code (V5.1.4) | 27200208 -/- Temperature measurement electrical complete |
| Customs tariff number | 8536504000 |
| Country of origin | DE |
| Weight | 32 g |
| Detection type | medium contact |
| Design | Temperature probe |
| Measuring range | -50…120 °C |
| Immersion depth L | 5 mm |
| Process connection | 1/4″ NPT |
| Electrical output | Resistance |
| Measuring element | Pt100 |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless steel, 1.4404 (AISI 316L) |
| Ambient temperature | -40…+120 °C |
| Protection class | IP67 |
| Approvals | cULus |
