SKU: TG54-2

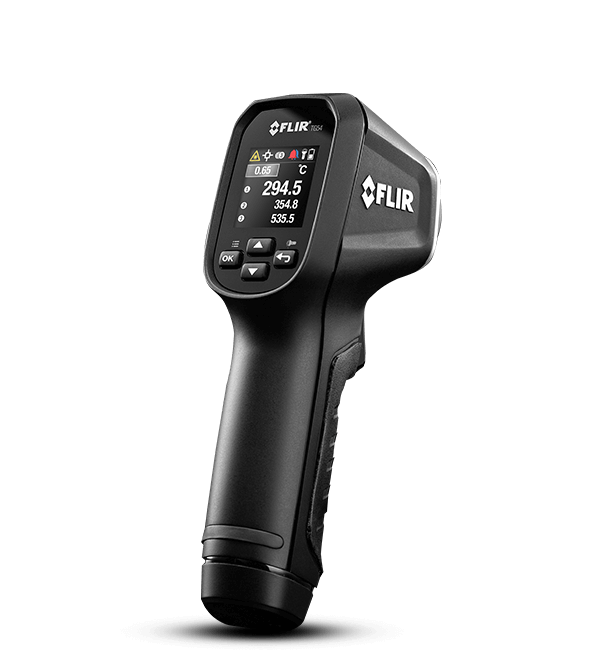

The FLIR TG54-2 provides non-contact temperature readings so you can swiftly and effortlessly take measurements without compromising on safety. Providing a distance-to-spot ratio of 20:1, the TG54-2 can measure smaller targets from a safer distance. Achieve pinpoint precision with infrared technology, Class II laser sighting, and a maximum IR temperature of 850°C (1562°F). For reliable performance in demanding applications, the thermometer is built to withstand a drop of 3 m (9.8 ft) and is IP65 rated.
List price. Volume pricing available.
The FLIR TG54-2 provides non-contact temperature readings so you can swiftly and effortlessly take measurements without compromising on safety. Providing a distance-to-spot ratio of 20:1, the TG54-2 can measure smaller targets from a safer distance. Achieve pinpoint precision with infrared technology, Class II laser sighting, and a maximum IR temperature of 850°C (1562°F). For reliable performance in demanding applications, the thermometer is built to withstand a drop of 3 m (9.8 ft) and is IP65 rated.
The FLIR TG54-2: 20:1 Spot IR Thermometer # TG54-2 is manufactured by FLIR. Valley Instrument Service is an authorized FLIR dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Distance to Spot Ratio (D:S) | 20:1 |
| Basic Accuracy | 0°C to 100°C (32°F to 212°F): ±1.0°C (±1.8°F) |
| Emissivity | 0.01 to 1.00 with 5 presets |
| Display | 1.57” Color EBTN |
| IR Range | -30°C to 850°C (-22°F to 1562°F) |
| Laser Orientation | Single point laser to upper edge of measurement |
| Laser Power | ≤1mW, Class II |
| Resolution | 0.1°C / 0.1°F |
| Spectral Response | 8 µm to 14 µm |
| AVG | Last 20 readings |
| Differential (MAX/MIN) | Yes |
| Max/Min | Min/Max/Avg/Dif |
| Measurement Resolution | 0.1°C / 0.1°F |
| Response | 250 Milliseconds |
| Memory | 2 × 99 sets data storage |
| Auto Power Off | 5 or 15 seconds (selectable) |
| Continuous Run Time | 8 hours maximum continuous temperature measurements |
| Power Source | 9V alkaline battery (included) |
| Alarm | High and low alarms with programmable set points |
| Alarm Alert | HI or LO will flash on the display |
| Data Logging | Manual and automatic data logger |
| Dimensions (L x W x H) | 192 mm × 94 mm × 64 mm (7.5 in × 3.7 in × 2.5 in) |
| Includes | Spot IR Thermometer, 9V battery, Quick Start Guide and Storage Pouch |
| Locking System | Yes |
| Scanning Mode | Yes |
| Weight | 292 g (10.3 oz) |
| Worklights | Yes |
| Certifications | CE, UKCA, RCM, WEEE and FDA |
| Drop test | 3 m (9.8 ft) |
| IP Rating | IP65 |
This product is part of a family with 2 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
TG54-2Current | Request Quote | Viewing |
TG54-2-NIST | Request Quote | View Details → |
