SKU: RPM10

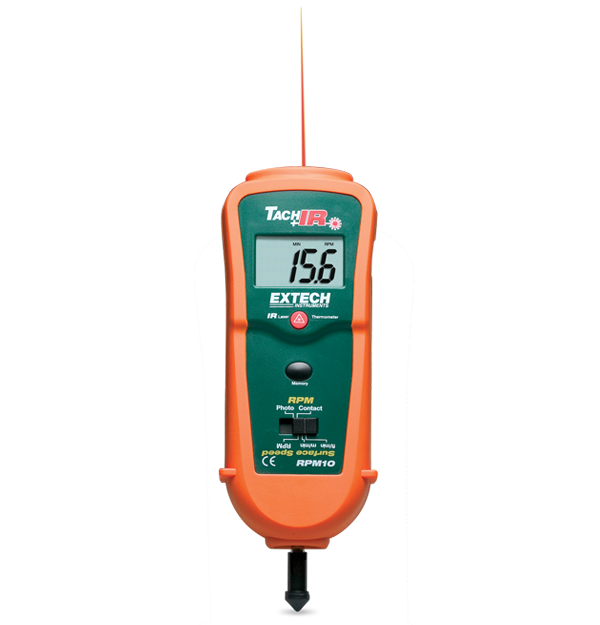

The RPM10 is a combination tachometer which provides both contact and non-contact RPM measurements, making this device useful in virtually all applications. The RPM10 also features a built-in IR thermometer with laser pointer for measuring surface temperature from -4 to 600 degrees F (-20 to 315 degrees C), making it ideal for checking the operating temperature of motors, bearings and machinery. Complete with wheels for linear surface speed (0.2 to 6560 ft. /minute; 0.05 to 1999.9 m/minute) or RPM measurements, 4 AA batteries, 23 in. (0.6 m) reflective tape, carrying case, and user manual.
List price. Volume pricing available.
The RPM10 is a combination tachometer which provides both contact and non-contact RPM measurements, making this device useful in virtually all applications. The RPM10 also features a built-in IR thermometer with laser pointer for measuring surface temperature from -4 to 600 degrees F (-20 to 315 degrees C), making it ideal for checking the operating temperature of motors, bearings and machinery. Complete with wheels for linear surface speed (0.2 to 6560 ft. /minute; 0.05 to 1999.9 m/minute) or RPM measurements, 4 AA batteries, 23 in. (0.6 m) reflective tape, carrying case, and user manual.
The Extech RPM10 Tachometer & IR Thermometer # RPM10 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Rotation Speed (Contact) | 0.5 to 20,000rpm |
| Rotation Speed (Contact) Basic Accuracy | ±(0.05% of reading + 1 digit) |
| Rotation Speed (Contact) Max Resolution | 0.1rpm |
| Rotation Speed (Strobe) | 10 to 99,999rpm |
| Rotation Speed (Strobe) Basic Accuracy | ±(0.05% of reading + 1 digit) |
| Rotation Speed (Strobe) Max Resolution | 0.1rpm |
| Surface Speed (Contact) | 0.2 to 6560ft/min, 0.05 to 1999.9m/min |
| Surface Speed (Contact) Basic Accuracy | ±(0.05% of reading + 1 digit) |
| Temperature (IR) Basic Accuracy | -4 to 600 °F (-20 to 315 °C) |
| Certifications | RPM10-NIST_S: CE, NIST / RPM10_S: CE |
| Dimensions | 8.5 × 2.6 × 1.5" (216 × 66 × 38mm) |
| Power | 4 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 10.6oz (300g) |
This product is part of a family with 2 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
RPM10Current | Request Quote | Viewing |
RPM10-NIST | Request Quote | View Details → |
