SKU: PRC20

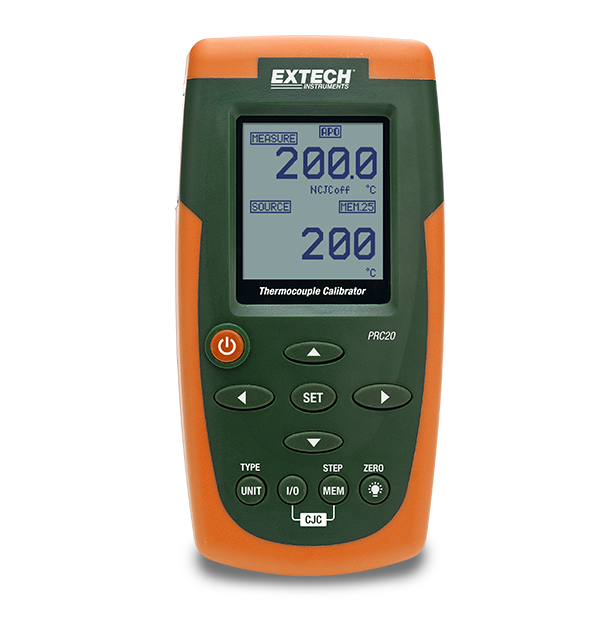

The PRC20 sources and measures eight thermocouple type devices (J, K, T, E, C, R, S and N) and provides precision output displayed as Centigrade/Fahrenheit or mV. It has five user adjustable calibration presets and a Type K temperature range of -58 to 2498 degrees F (-50 to 1370 degrees C). The PRC20 is suitable for Lab and field calibration, Engineering research and design, Manufacturing and test engineering, Temperature control process troubleshooting and HVAC applications. Comes with thermocouple calibration cable with subminiature connectors, standard calibration cable with subminiature connectors, 100V-240V AC universal adaptor with four plugs, six 1.5-volt AA batteries, hard case, and user manual.
List price. Volume pricing available.
The PRC20 sources and measures eight thermocouple type devices (J, K, T, E, C, R, S and N) and provides precision output displayed as Centigrade/Fahrenheit or mV. It has five user adjustable calibration presets and a Type K temperature range of -58 to 2498 degrees F (-50 to 1370 degrees C). The PRC20 is suitable for Lab and field calibration, Engineering research and design, Manufacturing and test engineering, Temperature control process troubleshooting and HVAC applications. Comes with thermocouple calibration cable with subminiature connectors, standard calibration cable with subminiature connectors, 100V-240V AC universal adaptor with four plugs, six 1.5-volt AA batteries, hard case, and user manual.
The Extech PRC20 Microprocessor Calibrator/Thermometer # PRC20 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Input Impedance | 10 MΩ |
| Sampling Rate | 4 times/second |
| Temperature (Type C) Basic Accuracy | 32 to 3182 °F (0 to 1750 °C) |
| Temperature (Type C) Max Resolution | 0.05% of reading ±1° |
| Temperature (Type E) | 0.5° |
| Temperature (Type E) Basic Accuracy | -58 to 1382 °F (-50 to 750 °C) |
| Temperature (Type J) | 0.1° (up to 999.9°) or 1° (over 999.9°) |
| Temperature (Type J) Basic Accuracy | -58 to 1832 °F (-50 to 1000 °C) |
| Temperature (Type J) Max Resolution | 0.05% of reading ±1° |
| Temperature (Type K) Basic Accuracy | 0.1° (up to 999.9°) or 1° (over 999.9°) |
| Temperature (Type K) Max Resolution | -58 to 2498 °F (-50 to 1370 °C) |
| Temperature (Type N) | 0.05% of reading ±1° |
| Temperature (Type N) Basic Accuracy | 0.1° (up to 999.9°) or 1° (over 999.9°) |
| Temperature (Type N) Max Resolution | -58 to 2372 °F (-50 to 1300 °C) |
| Temperature (Type R) | 0.05% of reading ±1° |
| Temperature (Type R) Basic Accuracy | 1° |
| Temperature (Type R) Max Resolution | 32 to 3182 °F (0 to 1750 °C) |
| Temperature (Type S) | 0.05% of reading ±1° |
| Temperature (Type S) Basic Accuracy | 1° |
| Temperature (Type S) Max Resolution | 32 to 3182 °F (0 to 1750 °C) |
| Temperature (Type T) | 0.05% of reading ±1° |
| Temperature (Type T) Basic Accuracy | 0.5° |
| Temperature (Type T) Max Resolution | -184 to 752 °F (-120 to 400 °C) |
| Temperature [IR] | 0.05% of reading ±1° |
| Temperature [Type K] | 0.1° (up to 999.9°) or 1° (over 999.9°) |
| Voltage | -10.00mV to +60.00mV |
| Voltage Basic Accuracy | ±(0.01% of reading + 1 digit) |
| Voltage Max Resolution | 0.01mV |
| Certifications | CE |
| Dimensions | 6.3 × 3.2 × 1.7" (159 × 80 × 44mm) |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 8oz (225g) |
