SKU: RTD-10W

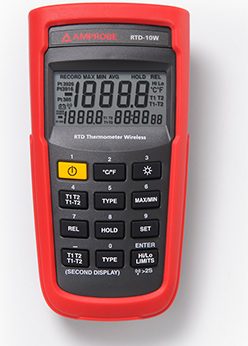

RTD Thermometer Wireless
List price. Volume pricing available.
The Amprobe RTD Thermometer Wireless # RTD-10W is manufactured by Amprobe. Valley Instrument Service is an authorized Amprobe dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Resistance | Nominal 100 Ω |
| Temperature coefficient | 0.00385 Ω/Ω ºC nominal |
| Temperature range | -200 C to 300 ºC (transition and cable temperature: 0 ºC to 25% ºC) |
| Drift rate | + 0.13 ºC at 0 ºC after 1000 hours at 300 ºC |
| Sheath Material | 316 stainless steel |
| Leads | PTFE-insulated, nickel-plated stranded copper, 22 AWG |
| Termination | 4-wire banana |
| Time constant | Four seconds maximum for 63.2% response to step change in water moving at 3 fps |
| Bending radius | 19 mm (3/4 in) except for 50 mm (2 in) area of sheath near tip |
| Calibration | Includes manufacturer’s NIST-traceable calibration and table with R vs. T values in 1 ºC increments from -196 ºC to 300 ºC. Callendar-van Dusen coefficients included |
| Immersion | At least 100 mm (4 in) recommended |
| Accuracy (includes calibration uncertainty and short-term stability) | ±0.50 ºC at -196 ºC±0.050 ºC at 0 ºC±0.052 ºC at 200 ºC±0.055 ºC at 300 ºC |
| Size | 9 in L x 3/16 in diameter |
| Marking | Each RTD is marked with the Fluke name and part number |
This product is part of a family with 2 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
RTD-10 | Request Quote | View Details → |
RTD-10WCurrent | Request Quote | Viewing |
