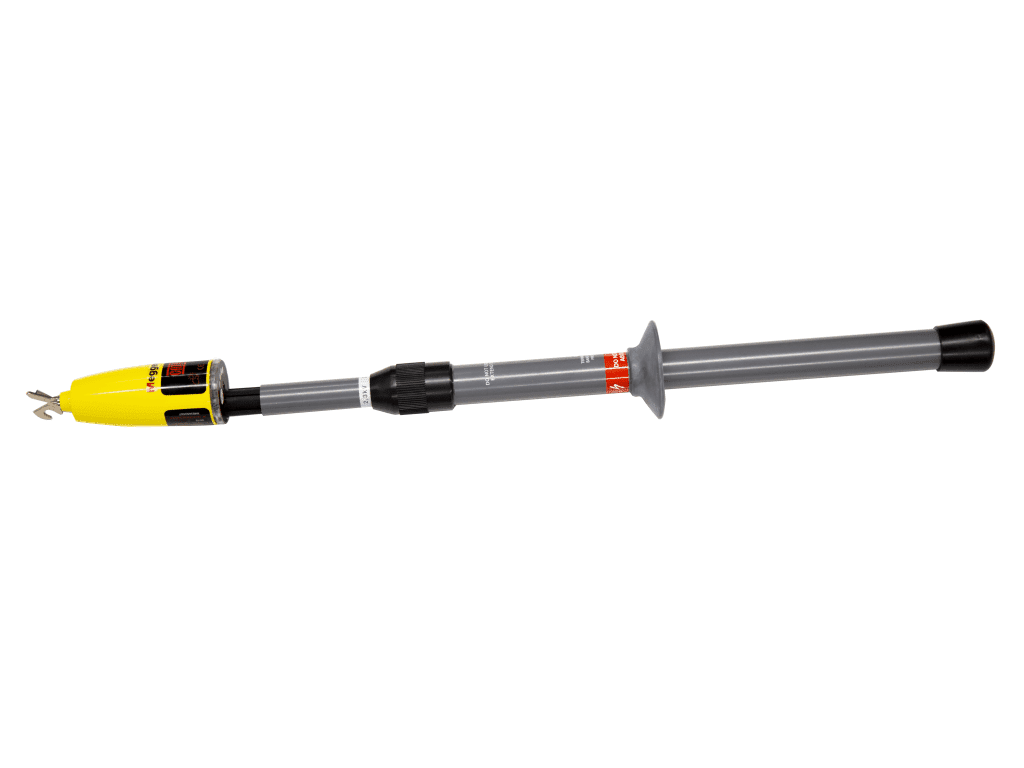

Detex Voltage Detector, 3.6-36.5 kV (Indoor, White LED)

Name: Valley Instrument Service
Address: 3536 Brian Way, Bakersfield, CA, 93308, US
Telephone: (661) 327-8681

SKU: 514440-3

Indoor non-contact voltage detector for grounded AC systems, 3.6-36.5 kV operating range. Bright white LED indicator (no audible beeper) for clear visibility in poor indoor lighting. Integrated 48 in (1219 mm) telescopic pole retracts to 34 in for storage. Self-test pushbutton verifies operation before use. Vinyl carrying case included.

$2,100.00

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

DETEX Voltage Detector, White LED Indicator

The Megger 514440-3 is a DETEX white LED indicating voltage detector designed for use in indoor testing of grounded AC systems. The detector is equipped with a 48-inch telescopic pole that retracts to 34 inches for convenient storage in the included vinyl carrying case.

The bright LED indicator provides easy visibility in poor lighting conditions. During testing, the presence of voltages within the detector's operating range (3.6 to 36.5 kV) will illuminate the bright LED lamp.

A built-in piezoelectric voltage source provides a test feature to ensure that the detector is operative before use. The self-test is activated by a pushbutton.

DETEX Voltage Detectors are available in seven models that cover a range from distribution class to transmission line voltages up to 550 kV. Megger offers six electronic “beeper” models and one model with a white LED indication for greater visibility when testing indoors.

Key Features

White LED indicating voltage detector for greater visibility
Operating voltage range: 3.6 to 36.5 kV
Minimum voltage (phase to ground): 2.1 kV
Nominal system voltage range, 50/60 Hz (phase to phase): 4.16 to 34.5 kV
48-inch telescopic pole
Designed for indoor testing of grounded AC systems
Self-test feature ensures the detector is operative before use
Pole retracts to 34-inches for convenient storage
Vinyl carrying case included

The Megger Detex Voltage Detector, 3.6-36.5 kV (Indoor, White LED) # 514440-3 is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

This product is part of a family with 7 models. Select a model below to view details.

Model	Description	Price
514360-8	Utility-grade non-contact voltage detector for verifying de-energized status on grounded AC systems, 2.3-7.2 kV operating range. Single red LED + audible beeper for clear indication of phase-to-ground voltage. Universal spline fitting attaches to a hot stick rated for the system voltage (hot stick sold separately). Conforms to IEC 61243-1 and ANSI C84.1-1982.	Request Quote	View Details →
514440-3Current	Indoor non-contact voltage detector for grounded AC systems, 3.6-36.5 kV operating range. Bright white LED indicator (no audible beeper) for clear visibility in poor indoor lighting. Integrated 48 in (1219 mm) telescopic pole retracts to 34 in for storage. Self-test pushbutton verifies operation before use. Vinyl carrying case included.	Request Quote	Viewing
514360-5	Utility-grade non-contact voltage detector for verifying de-energized status on grounded AC systems, 4.0-14.5 kV operating range. Single red LED + audible beeper for clear indication of phase-to-ground voltage. Universal spline fitting attaches to a hot stick rated for the system voltage (hot stick sold separately). Conforms to IEC 61243-1 and ANSI C84.1-1982.	Request Quote	View Details →
514360-6	Utility-grade non-contact voltage detector for verifying de-energized status on grounded AC systems, 11.7-36.2 kV operating range. Single red LED + audible beeper for clear indication of phase-to-ground voltage. Universal spline fitting attaches to a hot stick rated for the system voltage (hot stick sold separately). Conforms to IEC 61243-1 and ANSI C84.1-1982.	Request Quote	View Details →
514360-7	Utility-grade non-contact voltage detector for verifying de-energized status on grounded AC systems, 24.3-72.5 kV operating range. Single red LED + audible beeper for clear indication of phase-to-ground voltage. Universal spline fitting attaches to a hot stick rated for the system voltage (hot stick sold separately). Conforms to IEC 61243-1 and ANSI C84.1-1982.	Request Quote	View Details →
514242-1	Utility-grade non-contact voltage detector for verifying de-energized status on grounded AC systems, 67-235 kV operating range. Four red LEDs + audible beeper for visibility at hot-stick distance on transmission lines. Universal spline fitting attaches to a hot stick rated for the system voltage (hot stick sold separately). Conforms to IEC 61243-1 and ANSI C84.1-1982.	Request Quote	View Details →
514242-2	Utility-grade non-contact voltage detector for verifying de-energized status on grounded AC systems, 200-550 kV operating range. Four red LEDs + audible beeper for visibility at hot-stick distance on transmission lines. Universal spline fitting attaches to a hot stick rated for the system voltage (hot stick sold separately). Conforms to IEC 61243-1 and ANSI C84.1-1982.	Request Quote	View Details →
