VF5 Non-Contact AC Voltage Detector with Flashlight

Name: Valley Instrument Service
Address: 3536 Brian Way, Bakersfield, CA, 93308, US
Telephone: (661) 327-8681

SKU: 1013-098

Non-contact AC voltage detector with bright LED tip, audible sounder, and vibration alert. Two ranges (12-1000 V low, 100-1000 V medium) plus integrated white LED torch for poorly-lit work.

$450.00

List price. Volume pricing available.

Qty:

Authorized Dealer

Calibration Available

Nationwide Shipping

Expert Support

AC Voltage Detector with Flashlight

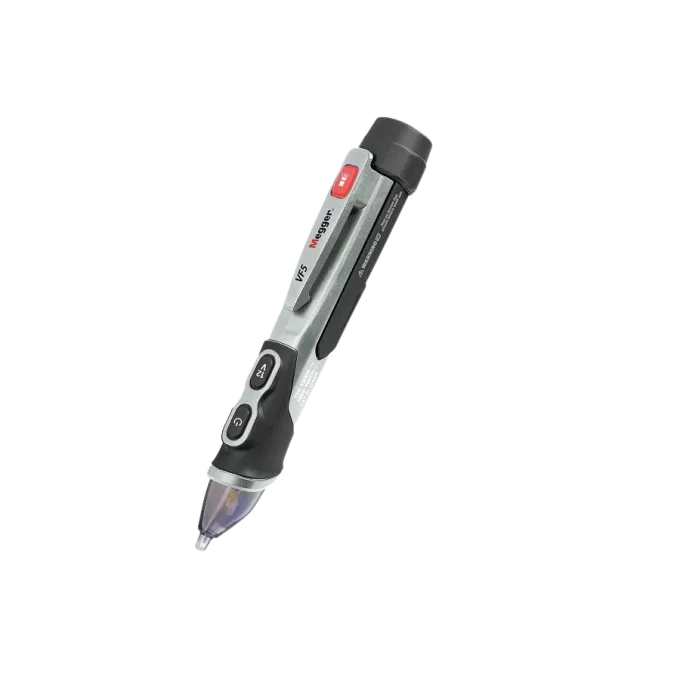

The Megger VF5 Voltage Detector is intended to be used to check for the presence of AC voltage, indicated by a bright red LED situated within the white nylon tip, an audible sounder, plus vibration alert. The detector has both low voltage (12V to 1000V) and medium voltage (100V to 1000V) ranges. The VF5 has the added advantage of a bright-white LED torch for use in poor light.

Suitable for identifying live conductors, finding a break in a conductor or verifying a blown fuse while in a circuit, and detecting AC voltage at socket outlets, switches, circuit breakers, fuses, cables, and luminaires.

Key Features

AC non-contact voltage detector
12V to 1000V voltage range
Visual, audible and vibration warning of low and medium voltages
Durable rubber over-moulded body
Screw-on battery cover
Built-in bright-white LED torch
CAT IV 1000V

The Megger VF5 Non-Contact AC Voltage Detector with Flashlight # 1013-098 is manufactured by Megger. Valley Instrument Service is an authorized Megger dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

This product is part of a family with 8 models. Select a model below to view details.

Model	Description	Price
1013-835	Identifies the individual fuse or circuit breaker feeding a circuit. Transmitter connects via 4 mm leads or supplied crocodile clips; receiver auto-tunes sensitivity and pinpoints the breaker with LED + audible indication.	Request Quote	View Details →
1016-151	Non-contact AC voltage detector with built-in IR temperature measurement — Megger's first to combine both. Red LED tip, audible sounder, and vibration alert across 12-1000 V (low) and 100-1000 V (medium) ranges, plus white LED torch.	Request Quote	View Details →
1013-098Current	Non-contact AC voltage detector with bright LED tip, audible sounder, and vibration alert. Two ranges (12-1000 V low, 100-1000 V medium) plus integrated white LED torch for poorly-lit work.	Request Quote	Viewing
1013-097	EX-rated non-contact AC voltage detector for hazardous-area work (gas platforms, petrochemical environments). Indicates AC presence with red LED, audible alert, and vibration; includes white LED torch. Low (12-1000 V) and medium (100-1000 V) voltage ranges.	Request Quote	View Details →
1013-189	CAT IV 1000 V, IP64 two-pole voltage tester with LCD + LED display. Measures 12-1000 V AC and 0-1500 V DC plus continuity to 500 kΩ. Phase rotation test, single-pole indication, integrated torch, and warning behavior even with depleted batteries.	Request Quote	View Details →
1001-561	Multi-function proving unit for verifying that voltage detectors, two-pole testers, and multimeters respond correctly across AC and DC ranges before use.	Request Quote	View Details →
1013-547	Locates wooden studs, metal joists, or live AC cables behind drywall and other building materials. Three depth ranges, LED + audible indication, and live-cable detection. Ships with protective carry pouch.	Request Quote	View Details →
1001-612	Three-phase rotation indicator showing phase sequence direction (L1-L2-L3) for verifying motor and supply phasing on three-phase circuits.	Request Quote	View Details →

Accessories, replacement sensors, and parts for this product family.

Model	Description	Price
1013-365	CAT IV 1000 V GS38-compliant finger-guard probe tips for the Megger TPT320 / TPT420 two-pole voltage testers. Pack of 10.	Request Quote	View Details →
1013-548	Protective carry pouch for the Megger MSL10 stud locator. Shields wall-contact pads from damage during transport.	Request Quote	View Details →
1007-289	Replacement probe tip and crocodile clip set for the Megger PSI410 phase sequence indicator.	Request Quote	View Details →
2005-536	Carry pouch for the Megger TPT320 and TPT420 two-pole voltage testers.	Request Quote	View Details →
