SKU: SP505

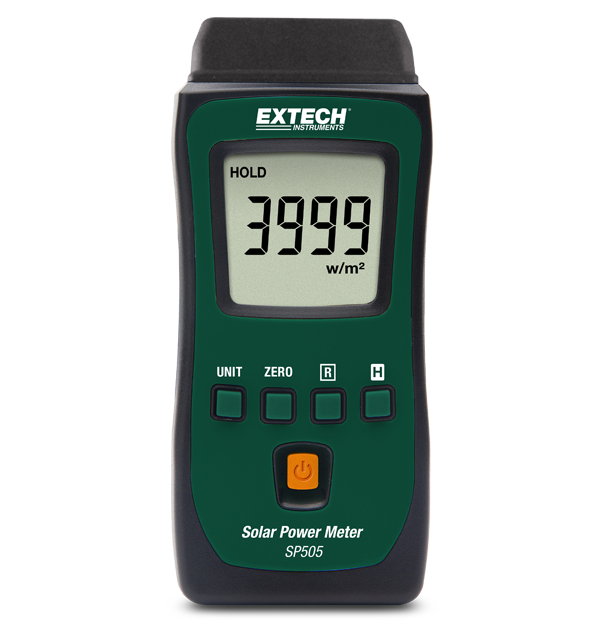

Extech’s SP505 measures solar power level from sunlight outdoors to determine the best location of solar panel and solar water heater installations. It is also used indoors by window manufacturers, the automotive industry, and remodeling home owners to check the level of solar radiation transmission through various glass thicknesses and degrees of tinting to use for window installations. The convenient, pocket-sized meter with a built-in precision solar light sensor is easy-to-use wherever you go.
List price. Volume pricing available.
Extech’s SP505 measures solar power level from sunlight outdoors to determine the best location of solar panel and solar water heater installations. It is also used indoors by window manufacturers, the automotive industry, and remodeling home owners to check the level of solar radiation transmission through various glass thicknesses and degrees of tinting to use for window installations. The convenient, pocket-sized meter with a built-in precision solar light sensor is easy-to-use wherever you go.
The Extech SP505 Light Meter, Pocket Solar # SP505 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Solar Power | 3999 W/m², 634 BTU/(ft²×h) |
| Solar Power Basic Accuracy | ±10 W/m², ±3 BTU/(ft²×h) or ±5% (whichever is greater) |
| Solar Power Max Resolution | 1 W/m², 1 BTU/(ft²×h) |
| Spectral Response | 400 nm to 1100 nm |
| Certifications | CE |
| Dimensions | 4.3 × 1.9 × 1" (108 × 48 × 23mm) |
| Power | 2 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 2.8oz (80g) |
Meter features fast/slow response time and an analog output (1mV per count) for capturing readings to a recorder. Comes complete with 9-Volt battery.
This 407026 Heavy Duty Light Meter has 4 lighting type settings for enhanced accuracy (Tungsten/Daylight, Fluorescent, Sodium, Mercury). Additional features include Data Hold, Min/Max/Average, Auto power off and a % reading of the differential from a reference point. Built-in RS-232 interface with optional Data Acquisition Software and Data logger. Complete with 9V battery, light sensor with 45" (1.1m) cable, protective cover, and holster with stand.
The EA30 Light meter sports a compact and rugged design and features a large display. Multiple wide measuring ranges: 40,000Fc in 4 ranges and 400,000Lux in 5. Data hold freezes reading on display MIN/MAX readings. Zero function Cosine and color corrected measurements. Low battery and overrange indication. Auto power off to save battery life. Meter utilizes precision silicon photodiode sensor with 3ft coiled cable for easy storage. Complete with built-in stand, remote sensor with protective cover, protective rubber holster and 6 AAA batteries.
This compact and ruggedly designed meter has a wide measurement range to 99,990 Foot Candles in 5 ranges and 999,990 Lux in 5 ranges with 0.001Fc/0.01Lux resolution. Features include: Store and Recall up to 50 measurements with relative or real time clock stamp, Luminous intensity (candela) calculation, a ripple function that excludes stray light from the primary light source measurement, Multi-point average function, Timed Hold, Relative measurement in absolute value or % deviation, Comparator function with high/low alarms, and Auto Power Off with disable. Complete with built-in stand, light sensor and protective cover with 36” (0.9m) coiled cable, protective holster, 6 AAA batteries, and carrying case.
