SKU: TX721-P3CV01
21 ″ · ARM Cortex A9, Quad core 800 MHz · TX700 · Capacitive, Glass front
List price. Volume pricing available.

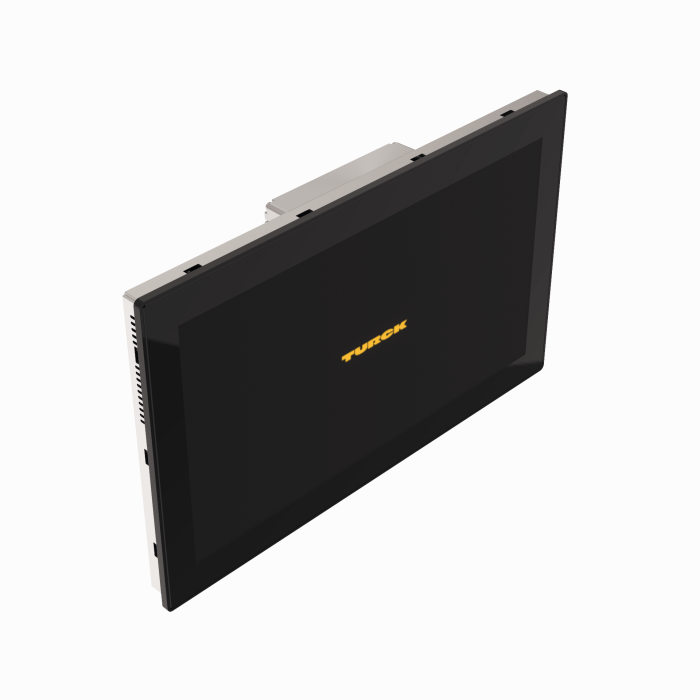

TX700 HMI/PLC Series — 21” Display - Codesys V3 PLC with TARGET and WEB VISU — High-Quality Metal Housing and Glass Front with a Capacitive Touch
The Turck TX700 HMI/PLC Series - 21” Display - Codesys V3 PLC with TARGET and WEB VISU # TX721-P3CV01 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101456400 |
| eCl@ss-Code (V5.1.4) | 27242302 -/- Graphic panel (display and console) |
| Customs tariff number | 8536504000 |
| Country of origin | DE |
| Weight | 8580 g |
| Product Family | TX700 |
| Device function | HMI/PLC |
| Diagonal screen size | 21 ″ |
| Touchscreen | Capacitive, Glass front |
| Application area | Factory Automation |
| Format | 16:9 |
| Processor | ARM Cortex A9, Quad core 800 MHz |
| Memory | 8 GB Flash |
| RAM memory | 2048 MB |
| Programming | CODESYS V3 |
| Fieldbus master | PROFINET, EtherNet/IP, Modbus TCP, Modbus RTU, CANopen, SAE J1939, EtherCAT |
| Fieldbus slave | Modbus TCP, Modbus RTU, PROFINET |
| Protection class | IP66 front, IP20 rear |
