Safety Technology — Switch Box for Disconnecting the Actuator Voltage V2

Die-cast aluminum housing
7/8" males, 4-pin, for power supply
Electromechanical switch-off box
Voltage V2 disconnected by external safety module via M12 input
Feedback circuit for monitoring by external safety module via M12 output
Disconnection up to PLe in accordance with EN ISO 13849-1 possible

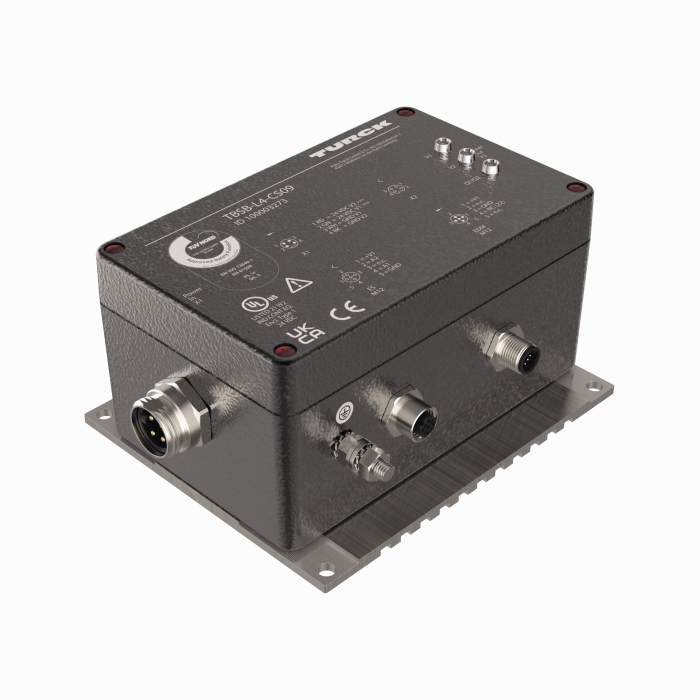

The Turck Safety Technology - Switch Box for Disconnecting the Actuator Voltage V2 # TBSB-L4-CS09 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

Safety Technology — Switch Box for Disconnecting the Actuator Voltage V2

Die-cast aluminum housing
7/8" males, 4-pin, for power supply
Electromechanical switch-off box
Voltage V2 disconnected by external safety module via M12 input
Feedback circuit for monitoring by external safety module via M12 output
Disconnection up to PLe in accordance with EN ISO 13849-1 possible

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

EAN	4047101477337
eCl@ss-Code (V5.1.4)	27371690 -/- Relay (safety technology)
Customs tariff number	9026204000
Country of origin	DE
Weight	1896 g
Ambient temperature	-25…+40 °C
Protection class	IP65
Approvals	CE

EAN	4047101477337
eCl@ss-Code (V5.1.4)	27371690 -/- Relay (safety technology)
Customs tariff number	9026204000
Country of origin	DE
Weight	1896 g
Ambient temperature	-25…+40 °C
Protection class	IP65
Approvals	CE
