SKU: RU300D-M30M-LIU8X2-H1141
300…3000 mm · M30 x 1.5 · PNP/NPN, analog output · Connector, M12 × 1
List price. Volume pricing available.

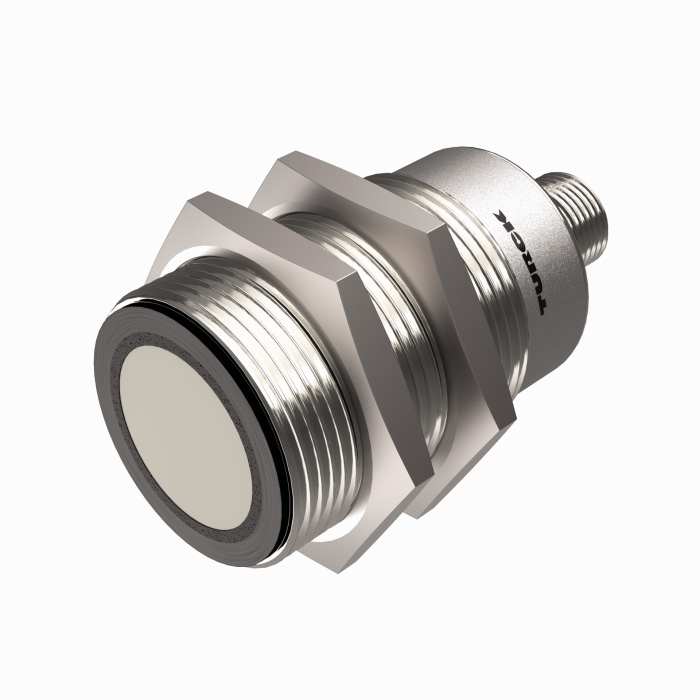

Ultrasonic Sensor — Diffuse Mode Sensor
The Turck Ultrasonic Sensor - Diffuse Mode Sensor # RU300D-M30M-LIU8X2-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101596465 |
| eCl@ss-Code (V5.1.4) | 27272803 -/- Ultrasonic proximity switch |
| Customs tariff number | 9025194000 |
| Country of origin | DE |
| Weight | 118 g |
| Function | Proximity |
| Operating mode | Time of Flight |
| Design | Threaded barrel |
| Construction size | M30 x 1.5 |
| Radiation direction | straight |
| Range | 300…3000 mm |
| Resolution | 1 mm |
| Operating voltage | 18…30 VDC |
| Switching element function | NO/NC |
| Output function | PNP/NPN, analog output |
| Voltage output | 0…10 V |
| Current output | 4…20 mA |
| Communication protocol | IO-Link |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, CuZn, Nickel Plated |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
| Approvals | CE, cULus |
| Special features | Synchronization, Teach input, Resistant to chemicals |
