SKU: RU20U-Q12S-UN8X-V1141
20…200 mm · 82 x 12 x 12 mm, Q12 · NPN · Connector, M8 × 1
List price. Volume pricing available.

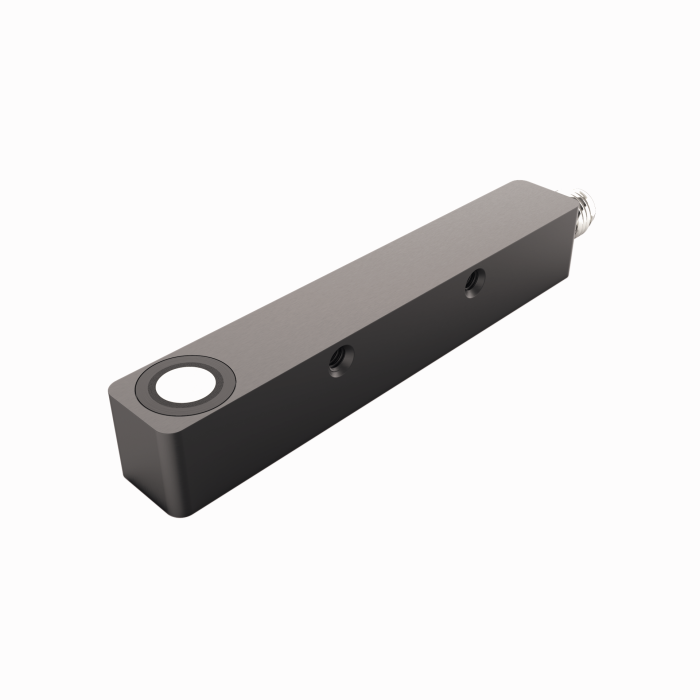

Ultrasonic Sensor — Diffuse Mode Sensor
The Turck Ultrasonic Sensor - Diffuse Mode Sensor # RU20U-Q12S-UN8X-V1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101506570 |
| eCl@ss-Code (V5.1.4) | 27272803 -/- Ultrasonic proximity switch |
| Customs tariff number | 9026204000 |
| Country of origin | DE |
| Weight | 23 g |
| Function | Proximity |
| Operating mode | Time of Flight |
| Design | Rectangular |
| Construction size | 82 x 12 x 12 mm, Q12 |
| Radiation direction | side |
| Range | 20…200 mm |
| Resolution | 1 mm |
| Operating voltage | 18…30 VDC |
| Switching element function | NO/NC |
| Output function | NPN |
| Communication protocol | IO-Link |
| Electrical connection | Connector, M8 × 1 |
| Housing material | Metal, AL, Anodized |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
| Approvals | CE, cULus |
| Special features | Compact |
