SKU: RU200-CP40-LIU2N8X2T
50…2000 mm · 166 x 40 x 40 mm, CP40 · NPN · Terminal chamber, Terminal box with cable gland
List price. Volume pricing available.

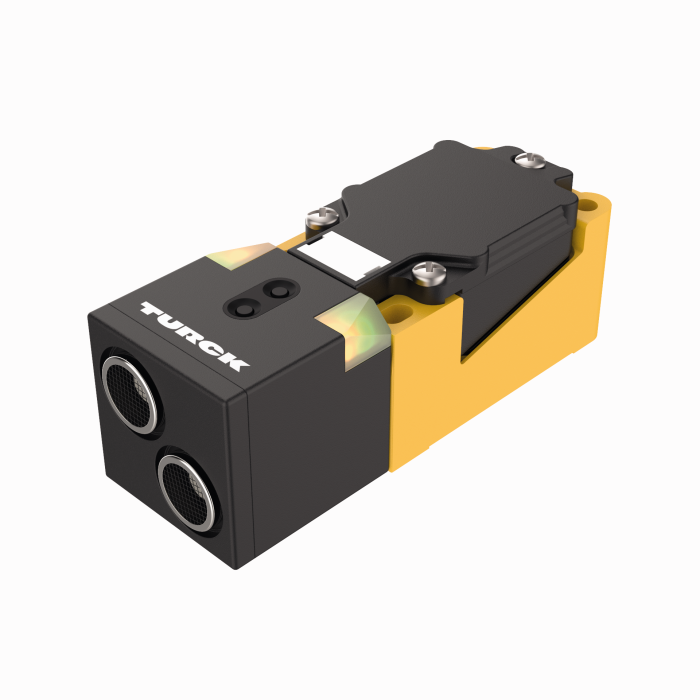

Ultrasonic Sensor — Diffuse Mode Sensor
The Turck Ultrasonic Sensor - Diffuse Mode Sensor # RU200-CP40-LIU2N8X2T is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101397482 |
| eCl@ss-Code (V5.1.4) | 27272803 -/- Ultrasonic proximity switch |
| Customs tariff number | 8536507000 |
| Country of origin | DE |
| Weight | 214 g |
| Function | Proximity |
| Operating mode | Time of Flight |
| Design | Rectangular |
| Construction size | 166 x 40 x 40 mm, CP40 |
| Radiation direction | straight |
| Range | 50…2000 mm |
| Resolution | 1 mm |
| Operating voltage | 15…30 VDC |
| Switching element function | NO/NC |
| Output function | NPN |
| Voltage output | 0…10 V |
| Current output | 4…20 mA |
| Electrical connection | Terminal chamber, Terminal box with cable gland |
| Housing material | Plastic, PBT-GF30-V0 |
| Ambient temperature | 0…+70 °C |
| Protection class | IP40 |
| Approvals | CE, cULus |
| Special features | Pushbutton |
