SKU: RM-106CA3E1-9N43B-B3M12
Ø 65 mm · Flange with mounting element · Blind hole shaft · Connector, 3 x M12
List price. Volume pricing available.

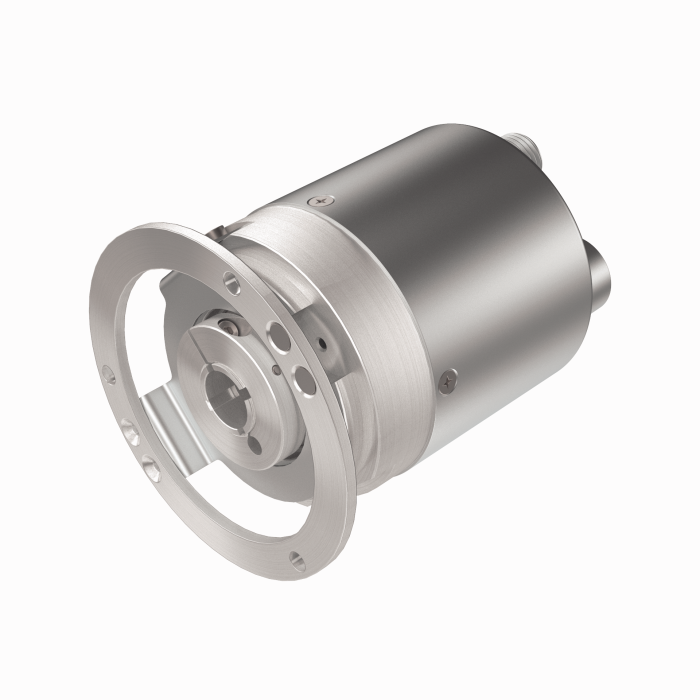

Absolute Rotary Encoder - Multiturn — Industrial Line
The Turck Absolute Rotary Encoder - Multiturn # RM-106CA3E1-9N43B-B3M12 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270501 -/- Encoder, absolute |
| Customs tariff number | 9031499000 |
| Country of origin | DE |
| Weight | 1100 g |
| Encoder line | Industrial-Line |
| Technology | Optical |
| Output type | Absolute multiturn |
| Shaft Type | Blind hole shaft |
| Shaft diameter D (mm) | 12.7 |
| Shaft diameter D | 0.5 in |
| Flange diameter | Ø 65 mm |
| Flange type | Flange with mounting element |
| Operating voltage | 10…30 VDC |
| Communication protocol | EtherNet/IP |
| Electrical connection | Connector, 3 x M12 |
| Housing material | Aluminium |
| Ambient temperature | -40…+80 °C |
| Protection class shaft | IP65 |
| Protection class | IP65 |
