SKU: RI360P4-DSU35-ELIU5X2-H1151
Flange without mounting element · Connector, M12 × 1
List price. Volume pricing available.

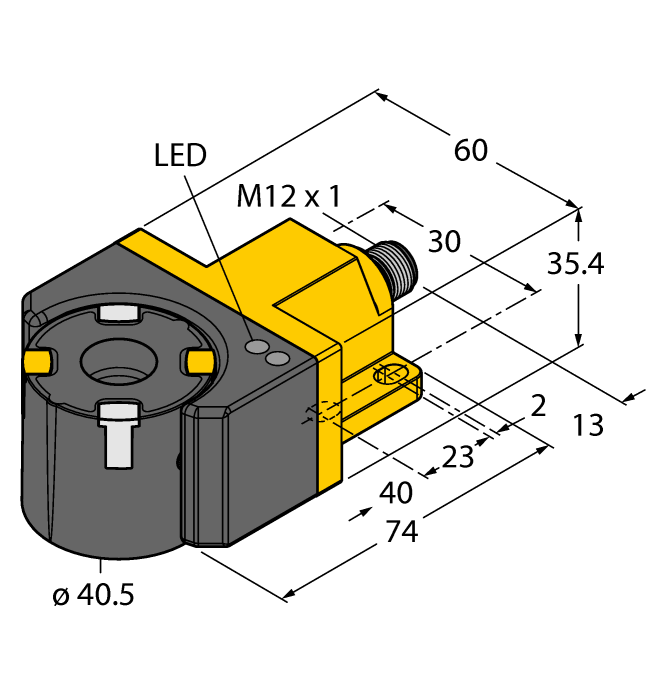

Inductive Angle Sensor — With Analog Output — Premium Line
The Turck Inductive Angle Sensor - With Analog Output # RI360P4-DSU35-ELIU5X2-H1151 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101460124 |
| eCl@ss-Code (V5.1.4) | 27270501 -/- Encoder, absolute |
| Customs tariff number | 8536200020 |
| Country of origin | DE |
| Weight | 148 g |
| Encoder line | Premium-Line |
| Technology | Contactless |
| Output type | Absolute singleturn |
| Construction size | 74 x 60 x 35.4 mm |
| Flange type | Flange without mounting element |
| Measuring range | 0…360° |
| Operating voltage | 15…30 VDC |
| Output function | Analog output |
| Voltage output | 0…10 V |
| Current output | 4…20 mA |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PP-GF30 |
| Ambient temperature | -25…+75 °C |
| Protection class | IP68/IP69K |
