SKU: RI360P2-QR20-9F16B-0.3-DT04-6PMB
Flange without mounting element · Blind hole shaft · Cable with connector, Deutsch DT04-6PMB
List price. Volume pricing available.
Miniature encoder — With J1939 Output — Premium Line

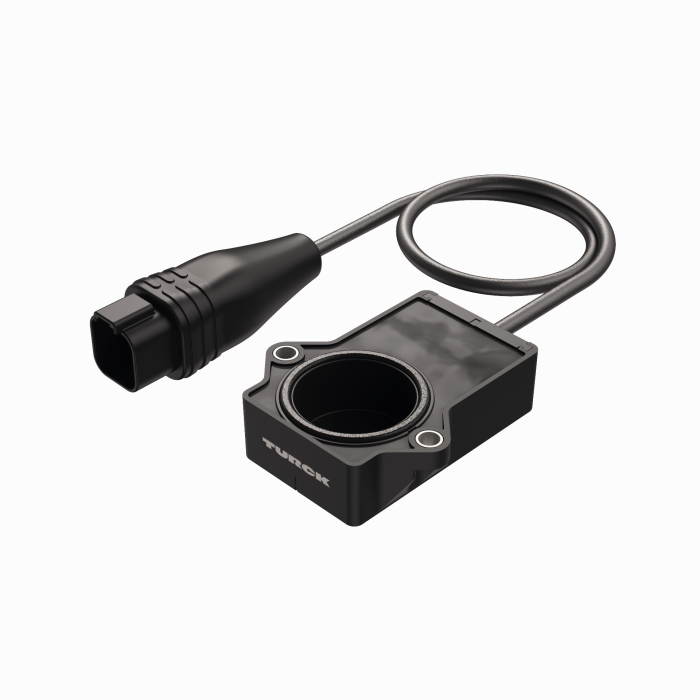

The Turck Miniature encoder - With J1939 Output # RI360P2-QR20-9F16B-0.3-DT04-6PMB is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101539127 |
| eCl@ss-Code (V5.1.4) | 27270501 -/- Encoder, absolute |
| Customs tariff number | 9026204000 |
| Country of origin | DE |
| Weight | 180 g |
| Encoder line | Premium-Line |
| Technology | Contactless |
| Output type | Absolute singleturn |
| Shaft Type | Blind hole shaft |
| Shaft diameter D (mm) | 6, 6.35 |
| Construction size | 71.6 x 62.6 x 20 mm |
| Flange type | Flange without mounting element |
| Measuring range | 0…360° |
| Operating voltage | 8…30 VDC |
| Communication protocol | SAE J1939 |
| Electrical connection | Cable with connector, Deutsch DT04-6PMB |
| Cable length (L) | 0.40 m |
| Housing material | Plastic, Ultem |
| Ambient temperature | -40…+85 °C |
| Protection class | IP68/IP69K |
